Help CenterDIN 1733 SG-CuAl8Ni2 Nickel Aluminum Bronze Welding Wire Rod
Related Products
-
5/32" 4.0mm AWS Er309 Stainless Steel Tig Welding Wire RodUS$ 5.3 - 5.85MOQ: 500 Kilograms -
1/8" 3.2mm AWS Er309 Stainless Steel Tig Welding Wire RodUS$ 5.6 - 5.85MOQ: 500 Kilograms
-
3/32" 2.4mm AWS Er309 Stainless Steel Tig Welding Wire RodUS$ 5.6 - 5.85MOQ: 500 Kilograms
-
5/32" 4.0mm AWS Er316 Stainless Steel Tig Welding Wire RodUS$ 3.75 - 4MOQ: 500 Kilograms
-
1/8" 3.2mm AWS Er316 Stainless Steel Tig Welding Wire RodUS$ 3.9 - 4.5MOQ: 500 Kilograms
| Name : Nickel aluminum bronze | |||||||||||||
| Physical & Mechanical Properties: | |||||||||||||
|
Solids-Temperature 1030°C Density 7.5kg/dm³ Elongation 30% Liquids-Temperature 1050°C Tensile Strength 430N/mm² Brinell Hardness 130HB | |||||||||||||

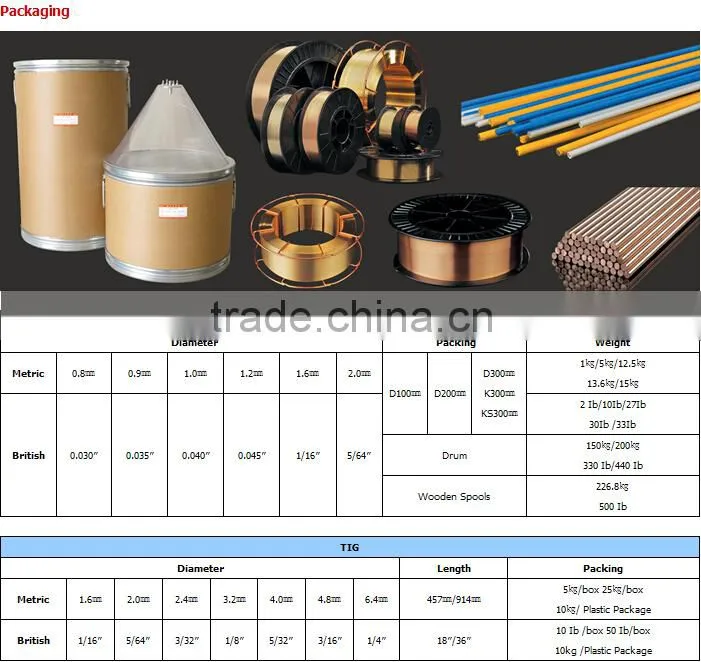

| Packaging | |||||||||||||
MIG |
Diameter |
0.8 - 2.0mm |
Packaging |
D100mm D200mm D300mm |
Weight |
1kg/5kg/12.5kg/13.6kg/15kg |
|||||||
0.030"-5/64" |
2lb/10lb/27lb/ 30lb/33lb |
||||||||||||
TIG |
Diameter |
1.6 - 6.4mm |
Length |
457mm / 914mm |
Packaging |
5kg/box 25kg/box 10kg/plastic package |
|||||||
1/16" - 1/4" |
18" / 36" |
10lb/box 50lb/box 10kg/plastic package |
|||||||||||
| Introduction & chemical composition: | |||||||||||||
| Recommended for the joining and overlaying of copper-aluminium alloy, aluminium coated steel in machinery and chemical industry as well as for iron welding in ship building.Also excellent for the join welding of brass tube and copper-aluminium that requires resistance to erosion. | |||||||||||||
Standard |
Class |
Alloy |
Cu |
Al |
Fe |
Mn |
Ni |
P |
Pb |
Si |
Sn |
Zn |
Other |
GB/T9460 |
SCu6327 |
CuAl8Ni2Fe2Mn2 |
bal. |
7.0-9.5 |
0.5-2.5 |
0.5-2.5 |
0.5-3.0 |
- |
max |
max |
- |
max |
max |
0.02 |
0.2 |
0.2 |
0.4 |
||||||||||
BS EN14640 |
Cu6327 |
CuAl8Ni2 |
bal. |
7.0-9.5 |
0.5-2.5 |
0.5-2.5 |
0.5-3.0 |
- |
0.02 |
0.2 |
- |
0.2 |
0.4 |
DIN 1733 |
|
SG-CuAl8Ni2 |
bal. |
7.5-9.5 |
1.5-2.5 |
1.0-2.5 |
1.8-3.0 |
- |
max |
max |
- |
max |
max |
0.02 |
0.2 |
0.2 |
0.4 |
||||||||||
Q: what is warranty time ?
A: 12 months from you got the cargo.
Q: what is delivery time / lead time ?
A: 30 days
Q: what is your minimum order ?
A: 500kgs
Q: what is your payment term ?
A: 30% down payment for order confirmation, 70% before shipment.
Q: can we visit your factory ?
A: yes you can at your free time.
Q: what is warranty time ?
A: 12 months from you got the cargo.
Q: what is delivery time / lead time ?
A: 30 days
Q: what is your minimum order ?
A: 500kgs
Q: what is your payment term ?
A: 30% down payment for order confirmation, 70% before shipment.
Q: can we visit your factory ?
A: yes you can at your free time.
