Electrostatic Precipitator(ESP)For Power Plant Diaphragm Valve For Dust Collector
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Fabric Dust Collector
Efficiency:
99.9%
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Hot Sale Easy to Install DMC Single Pulse Bag Filter/industrial Cyclone Dust Collector/dust ExtractorUS$ 1,000 - 20,000MOQ: 1 Set -
High Efficient Cyclon Dust Collector With ISO ApprovedUS$ 1,000 - 20,000MOQ: 1 Set
-
Industrial Dust Collector for Furnace/foundry/cement/grinding/welding/power PlantlUS$ 1,000 - 20,000MOQ: 1 Set
-
Industrial Cyclone Dust Collector, Cheap Price High Efficiency Dust CollectorUS$ 1,000 - 20,000MOQ: 1 Set
-
Factory Price Cement Pulse Bag Filter Dust Collector/ Nail Dust Remove System With Rotary ValveUS$ 1,000 - 20,000MOQ: 1 Set
Condition
New
Type
Fabric Dust Collector
Efficiency
99.9%
Minimum Particle Size
1 micron
Place of Origin
Shandong, China
Brand Name
huachuan
Model Number
LCM
Dimension(L*W*H)
depend
Weight
depend
Certification
CE ISO Certification
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas

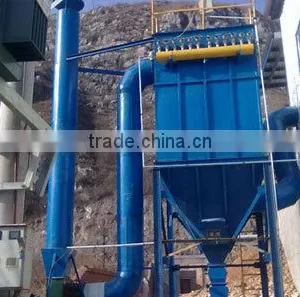

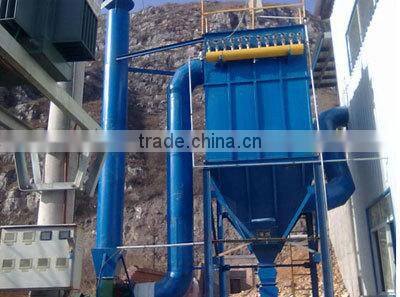

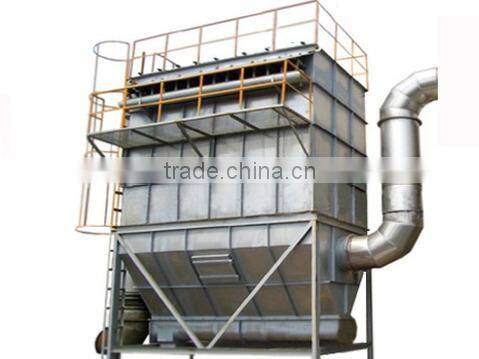

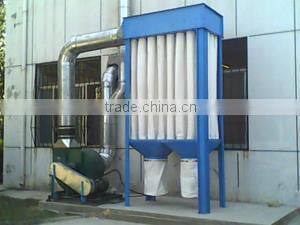

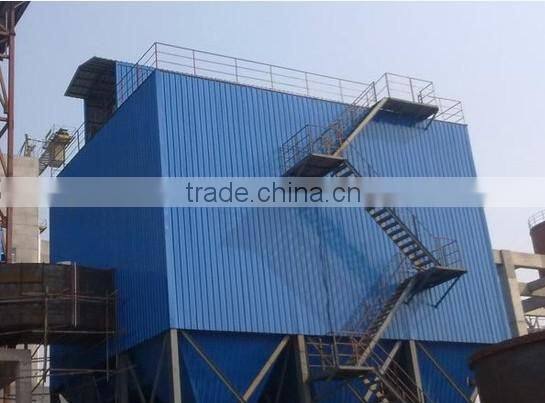

Electrostatic Precipitator(ESP)For Power Plant Diaphragm Valve For Dust Collector
Application:
1.Cement, 2.Mine, 3.Machinery, 4.Electricity,5.Textile mill,6. Chemical industry, 7.Metallurgy,8.Eteel industry,9.Woodworking machinery, etc.
Introduction:
Bag filter is a kind of dry dust filtering device. It applies to capture small, dry, non fibrous dust. Filter bag used textile filter cloth or non textile mat is made, using the fabric filter effect of dust filters, gas when dusty gas into the bag filter, large particles, major dust, due to the effect of gravity settling down, fall into the hopper, contains the fine dust of gas through the filter material, the dust were blocked, the purified gas. General high efficiency of dust removal filter is not enough.
Principle:
Filter separator is protecting air hole through filter layer, the dust particles in the air is filter layer intercept capture down, so as to realize the gas-solid separation device. Filter type dust removal device including bag-type duster and granule layer dust remover, the former usually use organic or inorganic fiber fabric made of filter bag filter layer, while the latter is more than the filtration layer of the adoption of different size particles, such as quartz sand, river sand, ceramsite, slag, etc. With powder repeat attached to the filter bag surface, the powder layer thickening and flow resistance value also increase; Pulse valve diaphragm issue instructions, around submerged pulse valve opens, the high pressure gas compressed air through the package, if there is no dust or small to certain degree, mechanical soot cleaning work will stop working.
| Type | MC24-II | MC36-II | MC48-II | MC56-II | MC60-II | MC72-II | MC84-II | MC96-II | MC108-II | MC120-II |
|
Filter area
|
19.3 | 29 | 38.6 | 45.1 | 48.3 | 57.9 | 67.6 | 77.2 | 86.9 | 96.6 |
| m² | ||||||||||
| Number of filter bag | 24 | 36 | 48 | 56 | 60 | 72 | 84 | 96 | 108 | 120 |
| Number of pulse valve | 4 | 6 | 8 | 7 | 10 | 12 | 14 | 16 | 18 | 20 |
| Filtering capacity | 2316- | 3480- | 4632- | 5412- | 5796- | 6948- | 8112- | 9264- | 10428- | 11592- |
| m³/h | 4632 | 6960 | 9264 | 10824 | 11592 | 13896 | 6224 | 18528 | 20856 | 23184 |
|
Size of filter bag
|
Φ130×2000 | |||||||||
| mm | ||||||||||
| Size | 1025×1678 ×3676 | 1425×1678 ×3676 | 1823×1678 ×3676 | 2010×1678 ×3676 | 2225×1678 ×3676 | 2625×1678 ×3670 | 3075×1678 ×3676 | 3949×1678 ×3676 | 4140×1678 ×3676 | 4389×1678 ×3676 |
| lengthxwidthxheight | ||||||||||
| mm | ||||||||||
| Efficiency% | 99-99.6 | |||||||||
|
Obstruction
|
120-150 | |||||||||
| mmH2O | ||||||||||
| Filtering velosity | 2-4 | |||||||||
| m/min | ||||||||||
| Inlet dust concentration | <15 | |||||||||
| g/m³ | ||||||||||
| Air pressure | 4 | |||||||||
| kg/cm2 | ||||||||||
| Air consumption | 0.08-0.34 | 0.13-0.5 | 0.17-0.67 | 0.19-0.76 | 0.21-0.84 | 0.25-1.01 | 0.3-1.18 | 0.34-1.34 | 0.38-1.46 | 0.42-1.68 |
| m³/min | ||||||||||
| Weight | 1133 | 1485 | 1496 | 1632 | 1730 | 1950 | 2230 | 2400 | 2698 | 2870 |
| kg | ||||||||||
