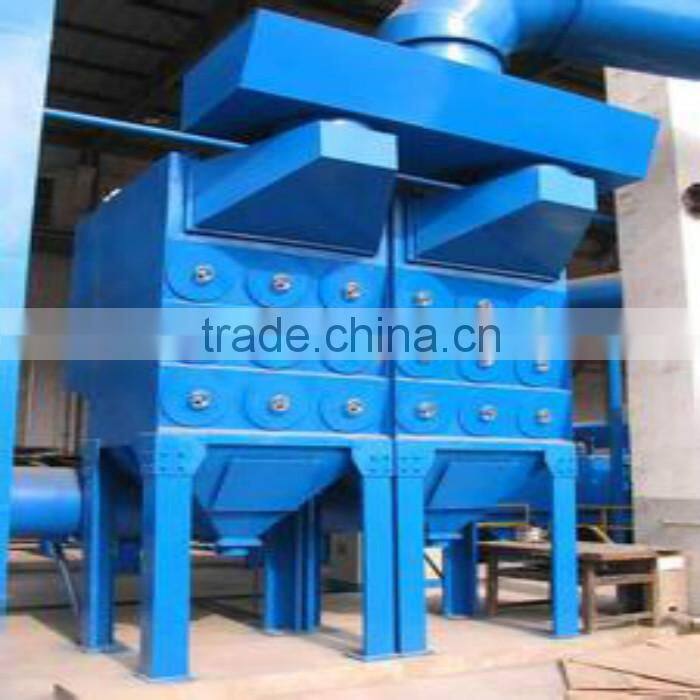

Industrial Dust Collector for furnace/foundry/cement/grinding/welding/power plantl
Other name :
Dust collector,Dust catcher,Bag filter,Bag house,Dust removal system,Dust Cleaning equipment ,Cyclone dust collector,Bag type dust collector,Industrial dust collector,Pulse dust collector.
Applications:
Furnace,Foundry,Cement plant,Grinding mill,Welding trades,Power plant ,Boiler.Shot blasting machie.
Parameter:
Model |
HC32-3 |
HC32-4 |
HC32-5 |
HC32-6 |
HC64-4 |
HC64-5 |
HC64-6 |
|
Air volume (m3 /h) |
6900 |
8930 |
11160 |
13390 |
17800 |
22300 |
26700 |
|
Total filter area (m2) |
93 |
124 |
155 |
186 |
248 |
310 |
372 |
|
Chamber(pcs) |
3 |
4 |
5 |
6 |
4 |
5 |
6 |
|
Quantity of filter bag(pcs) |
32 |
64 |
||||||
Total quantity of filter bag(pcs) |
96 |
128 |
160 |
192 |
256 |
320 |
384 |
|
Pulse valve |
Quantity |
3 |
4 |
5 |
6 |
4 |
5 |
6 |
Specification |
1 |
2 |
||||||
Specification of filter bag |
130(D.)*2450 |
|||||||
Filter material |
Based on flue gas properties |
|||||||
Filtration speed |
0.8~2.0(Adjustable) |
|||||||
Negative pressure |
less than 6000 |
|||||||
Resistance |
1470~1770 |
|||||||
Inlet dust concentration |
less than 200 |
less than 1000 |
||||||
Blowing pressure |
0.5~0.7 |
|||||||
Compressed air consumption |
0.27 |
0.37 |
0.46 |
0.55 |
1.2 |
1.5 |
1.8 |
|
Air-locking unit |
Adjustable |
|||||||
Screw conveyor |
No |
Adjustable |
||||||
Area of heat preservation |
26.5 |
34 |
41 |
48.5 |
70 |
94 |
118 |
|
Main Feature:
1. By use of impulse technology, the dust collector has a strong ability of cleaning dust, high efficiency, and is with low leakage rate, less energy and steel consumption, small areas. The equipment works stably, and wins good economic returns, which is applied for cleaning dust in several industries, such as metallurgy, building materials, machine, chemistry, electricity, light industries and so on.
2. The box is designed in a good seal. Excellent seal materials are used in making the inspected door. During its process, check it by using diesel and with low leakage.
3. At the opening of outlet is with compact layout and low resistance.
4. Adopt blowing pulse cleaning dust so as to make the cycle extended and the energy reduced. It can improve twice service life of filtering bags and valves.
5. Change the filtering bags without stopping the machine and overhaul has no effect on operating the equipments.
6. By putting bags on the upper part, checking level is improved.
Qingdao Huachuan Machinery Co.,Ltd locate at the seashore city Qingdao west coast in beauty,The company is a the gather the reseach,development ,produce.The industry that conducts for the intergral whole turns the entity,having to be engaged in to cast the machine for more than 40 years of the long but deep cultural deposits and the means,the management system of science.The conduct and actons casts the professional production factory use,technique,quality and the automation level etc.Of the machine profession to all be placed in the domestic to go together the advance level of industry.The prodcts are sold to all parts of the country,export th Souheast Asia,Egypt etc,enjoy good prestige among the masses of users.
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional
engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for
more than 20 years, competitive with good quantity.
7.Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment
charges is usually paid by your side, the charges will be rebounded when we have formal order.
8.As an honest seller, we always use superior raw material, advanced machines, skilled technicians to
ensure our products to be finished in high quality and stable feature.
9. Equipment warranty and After-sale Assurance Engineers available to service machinery overseas
( except force majeure, inappropriate operation and the quick-wear parts wears).
10. The equipment will pass the installment and test before delivery, after the quality is qualified,
we will disassembly the equipment, coating and deliver.
If you are interested in the dust collector, Please
let me know.
