Product Overview

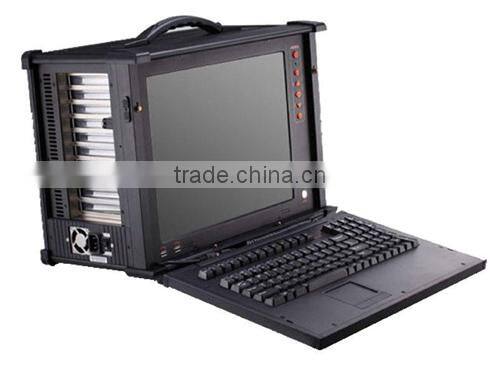

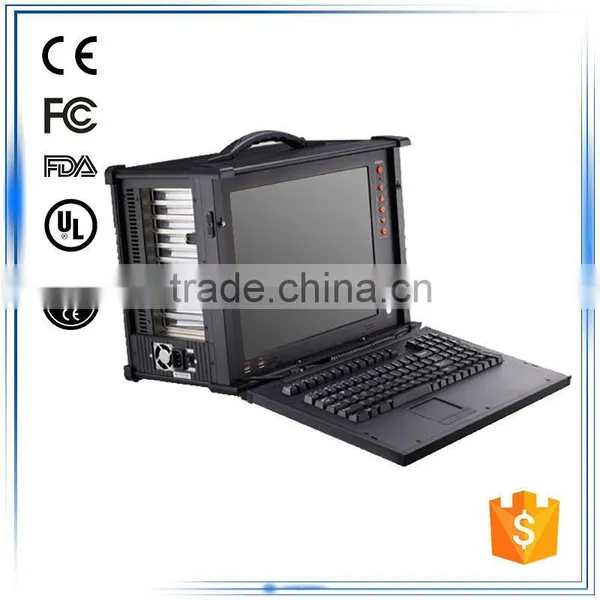

FSX-800 is a 15” portable computer which need to open by flip down. Its scalability is very superior.It has 10 PCI/PCI - E/ISA expansion slot,match Intel multi-core processors,high brightness LCD display,double aluminum chassis structure.It make hard anodic oxidation treatment on Surface,Prevent scratches and friction.At the Bottom of the chassis is equipped with two supporting feet,it used to adjust angle.The chassis is equipped with eight unique shockproof rubber mat at four corners. It has damping rubber ring in Hard disk and CD-ROM,is more adapt to use in a variety of bad environment.It provides the most cost-effective, durable, multi-standard platform for the application of a portable computer.It has been widely used in aerospace measurement and control, video conferencing, transportation, power, petrochemicals, railways and precision instruments and other fields.
Product features
1. Rugged Portable Computer need to open by flip down
2.Double aluminum alloy chassis structure design
3.10 expansion slot
4.15"High brightness LCD display,Resolution:1024X768
5.Integration ultra-thin DVD-RW,88 keys keyboard,touch pad
6.1 * 3.5″HDD,1 *2.5″HDD
7.Optional wireless network function
Product specification
System parameters |
Motherboard |
Reserved Micro ATX, ATX, E ATX motherboard installation space |
|
Input devices |
88 keys ultra-thin keyboard,touch pad |
||
cooling system |
2 * 8025 Chassis cooling fan |
||
Disk drives |
ultra-thin DVD-RW |
||
1*3.5"HDD,1*2.5 HDD |
|||
speaker |
Rated power 2W,The volume can be adjusted |
||
power supply |
AC 90~264V@50~60Hz |
||
ATX 350W |
|||
Expansion Interface |
10 PCI/PCI-E/ISA Expansion slot |
||
LCD panel |
Display |
15”XGA TFT LED |
|
Resolution |
1024x768 |
||
Brightness |
350cd/m2 |
||
Contrast |
800:1 |
||
Maximum color |
16M |
||
Display area |
304.13X228.10mm |
||
Reaction time |
8ms |
||
Pixel distance |
0.297x0.297 |
||
Maximum viewing angle |
(H)160/(V)160 |
||
Environmental parameters |
Woprk temperature |
0~50℃ |
|
Storage temperature |
-20~60℃ |
||
Relative humidity |
10~95%@40℃(no condensation) |
||
vibration |
50~500Hz,1.5G,0.15mm peak |
||
impact |
10G(11ms) |
Order information
FSX-800( 15" TFT LCD/Keyboard/Touchpad/110~220V AC 350W)
In addition to the standard products, also accept customers' special requirements of modified (for example add air outlet), also accept OEM/ODM orders
paper carton ocean transport
1 years tecnical service
Qingdao Fu shun Xing Electronics Technology Co., Ltd is a technology company specializing in the research, development and service of automatic intelligent control, visual image identification. The company promotes series products of portable computer, industrial tablet pc, reinforced anti-riot army-regulation computer, non-fan Embedded IPC, X-RAY foreign matter detector, basket washing machine, slicer and turnover washing machine. The products have been applied in the military industry, telecommunication, metallurgy, transportation, electricity, railway, aviation, communication, finance, network, medical treatment, machine manufacturing, precise instrument, food processing and other sectors extensively.
