17 inch Atom N2600 dual-core 1.6GHz 2G RAM linux operation system industrial panel pc

 Product Overview

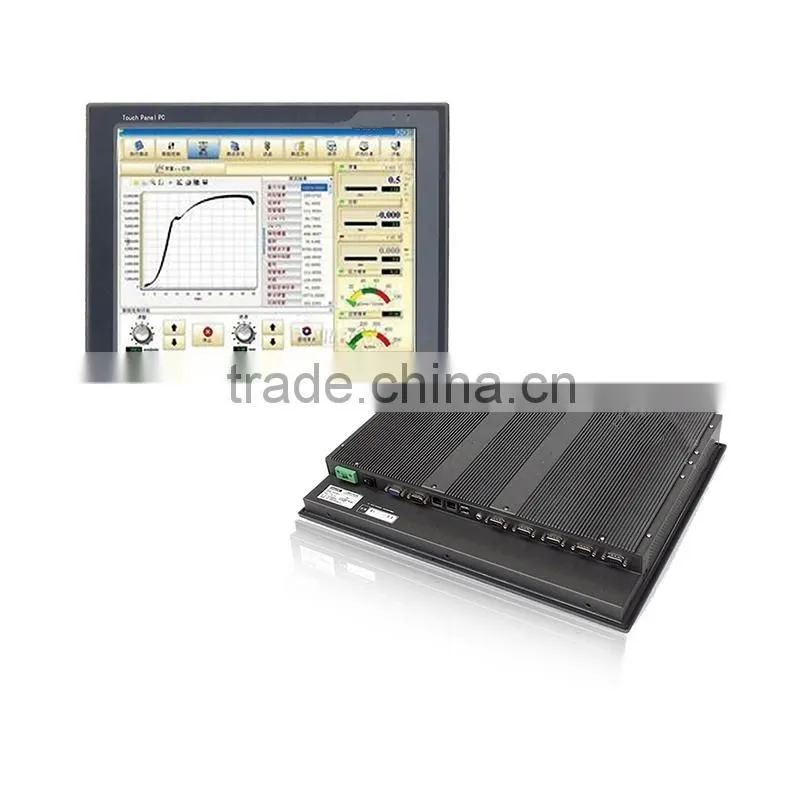

          FSX-P170-S is a touch-screen tablet computer solution designed for human-machine interface applications. It integrates the latest Atom N2600 dual-core 1.6GHz energy-saving processor, 2GB DDR3 memory, 1280x1024 resolution 17" LCD, and a high-temperature 5-wire resistance touch-screen. Powered by 12V DC, the unit has its internal heat well managed. It offers more and diversified storage options as it supports DOM/SSD and SATA 2.5" HDD. It features many I/O interfaces: five RS232, one RS232/485, two 10~1000M Ethernet ports, and two USB2.0 ports.

         FSX-P170-S is mounted in a panel-insertion manner whereby it is only needed to screw tight 4 clips, making it quite convenient to assemble and repair. The front panel is up to NEMA/IP65 protection standard, effective in preventing water jet droplets or water steam from entering the unit, thus safeguarding the normal operation of the unit. The unit is fanless by design and the dust entering the unit is kept to a minimum ensuring more reliable operation. The internal heat is quickly removed by the external surface radiation fins, making the unit more tolerant of the severe working condition. It is best suited for upper computer monitoring and control applications in plant automation, mechanical manufacturing, numerical control equipment, textile equipment, intellectual power, and food tracing sectors, etc.

        Compatible with mainstream operating systems and embedded operating systems such as Windows 2000, Windows XP, Windows VISTA, Windows 7, and Linux, FSX-P170-S can run customer application software or programs developed based on the above OS platforms. A powerful HMI is created after industrial automation configuration software has been set up.

Product features

1. Ultra-thin design, control the overall thickness at 50 mm.

2.17 inch true color LCD display, 1280x1024 resolution, the service life of the backlight up to 50000 hours.

3. Built-in atom N2600 dual-core 1.6 GHz low power processor, Intel ® NM10 chipset, support 224 MB Shared memory.

4. Equipped with rich industrial control which are commonly used interface,Maximum 6* RS232 serial port, and 2* 10 ~ 1000M Ethernet ports and 4* USB ports.

5. high-temperature 5-wire resistance touch-screen, Clicks up to 35 million times.

6. 12/24V DC power input, meet the industrial power supply.

7. Support with built-in wireless network card and Bluetooth device, a large area of aluminum fin active cooling design, Make sure the tablet can uninterrupted work in harsh industrial site.

Product specification

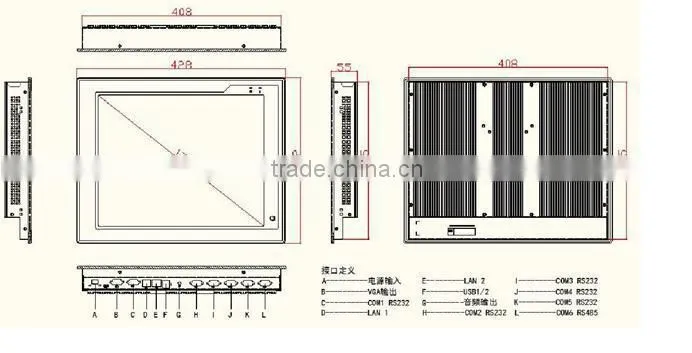

Outline dimensional drawing

Order information
