Home > Computer Products > Industrial Computer & Accessories > Industrial Computer > 7 Inch Embedded Board Computer With Win ce Industrial Panel pc

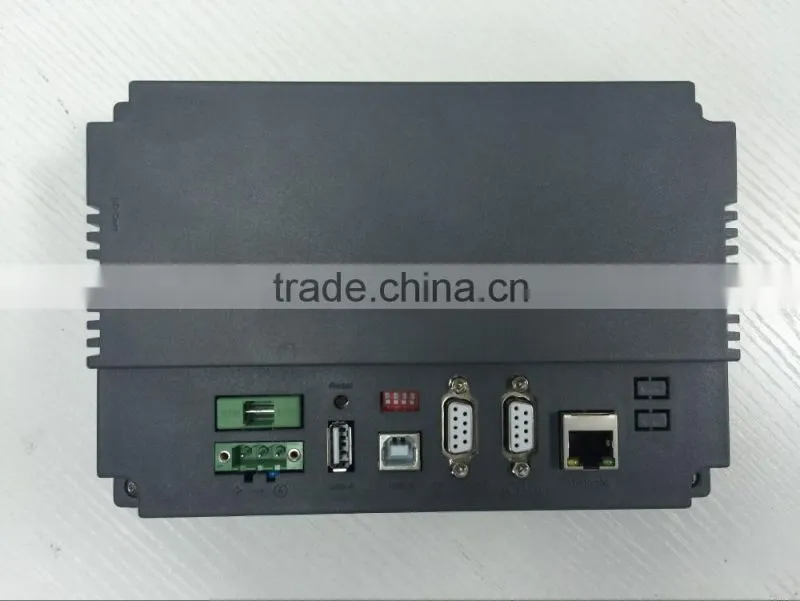

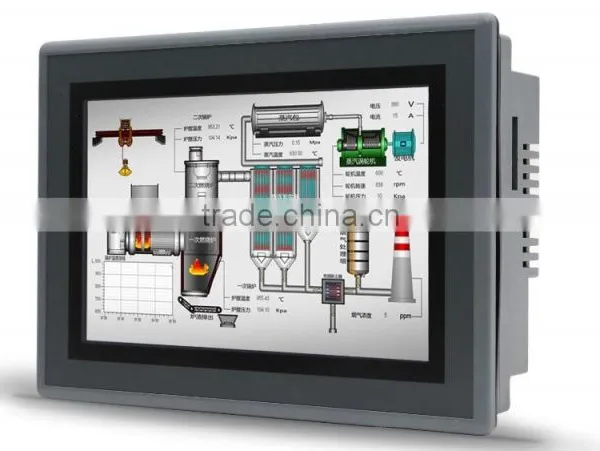

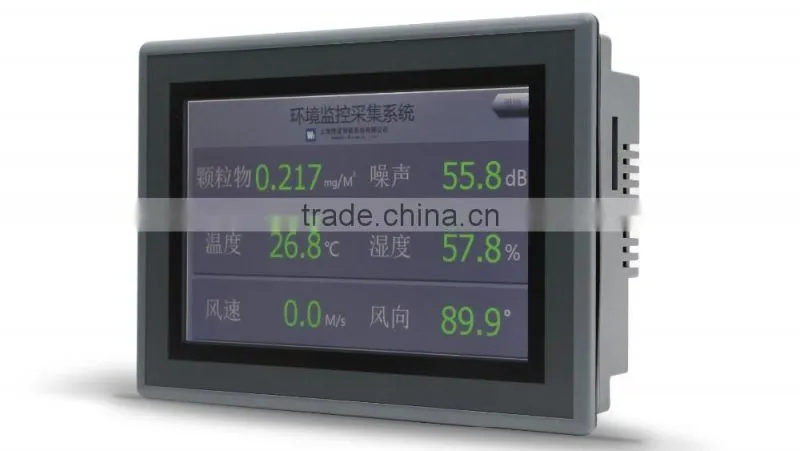

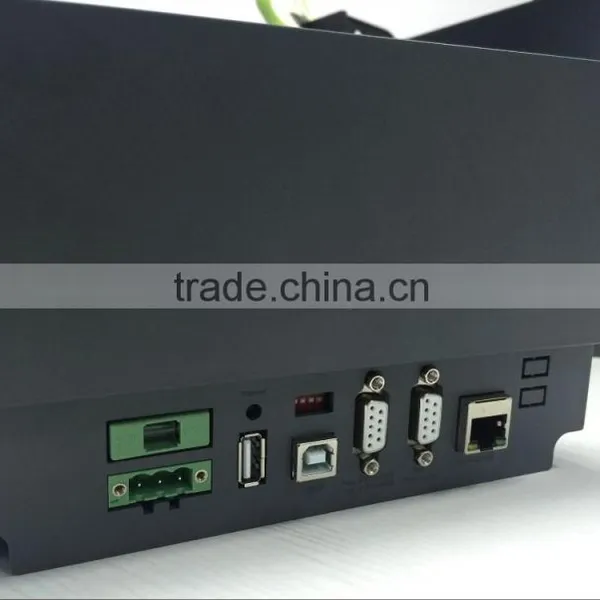

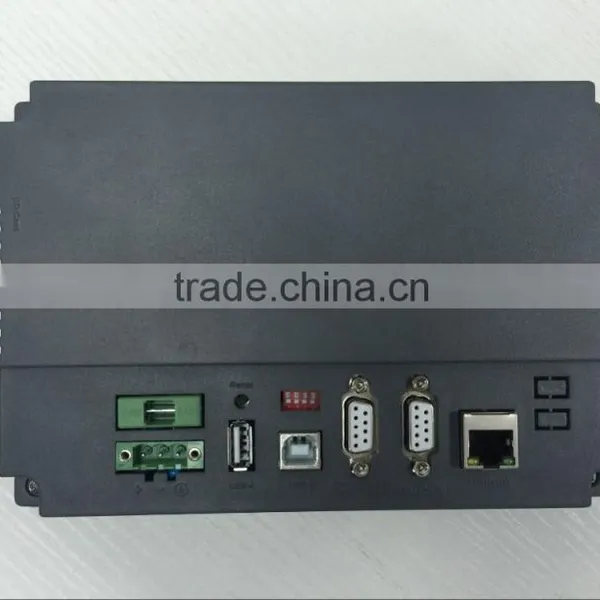

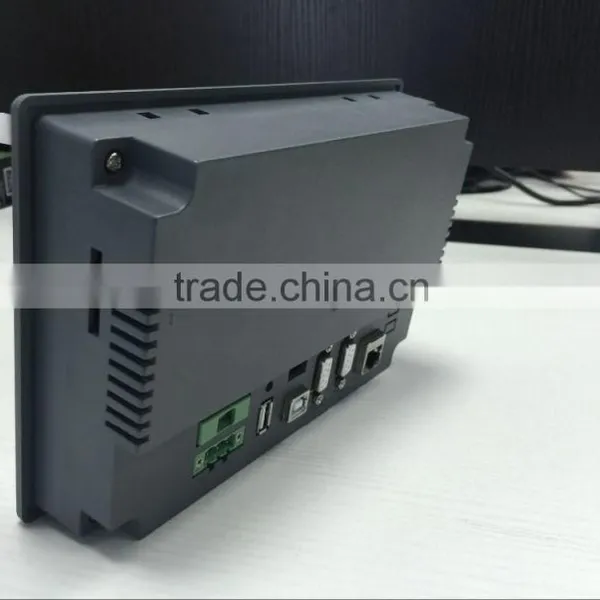

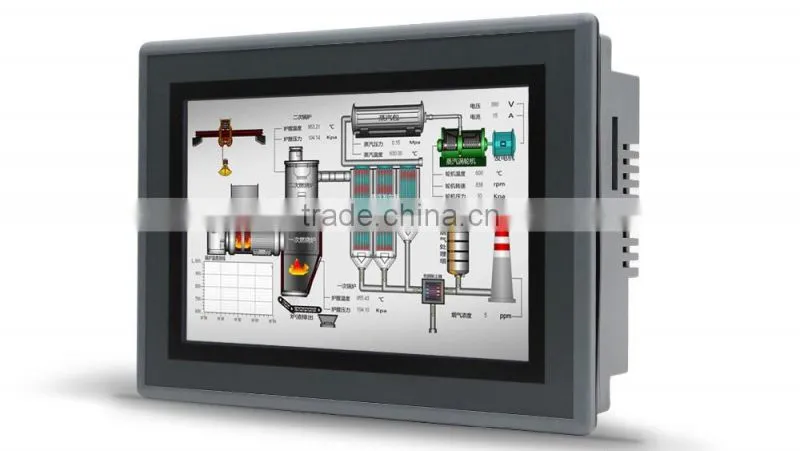

7 Inch Embedded Board Computer With Win ce Industrial Panel pc
US$ 135 - 228
MOQ: 1 Unit
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Panel PC
Brand Name:
FSX
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO PORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
7 Inch Touch Screen Industrial Embedded pc ARM9 Low-power Cpu LinuxUS$ 135 - 228MOQ: 1 Unit -
15 Inch TFT LED Atom N2600 Dual-core 1.6Hz 2G DDR3 RAM Industrial Touch Panel pc for IndustrialUS$ 655 - 675MOQ: 10 Sets
-
8"ARM Based Embedded Low-power A8 Cpu Win ce System Led Panel Computer Temperatur -10-60US$ 330 - 345MOQ: 10 Sets
-
12"TFT Atom N2600 Dual-core 1.6Hz DDR3 2G RAM Embedded Industrial Touch Screen Mini Computer pcUS$ 605 - 625MOQ: 10 Sets
-
10" ARM9 400MHZ Embedded Low-power Cpu sd Memory Card Extended 32G Win ce System Industrial Touch Panel pcUS$ 340 - 360MOQ: 10 Sets
Products Status
Stock
Type
Panel PC
Brand Name
FSX
Model Number
FSX-A70-L
Place of Origin
Shandong, China
Product Description
Product specification
| Product Specs | 7inch HMI based on ARM9 core | |
| Display Param | ||
| LCD | Size | 7 inch Widescreen |
| Technology | TFT-LCD | |
| Color | 18bit/262K | |
| Resolution | 800x480 pixels | |
| Backlight | LED | |
| Brightness | 300cd/m2 | |
| Lifetime | >20000H(25°C) | |
| Contrast Ratio | 500:1 | |
| Touchscreen Param | ||
| Touch | Technology | 4-Wire Resistive |
| Surface Hardness | >3H | |
| True Flat | YES | |
| Board Param | ||
| Board Param | Operating System | WinCE/Linux |
| CPU Type | 32Bit ARM9 | |
| CPU Clock | 400MHz | |
| RAM | 64MB DDR2 | |
| Flash | 256MB NandFlash | |
| Buzzer | YES | |
| Battery(RTC) | Lifetime > 3 years | |
| Ports Param | ||
| Ports Param | Serial Port | 2xDB9(RS232/RS485) |
| USB-Host | 1xUSB-V1.1 | |
| USB-Device | 1xUSB-V1.1 | |
| Ethernet | 1x10/100Mbps | |
| SD/MMC Slot | 1xSDHC/MMC | |
| HDMI Port | - | |
| Video Port | - | |
| Audio Port | - | |
| WiFi/3G | - | |
| General Param | ||
| General Param | Case Material | ABS Plastic |
| Case Dimension | 198.8x137.8x47.5mm | |
| Window Dimension | 190.2x129.2mm | |
| Power Supply | 20~28Vdc(24Vdc Rated) | |
| Power Consumption | ~5W(24Vdc) | |
| Operating Temperature | -10~50°C | |
| Storage Temperature | -20~65°C | |
| Humidity | 10~90%(No Condensing) | |
| Weight | ~0.7Kg | |
| IP Protection | Front NEMA4/IP65 | |
| Certifications | CE(EN61000-6-2/4) | |
Outline dimensional drawing
Packaging & Shipping
paper box air ocean transport
Our Services
1 years tecnical service
Company Information
Qingdao Fu shun Xing Electronics Technology Co., Ltd is a technology company specializing in the research, development and service of automatic intelligent control, visual image identification. The company promotes series products of portable computer, industrial tablet pc, reinforced anti-riot army-regulation computer, non-fan Embedded IPC, X-RAY foreign matter detector, basket washing machine, slicer and turnover washing machine. The products have been applied in the military industry, telecommunication, metallurgy, transportation, electricity, railway, aviation, communication, finance, network, medical treatment, machine manufacturing, precise instrument, food processing and other sectors extensively.
