China supplier prefabricated steel structure removable house
Brief Introduction:
Removable house is a kind of light steel for the frame to sandwich panels for the building envelope materials, standards for space module series combination of elements connected by bolts, the new concept of economic activities in the environmental housing. Can be easily and quickly be assembled and disassembled a temporary building to achieve a common standard, and establish a green energy-saving, fast and efficient architectural concept, so that a series of temporary housing into the development of integrated production, support of supply, inventory and can be Stereotypes used in many products in the field working.
Advantage:
- Seismic and wind resistance
- Moisture-proof and Ventilation
- Durable
- Quick transportation
- Quick installation

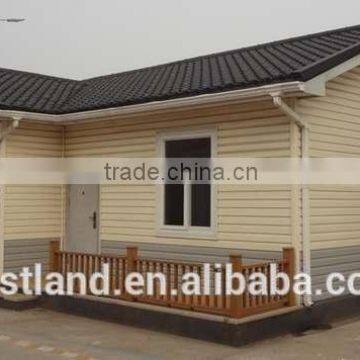

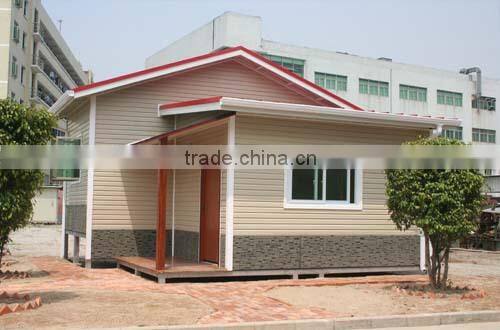

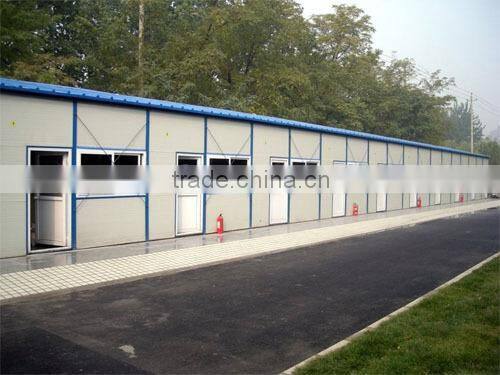

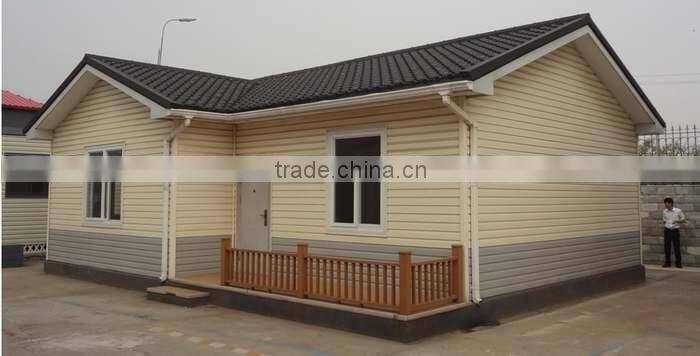

Removable House Show :
Packing and loading details:
1. All the materials are well packed before loading the container.
2. One 40’HQ can load about 80 square meter building.
3. All the materials are well fixed and tight to prevent the moving during the transport.
4. Loading plan will be designed before the materials loading to utilize the loading space and reduce the shipping cost
Specifications :
No. |
Sort |
Name |
Specification |
||
1 |
Specification |
length |
According to your needs |
||
2 |
Width |
According to your needs |
|||
3 |
Wall height |
According to your needs |
|||
4 |
|
||||
6 |
Standard accessory |
Wall |
75mm glass wool sandwich panel, 0.4mm color steel sheet and 60kg/m3 glass wool density inside. |
||
7 |
Roof |
Outside is 0.5mm color steel as the surface, middle is 75mm glass wool insulation. Inside is 9mm melamine board. Permitted live loading:1.5KN/m² |
|||
8 |
Base |
External wainscot is 0.3mm galvanized steel sheet metal, and insulation is glass wool. The supporting material is 16mm cement board and the inside decoration is 2mm rubber plastic flooring. Permitted loading: 3.0KN/m2 |
|||
9 |
Door |
Steel door, single door with dimension of 800*200mm, furnished with lock. |
|||
10 |
Window |
1) PVC sliding window, white color, with dimensions of 900*1100mm; Supplied with fly screen. 2) PVC casement window, white color, size is 700*1000mm. Supplied with fly screen. |
|||
11 |
Post |
Galvanized steel, material: Q345-Q235, 3mm thickness. Connection part is M12 high strength bolt. |
|||
12 |
Option |
Drainage system |
Provided plan, design and construction |
||
13 |
Electric system |
Provided plan, design and construction |
|||
15 |
Technical parameter |
Resistant temperature |
-20°Cto 50°C |
|
|
16 |
Wind load |
11 grade |
|
||
17 |
The resistant earthquake grade |
7fission activate. |
|
||
Four System Shows :
Factory Shows:
With an area of 160000 square meters, the new factory has been put into operation since Feb. 2014. The advanced automatic production facilities for the cold profiling of metals enable us to achieve high level in steel industry. Rigorous tests are implemented on raw materials, half- finished and finished products, which ensure us a continuous evolution of efficiency and quality standards.
Certificates:
