suspended ceiling metal grids 38mm

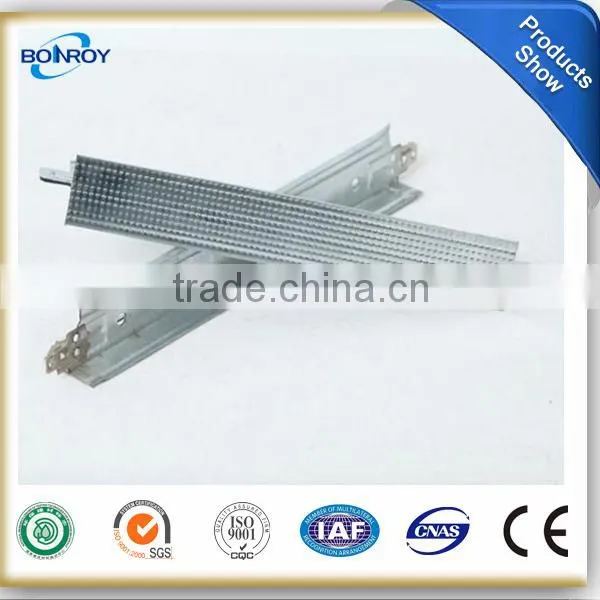

BONROY BRAND  SUSPENSION CEILING TEE GRID

Ceiling T-grid is rolled into moulds by galvanized steel coil and color-coated steel coil. It can be made into several specifications according to different kinds of ceiling. Owing to be beautiful, high-strength, anticorrosive and waterproof, Ceiling T-grid can suspend mineral fiber ceiling boards and pvc laminated gypsum boards in offices, shops and other places.

Its nature of fire-resistance is far more superior to the traditional interior decoration materials of wood and it is available for various kinds of ceiling panel in installation, like miner fiber board, gypsum board, PVC gypsum board and metal ceiling panel.

Raw Materials:

High-quality hot -dipped galvanized steel coil.

Specification

Normal Plane T-Grid / T-Bar System (NPT system )

Main Tee

Size: (Height×width×Length)

38×24×3600/3660/3750mm

32×24×3600/3660/3750mm

Thickness:0.26mm,0.30mm,

0.35mm,0.40mm

Cross Tee

size: (Height×width×Length)

26×24×1200/1220/1250mm

26×24×600/610/625mm

Thickness:0.26mm,0.3mm

Wall Angle

Size: (Height×width×Length)

24×24×3000mm

20×20×3000mm

Thickness:0.3mm,0.4mm

Narrow(Slim) Plane T-Grid / T-Bar System (SPT system )

Main Tee

Size: (Height×width×Length)

30×24×3600/3660/3750mm

Thickness:0.26mm,0.3mm

Cross Tee

Size: (Height×width×Length)

30×24×1200/1220/1250mm

30×24×600/610/625mm

Thickness:0.26mm,0.3mm

Wall Angle

Size: (Height×width×Length)

20×14×3000mm

20×14.5×3000mm

24×24×3000mm

Thickness:0.3mm,0.4mm

Exposed Groove T-Grid / T-Bar System: (EGB/W T system)

Main Tee

Size: (Height×width×Length)

42×15×3600/3660/3750mm

38×15×3600/3660/3750mm

32×15×3600/3660/3750mm

Thickness:0.3mm,0.4mm,

Cross Tee

Size: (Height×width×Length)

42×15×1200/1220/1250mm

42×15×600/610/625mm

38×15×1200/1220/1250mm

38×15×600/610/625mm

32×15×1200/1220/1250mm

32×15×600/610/625mm

Thickness:0.3mm,0.4mm

Wall Angle

Size: (Height×width×Length)

20×16×3000mm

20×16×3600mm

Thickness:0.3mm,0.4mm

Plane T-Grid / T-Bar with Alloy-End (ANPT system )

Main Tee

Size: (Height×width×Length)

38×24×3600/3660/3750mm

32×24×3600/3660/3750mm

Thickness:0.26mm,0.30mm,0.35mm,0.40mm

Cross Tee

size: (Height×width×Length)

26×24×1200/1220/1250mm

26×24×600/610/625mm

Thickness:0.26mm,0.3mm

Wall Angle

Size: (Height×width×Length)

24×24×3000mm

20×20×3000mm

Thickness:0.3mm,0.4mm

Alloy-end T-Grid / T-Bar System

Main Tee

Size: (Height×width×Length)

38×24×3600/3660/3750mm

32×24×3600/3660/3750mm

Thickness:0.26mm,0.30mm,0.35mm,0.40mm

Cross Tee

Size: (Height×width×Length)

26×24×1200/1220/1250mm

26×24×600/610/625mm

Thickness:0.26mm,0.3mm

Wall Angle

Size: (Height×width×Length)

24×24×3000mm

20×20×3000mm

Thickness:0.3mm,0.4mm
