Top grade professional sports curtain string lights
Description of sports curtain string lights

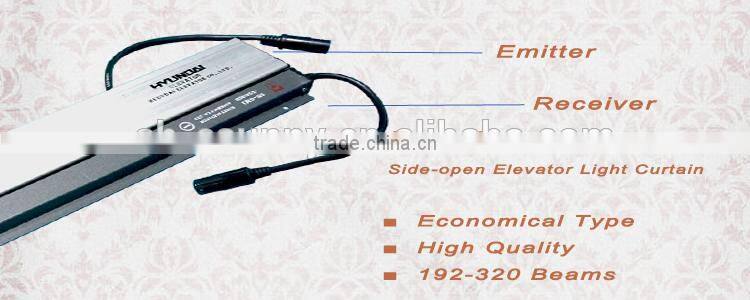

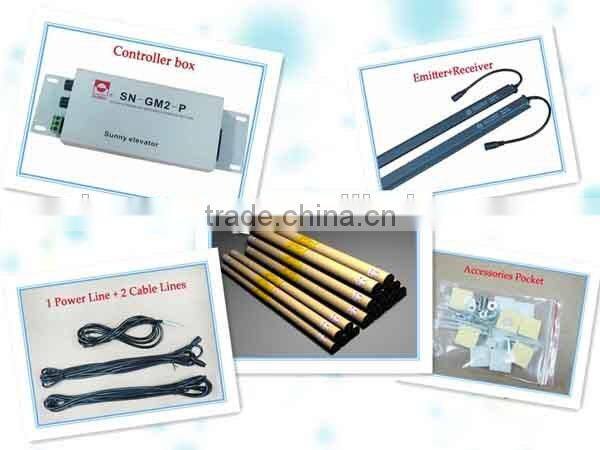

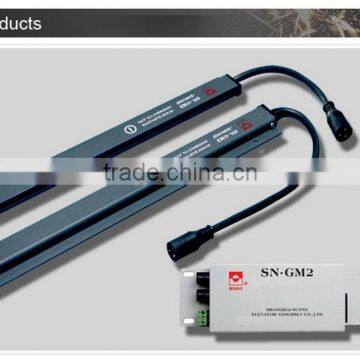

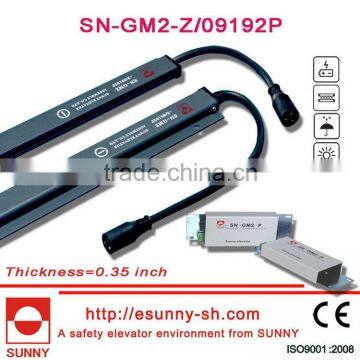

Sunny P series light curtain is a standand type, it has the same quality and specification as its H series, but no channel switch design. P series has two main features. First, fixed beam with model 384Pand 192P, flexible beam with model 640PG and 320PG. The operation principle of flexible beams. When above 300mm, the number of infrared beam will increase to 320 in order to reduce the blind zone caused by long distance. The second feature is failure diode tolerance. The receiver is composed of four single circuit boards, there are two LED in the top board. One is used for power indication which is always lighting in normal condition. The other only lights up when one or several diodes fail to work. It means the lights curtain is working under sickness. In three minutes, the broken diode will be removed automatically from funtion, and the elevator recovers.
Specification of sports curtain string lights
| Specification | Model | |||
| 192P (V) | 320PG (V) | 384P (V) | 640PG (V) | |
| No. of diodes | 64 | 64 | 128 | 128 |
| Max. beams | 192 | 320 | 384 | 640 |
| Min. beams | 192 | 192 | 384 | 384 |
| Distance between Two Diodes | emitter/ receiver 42/ 55 mm | emitter/ receiver 13/ 27 mm | ||
| Size | 1980 height x 30 width x 9/16/35 thickness mm | |||

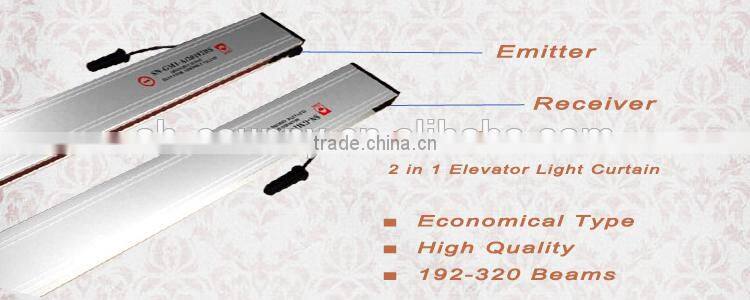

| Hitachi/ Mitsubishi/ Toshiba 2 in 1 light curtain available | ||||
| Light curtain Detecting Distance | 0~4.5 meters Customized to reach 20 meter | |||
| Light-proof | can work under the sunlight ≥100,000 lux | |||
| Installation Tolerance | Vertical ≤± 20mm, horizontal ≤ ± 10mm, angle ≤ ±7° | |||
| Working Temperature | -25°C~+65°C | |||
| IP | Ip33 circuit strip Ip63 controller box | |||
| Response Time | ≤80 ms | |||
| Cable Strength | 3C, 4.5M*2, 1 million times of life | |||
| EMC | En61000 GB/T17626 | |||
| Timeout Response | 25±5s Buzzer rouse | |||
| Power | ≤ 7.5 VA | |||
| Voltage Range | 85~264VAC 60/50Hz | |||

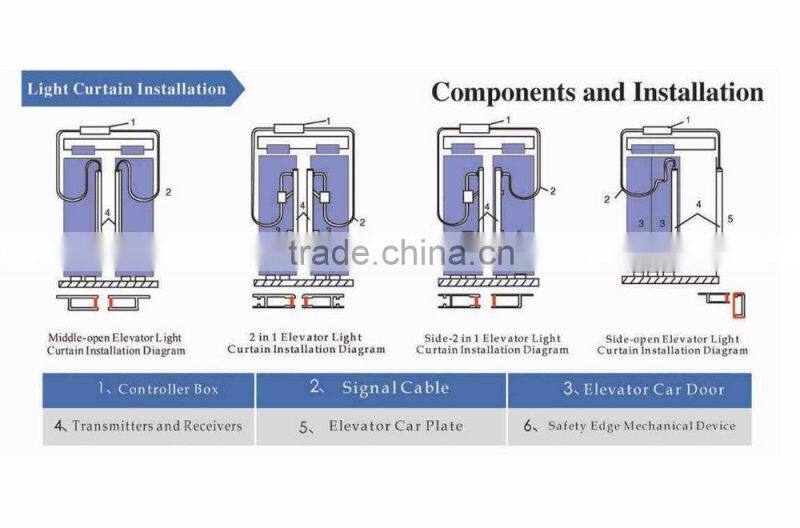

Installation

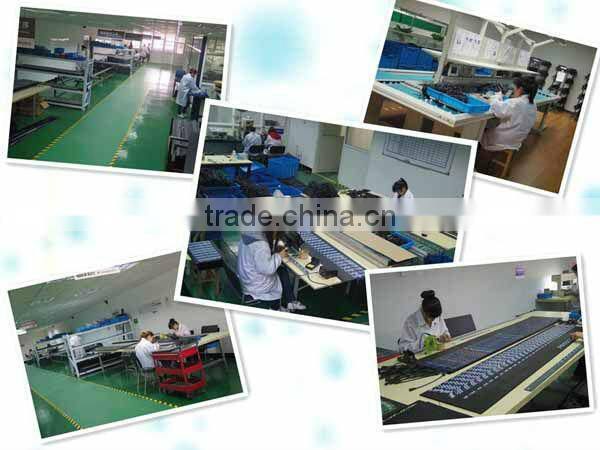

Shanghai Sunny Elevator Assembly Co.,Ltd, found in 1992, is a 24-year professional manufacturer specialized in designing and producing Opto-Electro-Mechanical products. otis elevator door parts Our main products are elevator light curtains, photoelectric switches and elevator buttons. used car lifts for sale The company has a complete set of equipment and instruments in terms of mechanism, sheetmetal, plastics, moulding, electric appliance,together with SMT line, which are respectively used in key parts of production, assembling, and quality detecion. Such full range of equipments is rare in the field and greatly increases our production flexibility and R&D capabilities. passenger elevator Twenty-four years' experience in the elevator industry ensures us to provide our clients reliable products, leading-edge technology and perfect after-sales service.
