Quality hot-sale high quality led light curtain wall
Description of high quality led light curtain wall

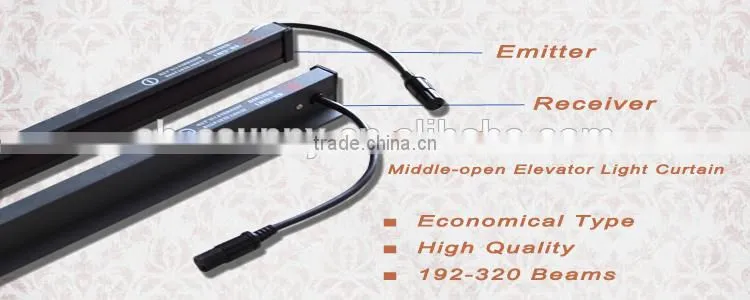

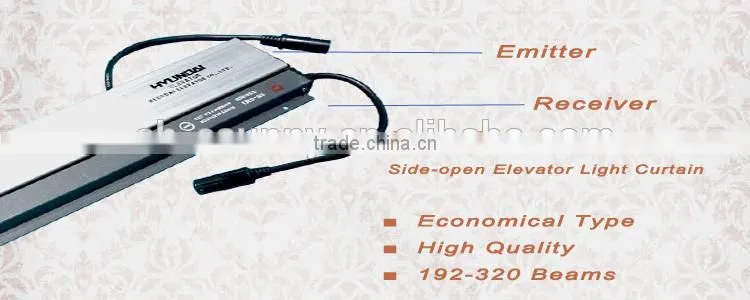

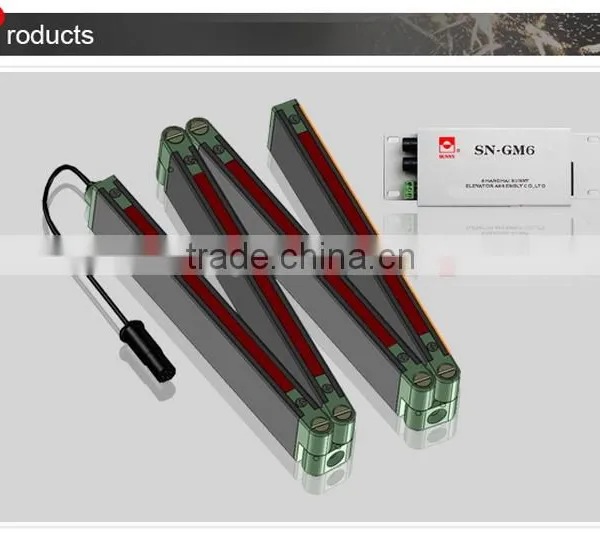

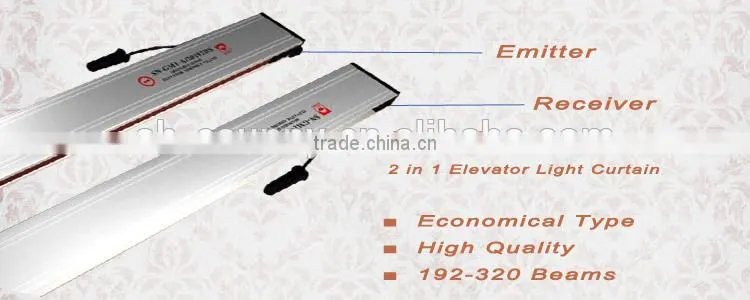

This is new invention SN-GM6 light curtain, to replace normal light curtain. It adopt soft connection socket method, not only can function as normal straight light curtain, also can be installed with different angle special usage to make a 3D protection area. Besides, its pakage is much smaller than normal one,lighter and easier to transportation and carrying.
Specification of high quality led light curtain wall
| Specification Data | Model | |
| 192P | 154P | |
| No. of diodes | 32 | 17 |
| Max. beams | 192 | 154 |
| Min. beams | 94 | 94 |

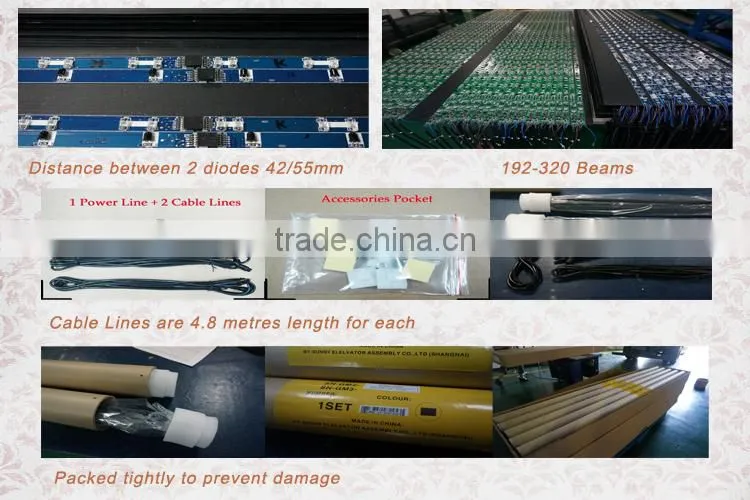

| Distance between Two Diodes | receiver /emitter 42/ 55 mm | receiver /emitter 115/ 128 mm |
| Size | 2250 height x 30 width x 12 thickness mm | |
| Light curtain Detecting Distance | 0~4.5 meters Customized to reach 10 meter | |
| Light-proof | can work under the sunlight ≥100,000 lux | |
| Installation Tolerance | Vertical ≤± 20mm, horizontal ≤ ± 10mm, angle ≤ ±7° | |
| Working Temperature | -25℃~+65℃ | |
| IP | Ip53 | |
| Response Time | ≤80 ms | |
| Cable Strength | 3C, 4.5M*2, 1 million times of life | |
| EMC | En61000 GB/T17626 | |
| Timeout Response | 25±5s Buzzer rouse | |
| Power | ≤ 7.5 VA | |
| Voltage Range | 85~264VAC 60/50Hz | |

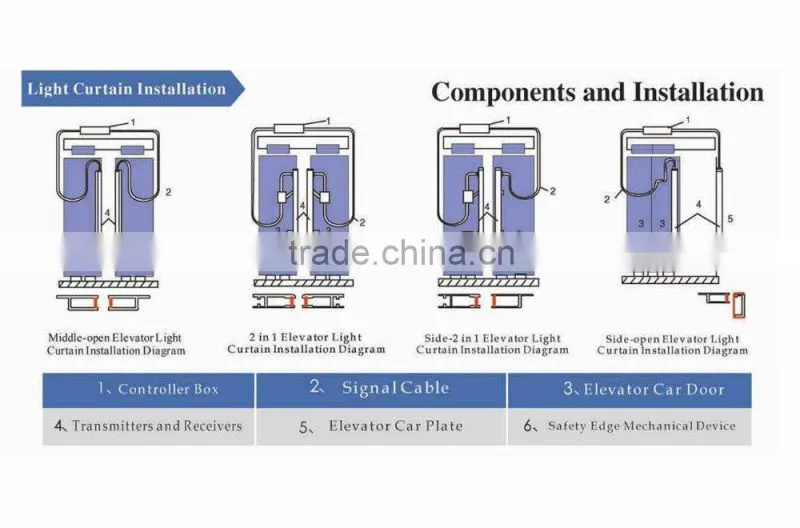

Installation

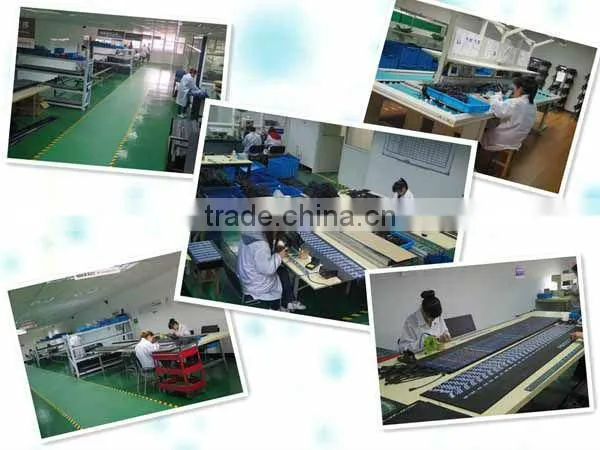

Shanghai Sunny Elevator Assembly Co.,Ltd, found in 1992, is a 24-year professional manufacturer specialized in designing and producing Opto-Electro-Mechanical products. otis elevator door parts Our main products are elevator light curtains, photoelectric switches and elevator buttons. used car lifts for sale The company has a complete set of equipment and instruments in terms of mechanism, sheetmetal, plastics, moulding, electric appliance,together with SMT line, which are respectively used in key parts of production, assembling, and quality detecion. Such full range of equipments is rare in the field and greatly increases our production flexibility and R&D capabilities. passenger elevator Twenty-four years' experience in the elevator industry ensures us to provide our clients reliable products, leading-edge technology and perfect after-sales service.
