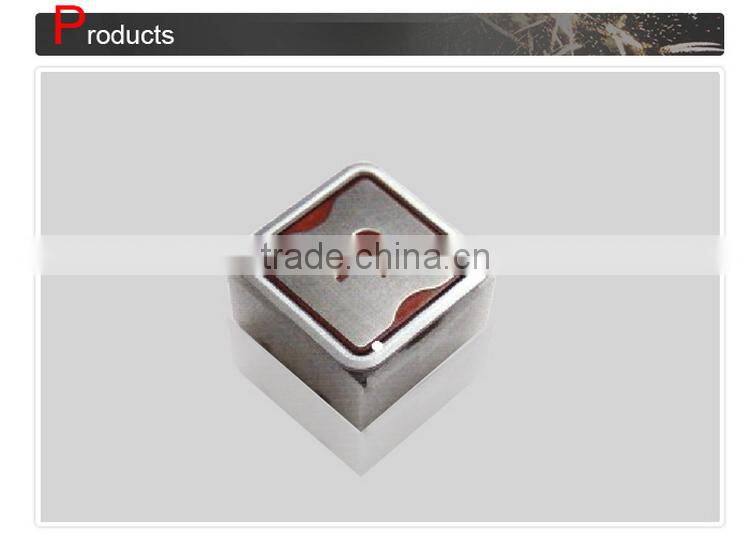

Economic hotsell elevator board push button
Description of elevator board push button
1. Special fashion design, marvelous look
2. Good touch sense, beautiful LED illumination
3. Easy installation
4. Button: stainless steel with special filing process, more beautiful, metal color
5. Code: engineer plastic, stainless steel process
6. Voltage: DC 12-24V
7. Thickness of installation plate: 1.5-3mm
8. Illumination Color: bright yellow, fashion orange, ruby red, ivory white, venetian blue, emerald green.
9. Switch life time: 3,000,000 times
Specification of elevator board push button
| Brand Name | SUNNY |
| Model Number | SN-PB132 |
| Certification | CE,ISO9001 |
| Place of Origin | China |
| Shape | Square |

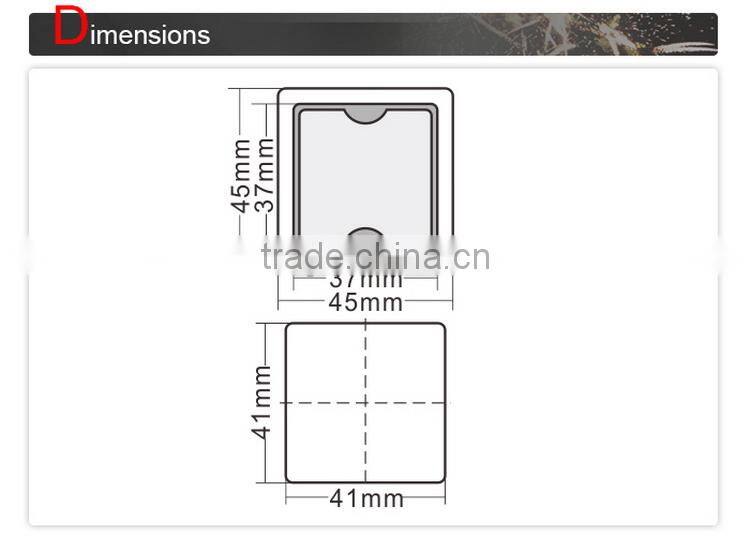

| Size | 45x45 mm |
| Current | 50 mA |
| Color | Red,Green,White,Yellow,Orange,Blue |
| Votage | 12-24V |
| IP code | IP64 |
| Tact Switch | Omron |
| Conformity | EN81-70 |
| Pushing pressure | 2-3.5N |
| MOQ | 100 pcs |
| Price | 3.85USD/Pcs (Negotiable depending on quantity) |
| Payment Terms | T.T, Western Union, Paypal, L.C |
| Supply Ability | 500pcs/month |
| Delivery Time | 15 working days |
| Packaging Details | Wooden box |
conformity |
EN81-70 |
voltage |
24DCV(standard), 12DCV,48DCV ±10% |
lighting color |
red (standard),blue, white, orange, yellow(optional) |
current |
50mA |
inner switch brand |
imported OMRON-5 series |
Pushing pressure |
2-3.5N |
Life time |
more than one million times |
temperature |
-10~50°C |
IP |
IP64 |
HUMIDITY |
45%~90% |
Shanghai Sunny Elevator Assembly Co.,Ltd, found in 1992, is a 24-year professional manufacturer specialized in designing and producing Opto-Electro-Mechanical products. Our main products are elvator light curtains, photoelectric switches and elevator buttons otis push button . elevator push button kone spare parts . otis elevator call button The company has a complete set of equipment and instruments in terms of mechanism, sheetmetal, plastics, moulding, electric appliance, lift push button together with SMT line, which are respectively used in key parts of production, assembling, and quality detecion. Such full range of equipments is rare in the field and greatly increases our production flexibility and R&D capabilities. Twenty-four years' experience in the elevator industry ensures us to provide our clients reliable products, leading-edge technology and perfect after-sales service.
Shanghai Sunny has been entitled shanghai high-tech enterprise for nine consecutive years and our self-developed SN-GM1 series infrared light curtain obtained national invention patent(NO.ZL01105213.9). It also obtianed UL Certification(file No.E230770) in 1992, and CCC Certificationin 2010,which are unique among our competitors. Our light curtain and photodiode switch series both have been authorized CE certification. In 2007, the platform screen door in Shanghai Metro line and its northen extension of line one initially adopted infrared light curtain device provided by our company. Our long –time clients include Hyundai (served as OEM), Hitachi,Otis, Mitsubishi, KONE, Guangri Elevator, Wittur etc.
