Home > Transportation > Elevator & Funicular Car > Parts for Elevator & Funicular Car > Infrared Elevator Light Curtain SN-GM1-Z/35192H/Elevator Door Parts/2 in 1 Light Curtain Sensors/infrared Sensors

Infrared Elevator Light Curtain SN-GM1-Z/35192H/Elevator Door Parts/2 in 1 Light Curtain Sensors/infrared Sensors

Name: Infrared Elevator Light Curtain SN-GM1-Z/35192H/Elevator Door Parts/2 in 1 Light Curtain Sensors/infrared Sensors
Brand: sunny
SKU: 122590785
Availability: InStock

Infrared Elevator Light Curtain SN-GM1-Z/35192H/Elevator Door Parts/2 in 1 Light Curtain Sensors/infrared Sensors thumbnail-1

Infrared Elevator Light Curtain SN-GM1-Z/35192H/Elevator Door Parts/2 in 1 Light Curtain Sensors/infrared Sensors photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

sunny

Model Number:

SN-GM1-Z/35192H

Contact Supplier Request Quote Chat Now

Shanghai Sunny Elevator Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name sunny

Model Number SN-GM1-Z/35192H

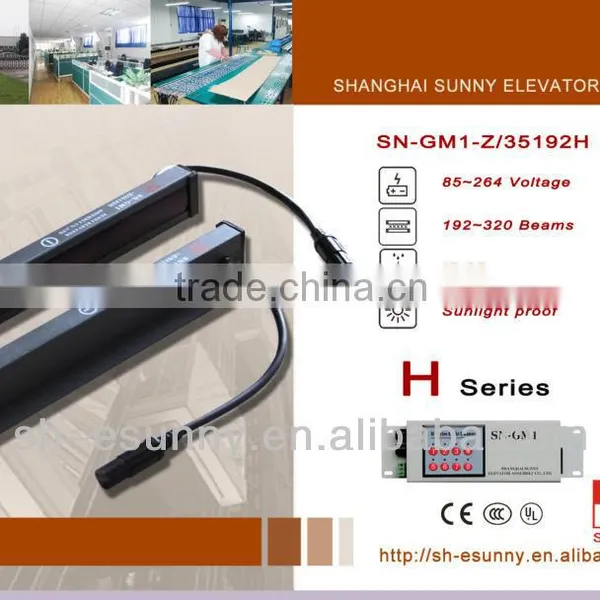

Infrared Elevator Light Curtain/ 2 in 1 light curtain sensors/infrared sensors

TYPE: SN-GM1-Z/35192H

Specification

TECHNICAL SPECIFICATIONS
Model	SN-GM1-Z/35192H
Number of Diode	64

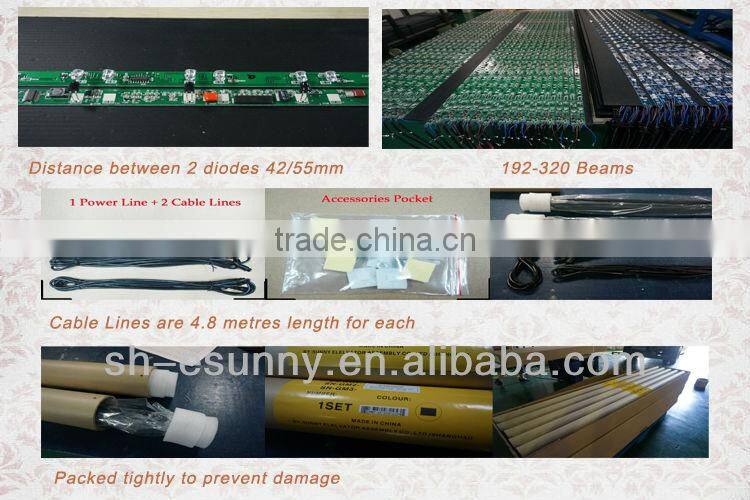

Distance Between Diodes	42mm middle/ 55mm side
Maximum Beams	192
Minimum Beams	192
Highest Beam	1800±50mm
Lowest Beam	17±5mm
Size	30(width) * 35( thickness) * 1980mm (height)
Detecting Distance	0~~~~4,000mm + 500mm (standard), 20,000mm for custmization
Vertical displacement at 0 mm	≤ ±20mm
Horizontal displacement at 0 mm	≤ ±10mm
Angular displacement at 0 mm	≤ ± 8°
Cable reliablity	3C passed three-core flexibility wire, tensile resistance < 15N, endure 1,000,000 time twist, length 4.5M ±10%
Light immunity	≥ 100,000 lux
Immune to Sun Light and Refelection	Yes
EMC Compliance	Emission to EN 12015 and Immunity to EN 12016
CE Compliances	YES
UL Compliances	Yes! UL 508,17th Edition, Jan,1999. File NO. E230770
Operating temperature range	-25----+65
IP Rating	IP63detector IP65 controllerbox
Vibration Test	5-55HZ, amplitutde 0.19mm, 20min
Response Time (NPN or PNP)	NO
Response Time ( Relay )	≤ 80 ms
Timeout function	30 ± 5 s
Power Consumption	≤ 7.5 VA
Signal Output	Relay Output
Power Indicator	YES, LED Light
Status Indicator	YES, LED Light
Buzzer in Receiver	active if anything block the light beam for continuous 25 second
Voltage Tolerance	80~240V 60/50HZ

Description

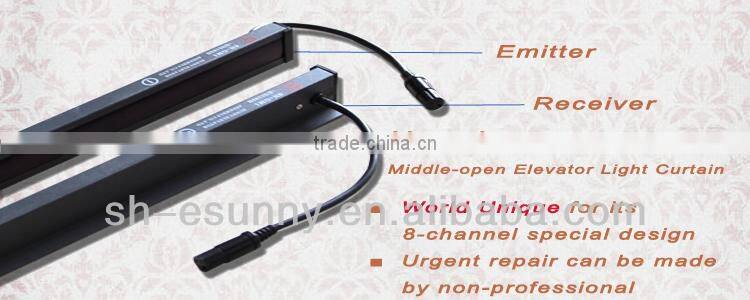

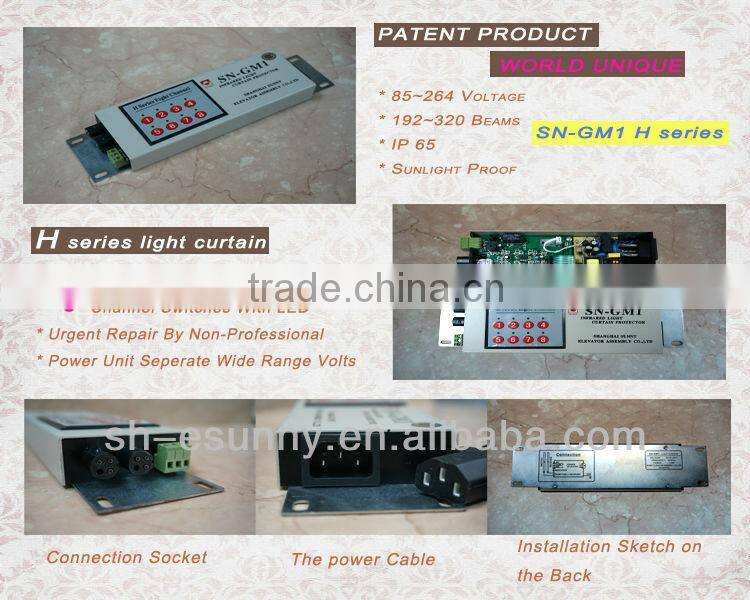

SUNNY elevator light curtain H series, which has obtained national invention patent (No. ZL01105213.9), is widely used in luxury elevator and is famous for its 8-channel special design, which means anyone can make urgent repair by pushing the blinking switch on the control box to avoid great inonvenience to the elevator users when some diode is broken.

SUNNY light curtain, with 64 pairs of diode inside, 192 beams and 10 ms quick response time, is much safer and much more reliable than the product in the market, which ensure the safest protection area even the door is nearly closed ( door width is under 300mm).

Production

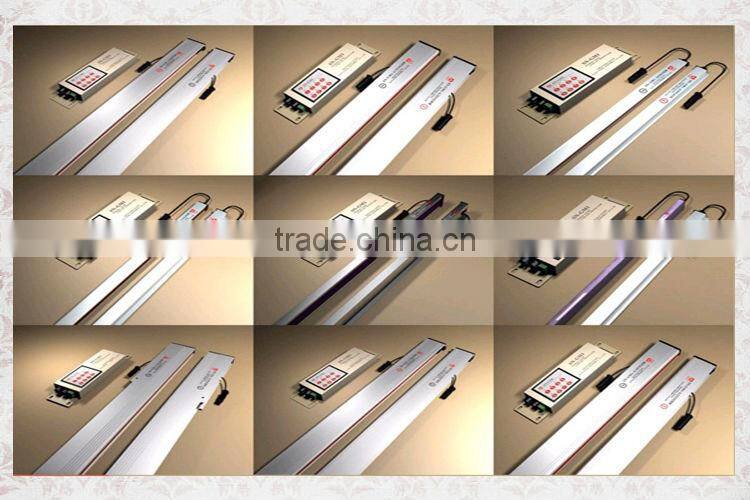

Family Product

Commercial Terms

1.P ayment type----TT/Western Union/L/C/Paypal/Aliexpress

2. a .By air (DHL / Fedex / TNT/ UPS / EMS)
b.By Sea

About us

Shanghai Sunny Elevator Assembly Co.,Ltd, found in 1992, is a 22-year professional manufacturer specialized in designing and producing Opto-Electro-Mechanical products. Our main products are elevator light curtains, photoelectric switches and elevator buttons. The company has a complete set of equipment and instruments in terms of mechanism, sheetmetal, plastics, moulding, electric appliance,together with SMT line, which are respectively used in key parts of production, assembling, and quality detecion. Such full range of equipments is rare in the field and greatly increases our production flexibility and R&D capabilities. Twenty years' experience in the elevator industry ensures us to provide our clients reliable products, leading-edge technology and perfect after-sales service.
