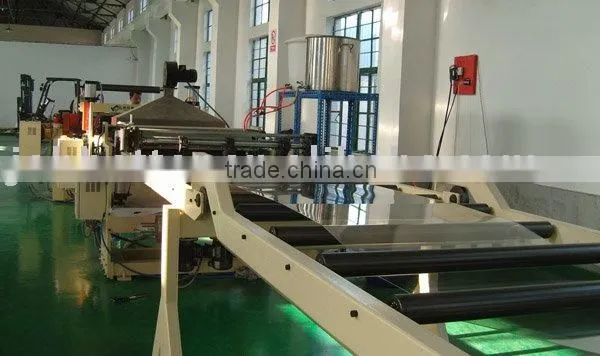

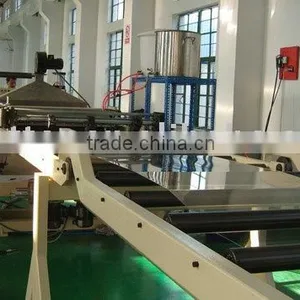

PET sheet machine,
PET sheet extrusion line for PET thermoforming sheets. Sophisticated technology.
PET is used widely in plastic processing field because it has good transparent, neutral in taste, high impact resistance,
easy recyclability and other excellent properties.
Usually, PET sheet extrusion line have up to three layers and two or three extruders. While the center layer of such
products can contain a high percentage of recycled material, the outer layers consist of virgin resin combined with
antiblock additives. Common are also structures with PETG, a modified, uncrystallizable PET, on the outer layers. These
are known as G/A/G structures.
Basic Parameter:
Sheet Thickness Range: 0.2-1.2mm
Range of Finished Width: 500-1800mm ( wider on Request )
Processed Polymers: APET, PETG and Special Coex structures, EVOH and PE.
Line configuration:
Raw material handling:
Feed System: Individual Auto-vacuum Loaders
Material Drying: Individual Designed
Volumetric or gravimetric dosing: Up to 4 Components Per Extruder
Extrusion System:
Type of Extruder: Single Screw or Twin Screw Extruders
Size of Extruder: Single Screw 65, 90, 120, 150
Twin Screw 52, 65, 75, 95
Melt Pump: Standard for PET
Flat T-dieManual or Automatic Die,Cloth-hanger flow-channel
Downstream:
Calendering type: Inclined or Horizontal Type
Calendering rollers: 320mm,450mm,600mm
Roller temperature control: Chiller and water thermoregulators
Edge trimming and recycling:
Trimming type: With Blades or Motor Driven circular Knives
Grinder: Inline grinding and refeeding directly
Take off Unit:
Roll Size of take-off: 200mm,250mm
Rubber and Steel rollers
Winder system
Winder type: Jumbo roll winders(electric drives)
Turret winders
Normal winder
Fully automatic winders
Automation: JOBBETTER PLC control system equipped with famous electrical parts in the world.
