Panvotech High Range Wireless Microphone

Name: Panvotech High Range Wireless Microphone
Brand: Panvotech
SKU: 122573455
Availability: InStock

US$ 160 - 180 MOQ: 100 Sets

Key Specifications

Brand Name:

Panvotech

Model Number:

PU-836

Style:

Other, Handheld & headset microphone

Shenzhen Panvotech Audio Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Brand Name Panvotech

Model Number PU-836

Style Other, Handheld & headset microphone

Communication Wireless

Use Other, Stage performance, speech, club, auditorium,Ballroom, karaoke, etc.

Place of Origin Guangdong, China

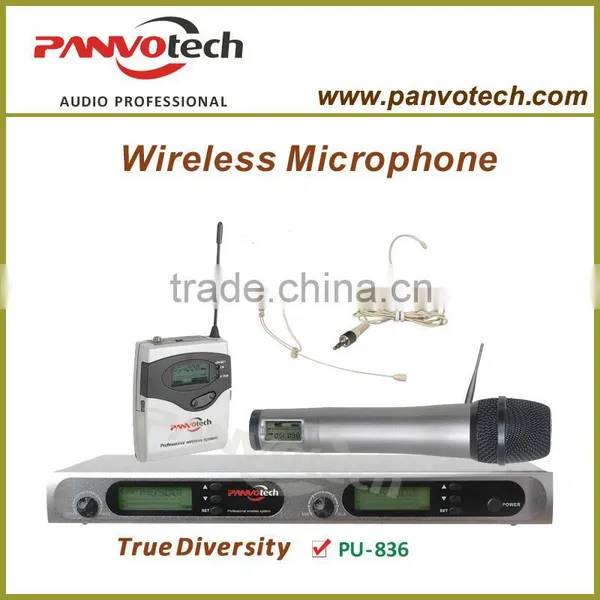

Panvotech high range wireless microphone

Key Features

UHF dual channel wireless headset microphone
Full metal receiver case & transmitter body.
True diversity technology offers superior reception quality.
PLL (phase-locked loop) ensures optimum performance.
Backlit LCD screens on receiver & transmitter display: Channel, group, transmitter battery level, RF, Audio, SQ level meters, etc.
Total 200 selectable frequencies.
Dual "PiloTone & NoiseLock" circuits minimize interference.
All controls are intuitive and easily setup via buttons.
Reliable RF & transparent audio performance.
100 m (330 ft.) operating range.
100% SMT technics ensure high performance.

Specifications

Channel	Dual channel muti-frequency
Chassis	Full metal 180mm(W) * 45mm(H) * 420mm(D)
Receiving Mode	True Diversity
Frequency Range	UHF 500-870 MHz
Antenna	Rear Panel ( Detachable )
Preset Channels	200 selectable frequencies in each channel
Oscillation Mode	PLL synthesized
Stability	±0.005% (-10~60°C)
Sensitivity	10dBμV, at S/N>80dB
S/N Ratio	>75dB
T.H.D.	<1%
Frequency Response	50Hz~18KHz, with high pass filter.
Squelch	"PiloTone & NoiseLock" dual-squelch circuit.
Audio Output Adjustment	Output level accurately pre-adjusted to equal to the microphone capsule sensitivity.
Maximum Output Level	2-level Switch: Line & Mic
Power Supply	External AC Adapter, 12-17VDC, 600 mA
Transmitter battery	AA 1.5V*2
