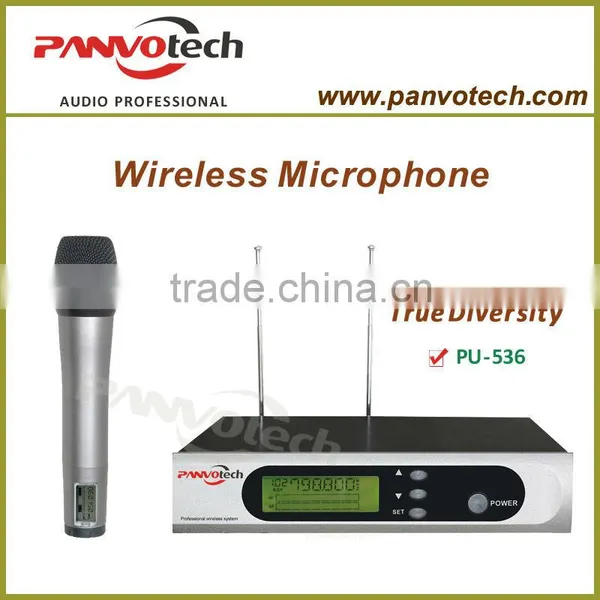

Panvotech Professional Microphone Uhf

Name: Panvotech Professional Microphone Uhf
Brand: Panvotech
SKU: 122573319

US$ 89 - 96 MOQ: 300 Sets

Key Specifications

Brand Name:

Panvotech

Model Number:

PU-536

Style:

Headset Microphone

Shenzhen Panvotech Audio Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Brand Name Panvotech

Model Number PU-536

Style Headset Microphone

Communication Wireless

Use Other, Stage performance, speech, club, auditorium,Ballroom,etc

Place of Origin Guangdong, China

Panvotech professional microphone uhf

Key Features

UHF single channel high range wireless microphone
Full metal receiver case & transmitter body.
True diversity technology offers superior reception quality.
PLL (phase-locked loop) ensures optimum performance.
Backlit LCD screens on receiver & transmitter display: Channel, group, transmitter battery level, RF, Audio, SQ level meters, etc.
Total 100 selectable frequencies.
Dual "PiloTone & NoiseLock" circuits minimize interference.
All controls are intuitive and easily setup via buttons.
Reliable RF & transparent audio performance.
150 m (490 ft.) operating range in ideal condition
100% SMT technics ensure high performance.

Specifications

Channel	Single channel
Chassis	Full metal 80mm(W) * 44mm(H) * 213mm(D)
Receiving Mode	True Diversity
Frequency Range	UHF 520MHz~952MHz
Antenna	Rear Panel ( Detachable )
Preset Channels	100 selectable frequencies in each channel
Oscillation Mode	PLL synthesized
Stability	±0.005% (-10~60°C)
Sensitivity	10dBμV, at S/N>80dB
S/N Ratio	>75dB
T.H.D.	<1%
Frequency Response	50Hz~18KHz, with high pass filter.
Squelch	"PiloTone & NoiseLock" dual-squelch circuit.
Audio Output Adjustment	Output level accurately pre-adjusted to equal to the microphone capsule sensitivity.
Maximum Output Level	2-level Switch: Line & Mic
Power Supply	External AC Adapter, 12-17VDC, 600 mA
Transmitter battery	AA 1.5V*2
