Mooney Digital Viscometer Rubber Rheometer

Mooney Digital Viscometer Rubber Rheometer thumbnail-1
Mooney Digital Viscometer Rubber Rheometer photo-1
US$ 8,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
Rade
Model Number:
MV-C3
Contact Supplier Request Quote Chat Now
Sunchemy International Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing/Xingang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Beijing, China
Brand Name Rade
Model Number MV-C3
Power Electronic
Usage Process Testing Machine

Specifications

Viscometer
CE certificate
Good repeatability
We draft Chinese industry standard
Biggest exportor of Chinese product

Mooney digital viscometer rubber rheometer

Viscometer/digital viscometer/rheometer

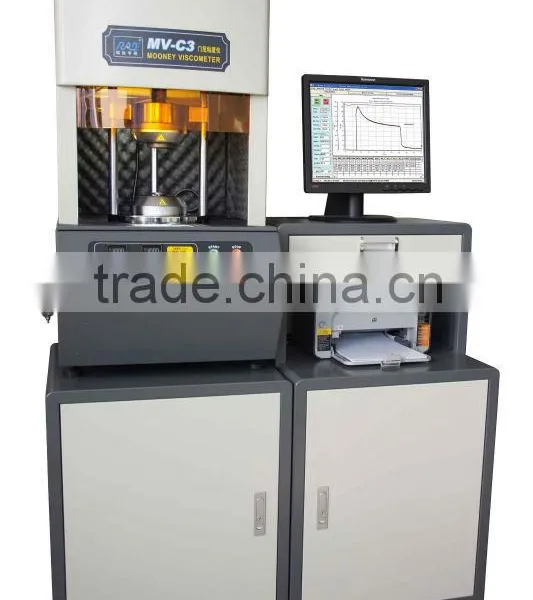

MV-C3 Mooney Viscometer is used for measuring viscosity and relaxation of base rubber, raw rubber stock or rubber mass prevulcanization properties, it is also used for measuring viscosity in Mooney value for compounded or uncompounded unvulcanized natural, synthetic or regenerated rubber.
This instrument has excellent performances including automatic calibration, higher stability. It can perform the following tests: viscosity, scorch and stress relaxation.



Specification:

Items

Specification

Range of temperature control

From room temperature to 200°C

Temperature fluctuation in die

≤±0.1°C

Temperature display resolution

0.1°C

Rate of temperature increase

25°C/min

Measurement range of torque

0-200 MV

Torque resolution

0.01MV

Frequency of rotor

2±0.02r/min

Temperature PID  Control

+/- 0.1°C

Upper & Lower

Separate plate temperature  control

Power supply

220 V ,1 Phase, 50 Hz

Features
1. Easy to use the instrument.
MV-C3 have automatic door and all of the electric components are CE corresponding.
2. Temperature can be increased up to 185 within 7.5min, and recovery time when beginning, and recovery time when beginning test will be less 2min. And temperature fluctuation will be within 0.1.
3. All instruments adopted the way of PID to control temperature.
The smallest size and weight in all of the same type instrument in the market;
4. The die was designed to international standard ISO.
5. With lower noise when working, ≤55dB.

6. It is following  ISO 289 ,ASTM D 1646, JIS K 6300 .

7. Can variable Temperature unit “C, “ F  Degree.

8.Use window XP program connect to machine &  and  can  setting Mooney  or scorch time   and  show Dynamically Mooney value or scorch  time on  the  graph.



Test Results

Measure of Mooney viscosity (Large rotor):

MI -- initial Mooney viscosity.

ML – The minimum Mooney value in the last 30 seconds before the motor stopped.

Mx-t - Mooney value relating to time t.

           x-the time of preheat, t-Mooney test time

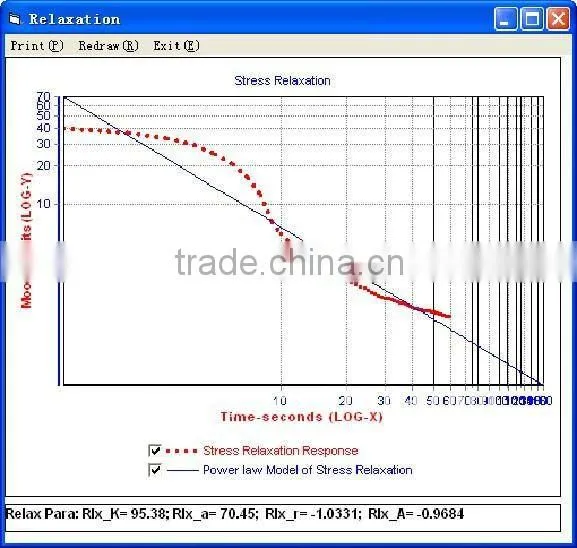

Stress Relaxation

MRe - Mooney value at the end of stress relaxation.

TRx - time needed for x% torque stress relaxation.

Xy% - % of  Viscosity decay after motor stopped y sec.

The value of exponent a,  the constant k,  the correlation coefficient r, and the  area A .

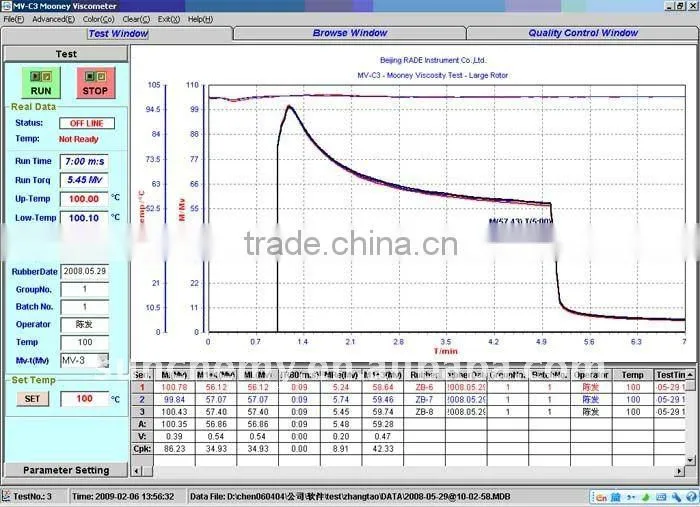

Graph ( with Viscosity-Time curve and Test temperature curve)

Mooney viscosity graph; Relaxation graph; log Mooney units Versus Log time graph.

 Mooney digital viscometer rubber rheometerMooney digital viscometer rubber rheometer

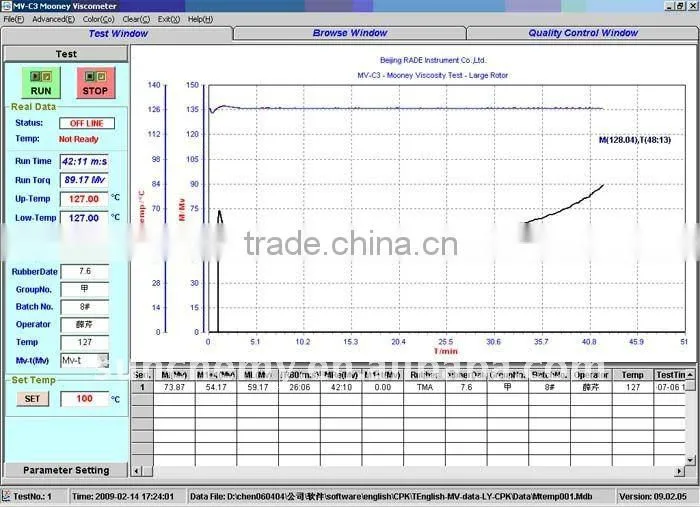

 Scorch Data testing sample results:

   -Scorch time curve

   -Temperature curve

   -Curve index ( Input small  or  Large Rotor test

MI - initial Mooney viscosity

ML - Minimum Mooney viscosit

MF - Maximum Mooney viscosity in the end of the test

Mx-t - Mooney value relating to time t.

x-the time of preheat, t-Mooney test time

M5/M3 - ML+5/3 Mooney

M35/M18 - ML+35/18 Mooney

t5/t3 - Mooney burning time, M5/M3 corresponding time, Unit: min.

t35/t18 - Mooney vulcanizing time, ML+35/18 corresponding time, unit: min.

Mooney digital viscometer rubber rheometer

Standard Configure of MV-C3 Mooney Viscometer

1    Machine Complete    1   Unit

2    O-ring                           50   piece

3    Software operate       1 Unit

4    Large Rotor                1 Unit

5    Small  Rotor               1 Unit

6    Warranty                      1 Year(in China or free parts providing for out of Country)

7    Manual operator        1 Unit

Mooney digital viscometer rubber rheometerMooney digital viscometer rubber rheometer

Mooney digital viscometer rubber rheometer

Viscometer/digital viscometer/automatic viscometer
