Internal mixer
- 200 Set / Sets per Month
- Dalian
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Liaoning, China | Brand Name: | Sunchemy | Model Number: | 25L-400L |
Product Description
Specifications
Internal mixerExport standard
ISO certificate
One of the biggest rubber machinery producer
Export to Europe, USA, Japan

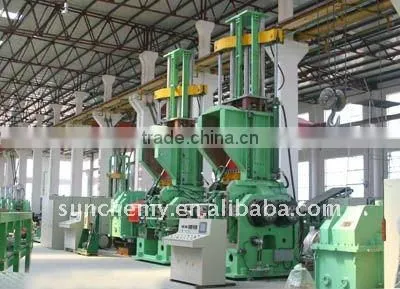

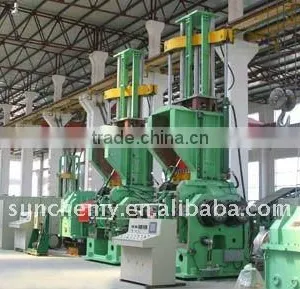

Internal mixer
Internal mixer/Banbury internal mixer/Rubber mixer
The machine is mainly used for mixing and plasticating of rubber or plastics.
Features:
1.Different type of rotors can satisfy the mixing technical requirement.
2.Rotor chamber,discharge door and ram are circulation-cooled.with TCU, it can guarantee the quality of mixed rubber compound.
3.Touch surface of rotor,chamber,discharge door,ram and others contacting with mixing rubber is plated with chrome or wear-resistant hard metal.
4.Hydraulic type sealing structure gurrantees the closed grain of the adhesive meterials.
5.Upper ram is hydraulic or pneumatic pressure type, which can control the press continuously.
6.The floating weight is falling type, driven by gear and hydraulic oil tank with good sealing performance.
7.Various driving system matchs the customers’ requirement.
8.Control system is adopted with PLC system.
Modle | X(S)M-25×(10~100) | X(S)M-50×40 | X(S)M-75×40 | X(S)M-80×40 | X(S)MN-90×(6~60) | X(S)M-110×40 | X(S)M-110×(6~60) | ||
Total volume of mixing chamber L | 2-wings | 2-wings | 2-wings | 2-wings | engagement | 2-wings | 4-wings | ||
Working volume of mixing chamber L | 20 | 30 | 50 | 60 | 56 | 82.5 | 81 | ||
Speed of rear rotor r/min | 10~100 | 40 | 40 | 40 | 6~60 | 40 | 6~60 | ||
Speed ratio of rotors | 1:1.16 | 1:1.15 | 1:1.15 | 1:1.15 | 1:1 | 1:1.15 | 1:1.15 | ||
Driving motor power kw | 132 | 110 | 160 | 220 | 520 | 250 | 450 | ||
Consumption of compressed air m3/h | ~15 | ~20 | ~30 | ~35 | ~140 | ~60 | ~60 | ||
Steam consumption m3/h | ~90 | ~200 | ~280 | ~300 |
| ~720 | ~720 | ||
Pressure of compressed air MPa | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | ||
Consumption of cooling water m3/h | ~8 | ~10 | ~20 | ~25 | ~25 | ~35 | ~35 | ||
Pressure of cooling water (rubber mixing ) MPa | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 | ||
Steam pressure MPa | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 |
| 0.5~0.8 | 0.5~0.8 | ||
Dimensions | L | mm | 3070 | 5910 | 6955 | 7000 | 7040 | 6620 | 7800 |
W | mm | 3135 | 2510 | 5100 | 2760 | 2865 | 2640 | 2855 | |
H | mm | 3650 | 3200 | 4000 | 4500 | 4150 | 4392 | 4392 | |
Gross weight | T | ~7.8 | ~14.85 | ~22 | ~23 | ~23 | ~24 | ~24 | |
Note:The machine is divided into left or right driven: and cooling by wator,heating by steam or hot oil. |
Internal mixer
Internal mixer/Banbury internal mixer/Rubber mixer
