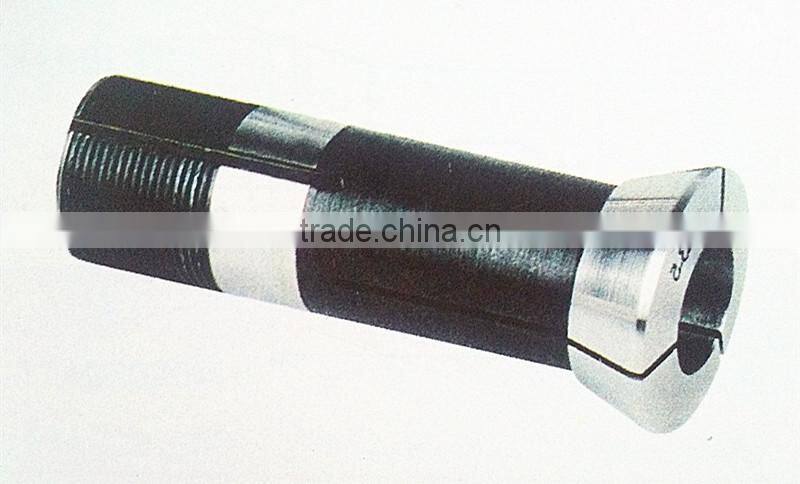

Help CenterK16-d Diameter Clamping Collets , DIN6341 Collet
Related Products
-
Spring Collet DIN6341 Cnc Machine ToolUS$ 11.32 - 18.87MOQ: 2 Pieces -
Spring Collet /DIN6341 Collets Made in China Special Collet ChuckUS$ 11.32 - 18.87MOQ: 1 Piece
-
K16-d Diameter ,DIN6341 ColletUS$ 11.32 - 18.87MOQ: 1 Piece
-
CNC Precision Tool DIN6341 Spring Collet 0.005mmUS$ 11.32 - 18.87MOQ: 1 Piece
-
DIN6341 Collet Spring Collet DIN6341 CNC Milling ToolsUS$ 15 - 20MOQ: 50 Pieces
1,Material:65Mn
2, Hardness: clamping part HRC55~60
elastic part HRC40~45
3,This unit is applicable to all sorts of automatic lathes

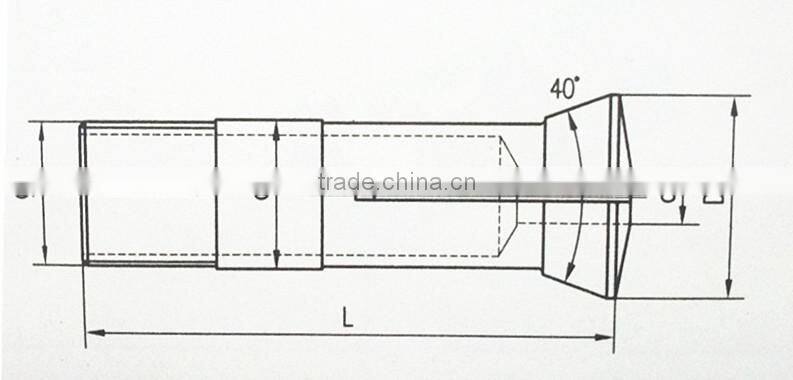

| Order No. | d1(mm) | D(mm) | L(mm) | dmax(mm) | g | WT(kg) |
| k8-d | 8 | 12 | 45 | 5 | M8x0.78 | 0.06 |
| k10-d | 10 | 15 | 52 | 6 | Tr10x1 | 0.09 |
| k12-d | 12 | 18 | 60 | 8 | Tr12x1 | 0.11 |
| k16-d | 16 | 24 | 70 | 11 | Tr16x1.5 | 0.12 |
| k20-d | 20 | 28 | 80 | 15 | Tr20x1.5 | 0.15 |
| k23-d | 23 | 32 | 90 | 18 | Tr23x1.5 | 0.21 |
| k28-d | 28 | 38 | 100 | 22 | Tr28x1.5 | 0.23 |
| k32-d | 32 | 45 | 110 | 27 | Tr32x1.5 | 0.27 |
| k45-d | 45 | 60 | 140 | 36 | Tr45x2 | 0.32 |

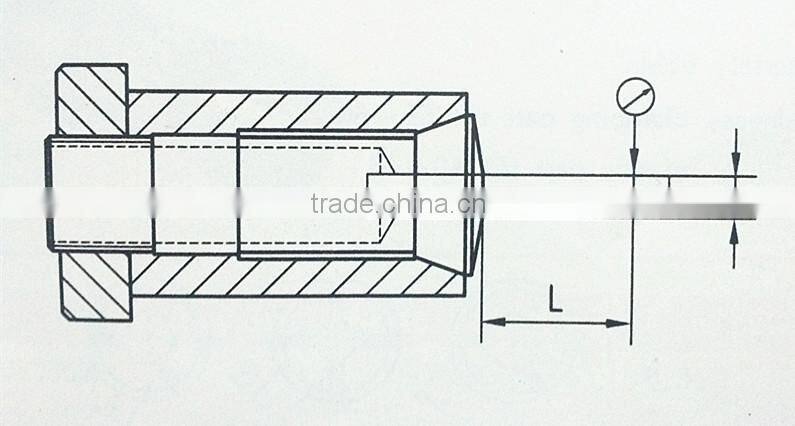

Inspection of Accuracy
| D(mm) | L(mm) | Run out(mm) |
| 1~1.6 | 6 | 0.015 |
| >1.6~3.2 | 10 | 0.020 |
| >3.2~6.0 | 16 | 0.020 |
| >6.0~10 | 25 | 0.020 |
| >10~18 | 40 | 0.030 |
| >18~24 | 50 | 0.040 |
| >24~30 | 60 | 0.040 |
| >30~36 | 80 | 0.040 |
Packaging:Carton box packed out side.
1.Are you factory or Trade Company?
We are Industry and trade integration.
2.Could you supply samples?
Yes, we can supply.
3.Where do you export?
The whole world.
4.Could you produce nonstandard products?
Yes, we can. Please supply samples or drawing.
5. What are the shipping ways?
By international express, by air, by sea are all ok.
6. Do you have minimum order quantity?
Conventional Products don’t have. The minimum order quantity of non-standard products is 50pcs.
7. What’s your payment way?
T/T,L/C
8. What’s your delivery time?
5-20 days after order confirmed
9. What’s your package?
Neutral packing with no brand, plastic box, carton and so on If your quantity is good, we can package with your demand.
Name:Ada Wang
Co.: Pingyuan Juneng Trading Co.,Ltd
Add: East Economic Developmen Zone Pingyuan,Shandong,China
Tel: +86 534 2166608
Fax: +86 534 2166606
MT: +86 15853408477
email:ada00365@gmail. com
