Specifications
HDPE/LDPE film blowing machine with rotary die and auto. winderMarketing Area: Southeast Asia,Mid east.South/North America

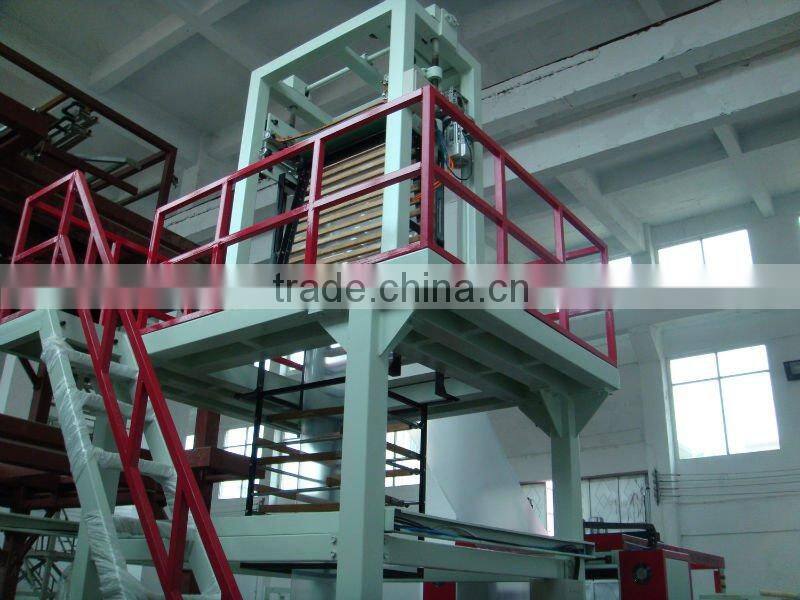

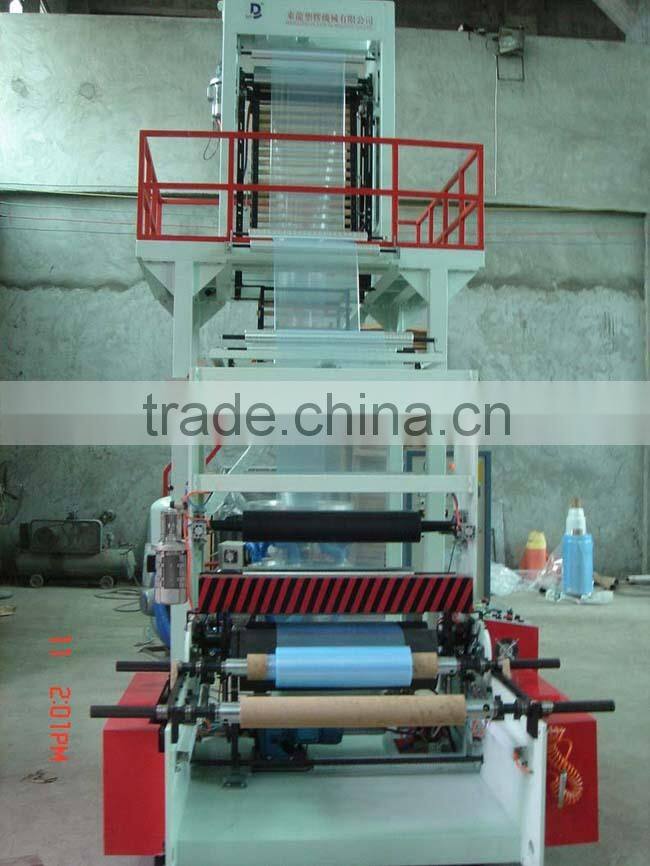

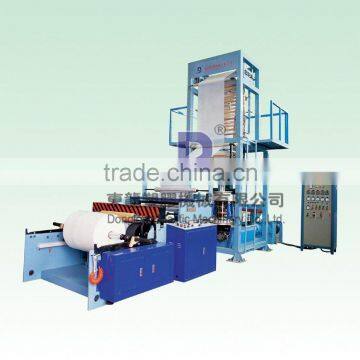

SJ-PG Series Film Blowing Machine with Rotary Die Head and Automatic Winder
Features:
This rotary die head pe film extrusion line employs new technologies such as rotary die head and automatic single station winder. It is featured by reasonable structure, few labor force, little waste, high efficiency and excellent quality etc. The machine us employed to produce plastic film made of low density polyethylene (LDPE), high density polyethylene (HDPE), linear low density polyethylene (LLDPE), and metallocene linear low density polyethylene (MLLDPE). The products are widely used in application of package of civil and industrial products such as food, garment, textile and daily necessities. The products include vest bag, shopping bag and food etc.
Main Technical Parameters:
Model |
SJ45-FMS650PG |
SJ50-FMS850PG |
SJ55-FMS1100PG |
SJ65-FMS1300PG |
Max. Folded Film Width |
550mm |
800mm |
1050mm |
1250mm |
Film Thickness |
0.015~0.10mm |
0.020~0.15mm |
0.020~0.15mm |
0.020~0.18mm |
Output |
35kg/h |
50kg/h |
60kg/h |
80kg/h |
Raw Material |
HDPE, LDPE, LLDPE |
|||
Screw Diameter |
Φ45mm |
Φ50mm |
Φ55mm |
Φ65mm |
Screw L/D |
28:1 |
|||
Total Power of the Machine |
~35kw
|
~42kw |
~50kw |
~62kw |
Shape Size (LxWxH) |
5.5x2.8x4.2m |
6.2x3.0x4.8m |
6.5x3.3x5.2m |
73x3.5x5.2m |
Weight |
~3000kg |
~3500kg |
~4200kg |
~4800kg |
Correct specifications depend on the actual model all specifications are subject to change without prior notice. | ||||
