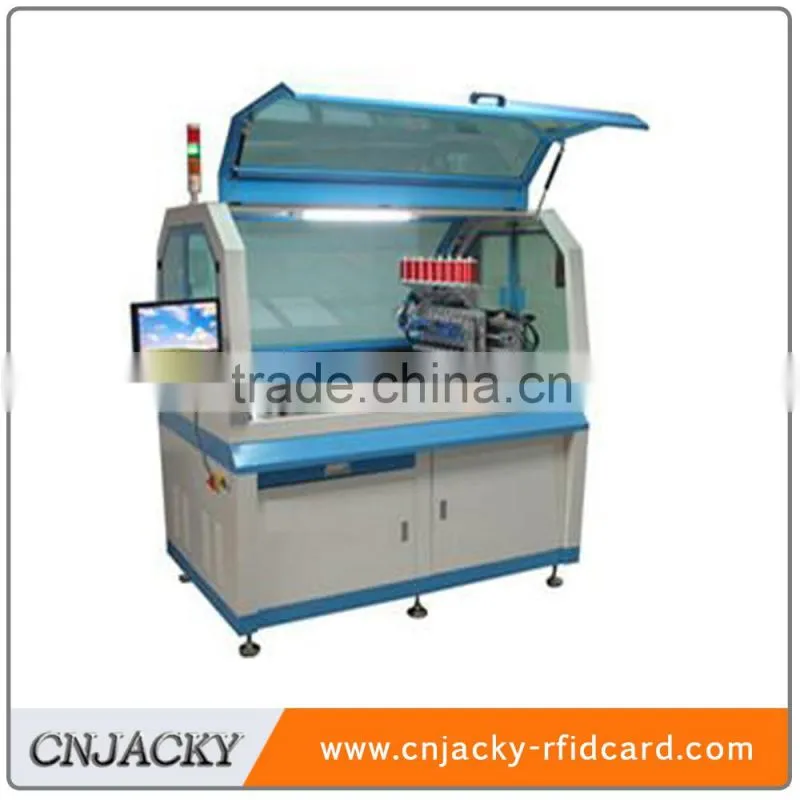

Full automatic RFID inlay processing machine
Feature:
The full auto antenna embedding machine uses the domestic ultrasonic embedding technology to embedding the wire. Just need one person to operate, which save the labor and reduce costs, at the same time, ensure the quality of the products. In the machine structure, the machine is easy to operate and maintain, which enhances the service life of machine and the productivity. The appearance and style of the machine is concise and easy, rationalization and hommization, and the user-friendly operator interface protect the safety of operators. We can also design the different style appearance according to different requirement.
We offer the perfect after-sale service and technical follow-up, and provide paid life long maintenance.
Main function:
1. Advanced ultrasonic wire embedding technology in China.
2. With three worktables, improve the productivity.
3. Machine runs stable; antennas are well distributed with uniform spacing.
4. Servo system ensures accurate location.
5. Designed for wire layer of different layouts and various shapes of antenna.
6. Materials are loaded using dowel pin and vacuum absorbed, easy to adjust.
7. PC control with CAD software for easy adjustment.
Technical parameter:
| Overall dimension | Approx.L1600xW1100xH1800mm |
| Weight | Approx. 1000kg |
| Power supply | AC220V 50/60HZ 25A |
| Power | 1.8KW |
| Air pressure | 6 kg /cm |
| Air consumption | 150L/min |
| Control | Servo system + PC+ Motion control card |
| Tolerance of adjustment | 0.01mm |
| Accuracy | Scale of servo system = 0.01mm |
| Applicable materials | 0.1mm copper wire, 0.125-0.3mm PVC/PEG/ABS (The speed is relevant to the materials) |
| Operator | 1 person |
| Output rate | 10 seconds a wire (5 turns) per head. Max. 8 wiring heads |
| Product percent of pass | 99.8% |
CNJACKY since 2000, which specializes in reaching, developing and manufacturing smart card making equipments. Equipped with the advanced production lines, professional R&D team and strict quality control system, CNJACKY keeps good reputation on excellent quality, customer focus service.and competitive prices.
CNJACKY always insists on "honesty first, professional concentration, in pursuit of excellent and service forever", and dedicates in technology innovation and product development. It has researched and developed kinds of production equipments for plastic and paper card, contact and contactless IC cards, inlay processing machinedouble-interfaced cards . The company always takes the lead in the industry especially in terms of automatic punching machine, automatic card packing machine, automatic IC slot milling machine and automatic chip implanting machines. Its products are highly recognized by the oversea and domestic customers for excellent qualities and reasonable prices.
1.Question: How long time of warranty ?
Answers: 1 year free of charge
2.Question: Do you get CE certified ?
Answers: Yes, we get CE certificate for all our machines
3.Question: Can you supply door to door installation service for machines ?
Answers: Yes ,we supply ,buyer need to afford all dinners ,hotels and tickets .
