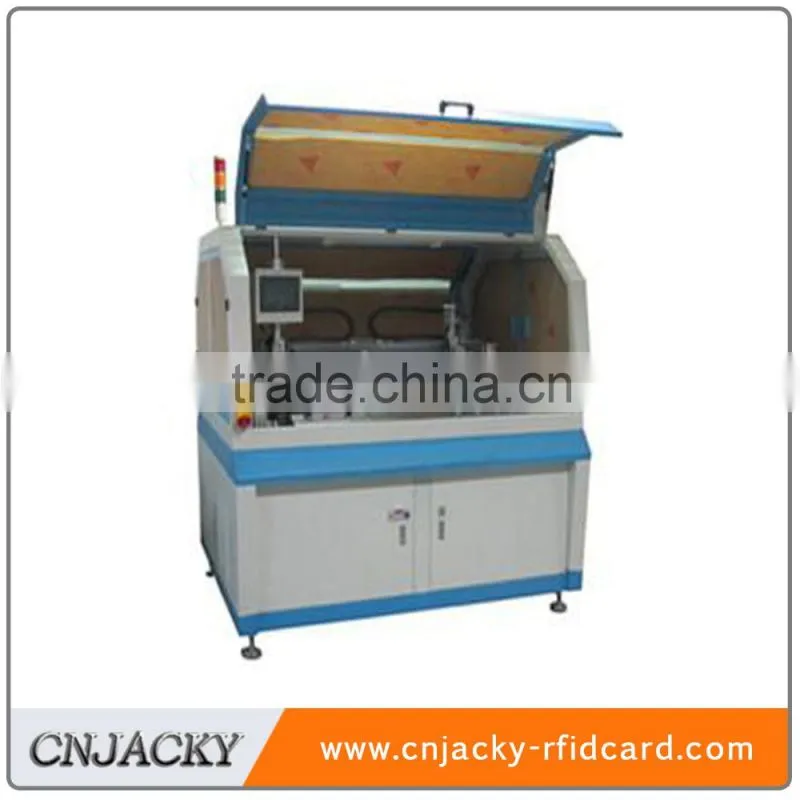

CNJ-RFID contactless chip Strip Module Mounting Machine
RFID contactles machine
Feature:
The strip module mounting machine use to placing the chips. The machinery automation technologies instead of the traditional manual way to embedding the chip, and the machine can finish the module punching and placing at the same time, which save the labor and reduce costs, at the same time, ensure the quality of the products.In the machine structure, the machine is easy to operate and maintain, which enhances the service life of machine and the productivity.
The appearance and style of the machine is concise and easy, rationalization and hommization, and the user-friendly operator interface protect the safety of operators. We can also design the different style appearance according to different requirement.We offer the perfect after-sale service and technical follow-up, and provide paid lifelong maintenance.
Main function:
1. It is suitable for mounting the strip chips.
2. Two work table produce at the same time, the modules punching by the mould then feeding automatically.
3. With two tables produce to improve productivity.
4. Use the precision mould to punch and ensure the quality of the chips.
5. The lifetime of the mould is : it only need to be whetted every 2 million times punching,
6. The cylinder punching the modules up and down with the low noise.
7. The sensors monitor the chip feeding and the quality of the IC, and if the IC is broken, then get rid off the IC automatically.
8. According to different productive technology, it can mount the front or back side modules, just select by the HMI.
9. It can be used for taping type or gluing type, which can be selected by the HMI.
10. The two worktable can produce separate or at the same time
11. It can be surface mounting for different layout, and the two tables can produce the different layout separately at the same time.
12. The unique module fixing design ensures the accurate location of the module.
13. Use the servo to position, to ensure the positioning is accuracy.
14. Use the Delta PLC and the touch screen, stable and visualized.
Technical parameter:
| Overall dimension | Approx. L1650XW1200XH1800mm |
| Weight | Approx. 850kg |
| Power supply | AC220V 50/60HZ 25A |
| Power | 1.5KW |
| Air pressure | 6 kg /cm2 |
| Air consumption | 80L/min |
| Control | Servo system + PLC |
| Tolerance of adjustment | 0.01mm |
| Accuracy | Scale of servo system = 0.01mm |
| Applicable materials | The strip module |
RFID contactles machine wooden case
CNJACKY since 2000, which specializes in reaching, developing and manufacturing smart card making equipments. Equipped with the advanced production lines, professional R&D team and strict quality control system, CNJACKY keeps good reputation on excellent quality, customer focus service.and competitive prices.
CNJACKY always insists on "honesty first, professional concentration, in pursuit of excellent and service forever", and dedicates in technology innovation and product development. It has researched and developed kinds of production equipments for plastic and paper card, contact and contactless IC cards, double-interfaced cards and bank cards. The company always takes the lead in the industry especially in terms of automatic punching machine, automatic card packing machine, automatic IC slot milling machine and automatic chip implanting machines. Its products are highly recognized by the oversea and domestic customers for excellent qualities and reasonable prices.
1.Question: How long time of warranty ?
Answers: 1 year free of charge
2.Question: whole lifetime warranty ?
Answers: chargeable of parts
3.Question: Do you get CE certified ?
Answers: Yes, we get CE certificate for all our machines
4.Question: Can you supply door to door installation service for machines ?
Answers: Yes ,we supply ,buyer need to afford all dinners ,hotels and tickets
