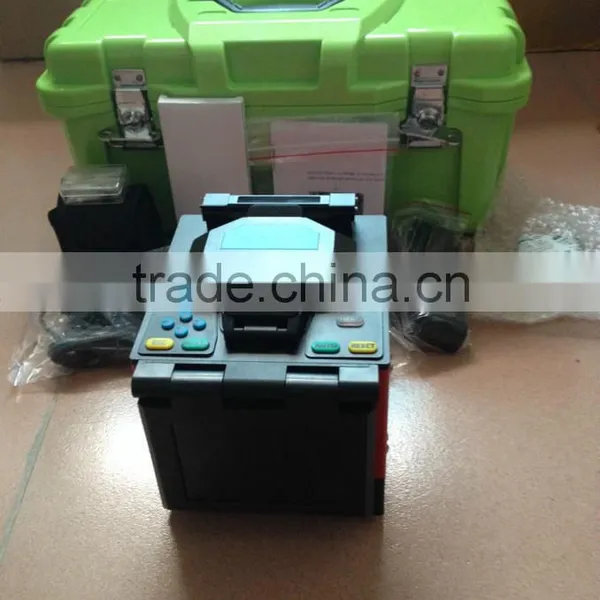

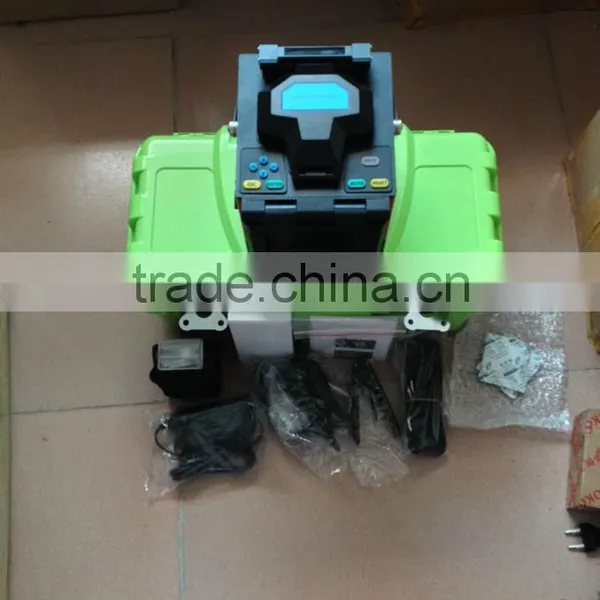

Fiber Optical Fusion Splicer Machine Support SM MM,NZ-DS EDF Fiber High Performance Splicing Machine
Main Features:
5 inches high Resolution colorful LCD display
Average splice time: 10 second
Average tube-heat time: 40 second
Lithium battery: Up to 180 times of continuous splice and heat
Simultaneous X and Y views with 180 times magnification
New developed technology providing wind and dust resistance
Splicing mode: Auto & Manual
USB Port
Storing 6, 000 groups of splice results.
Specifications
Applicable FibersSM, MM, NZ-DS, EDF
Average Splice Loss0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
Return Loss≥ 60dB
Tension Test2.0N(200gf)(Standard)
Typical splicing time10sec
Typical heating time 30sec
Splicing Program50 groups
Protection Sleeve Length 20mm, 40mm, 60mm
Language:Chinese, English
Operating condition-10~+50(operation temperature), 0~95% RH(humidity), 0~5000m(altitude)
Power SupplyAC100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC) / 12V voltage 8AH(inner Li-battery)
Monitor5 inches high Resolution colorful LCD display
Fiber image magnificationSimultaneous X and Y views with 200 times magnification
Storage of splice result6, 000 groups of splice results.
Splicing ModelAuto & Manual & Full Auto
Optical Fiber Fixture7 Fiber Fixtures & 4 Kinds of Fixtures
