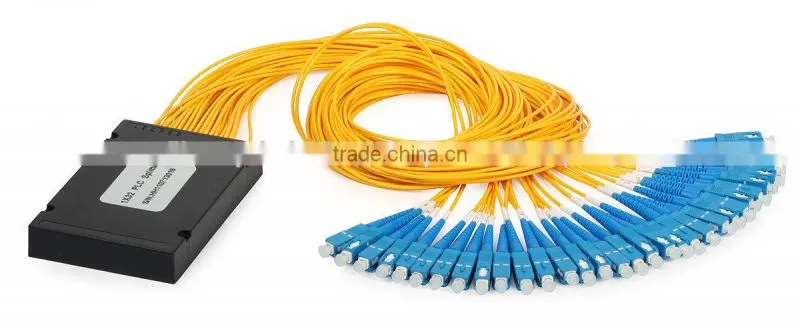

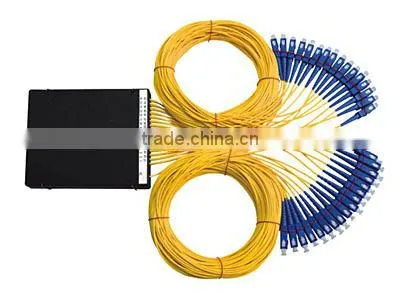

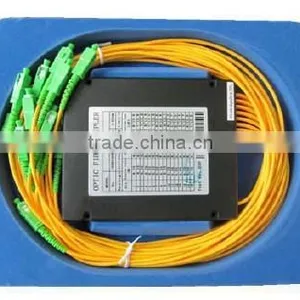

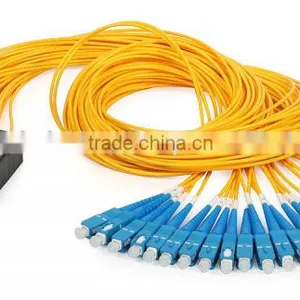

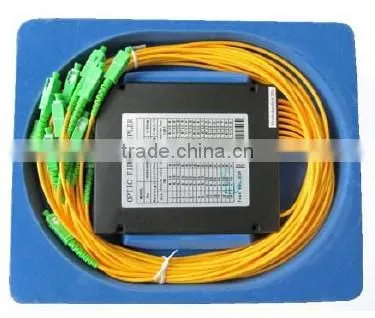

Fiber Optical Splitters Coupler FBT Coupler PLC Splitter With Pigtails Optical Passives
US$ 2 - 50
MOQ: 50 Pieces
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2-228 Cores GYFTY Fiber Optic Cable For Power Transmission System Non-metallic Non-armored Cable Dielectric Loose Tube CableUS$ 100 - 300MOQ: 10 Kilometers -
GYFTY Fiber Optic Cable For Power Transmission System Non-metallic Non-armored Cable Dielectric Loose Tube CableUS$ 100 - 300MOQ: 10 Kilometers
-
Fiber Optic Attenuator LC MM AttenuaterUS$ 0.1 - 5MOQ: 1000 Pieces
-
GYFXTY Fiber Optic Cables Non-metal Central Loose Tube Out CableUS$ 100 - 300MOQ: 5 Rolls
-
FTTH Fiber Optic Portable Optical Time Domain Reflectometry OTDR Equal EXFO/JDSU OTDR MeterUS$ 500 - 3,000MOQ: 1 Set
Place of Origin
China
Specifications
fiber optical splitter,fbt coupler,plc splitter,single mode/multi mode,steel tube package /box packageOptical PLC Splitter/FBT Coupler
Features:
- Low Insertion Loss
- Uniform Power Splitting
- Excellent Environmental &
-Mechanical Stability
Applications:
- Long-Haul Telecommunications
- Digital,Hybrid and AM-Video Systems CATV Systems
- High Speed Local Area Networks
- Fiber sensors
Performance Specifications
Directivity(dB) |
>55 |
|||
Operating Temperature(°C) |
-20~+70 |
|||
Storage Temperature(°C) |
-40~+85 |
|||
Fiber Pigtail Length(m) |
1or Customer On Request |
|||
Port Configuration |
1X4 to 32X32 |
|||
|
| ||||
Singlemode Single Window Wideband Tree/Star Couplers | ||||
Port Configuration |
1X4(4X4) |
1X8(8X8) |
1X16(16X16) |
1X32(32X32) |
Max.Insertion Loss (dB) |
6.9 |
10.3 |
13.8 |
17.2 |
Uniformity(Max.) (dB) |
0.7 |
1.5 |
1.8 |
2.2 |
Operating Wavelength (nm) |
1310±40,1550±40,1585±40,or custom wavelength |
|||
|
| ||||
Singlemode Dual/Three Window Tree/Star Couplers | ||||
Port Configuration |
1X4(4X4) |
1X8(8X8) |
1X16(16X16) |
1X32(32X32) |
Max.Insertion Loss (dB) |
7.2 |
10.8 |
14.4 |
17.8 |
Uniformity(Max.) (dB) |
0.8 |
1.7 |
2.0 |
2.5 |
Operating Wavelength (nm) |
1310/1550±40, 1310/1490/1550±40 or Custom wavelength |
|||
The Spec. is for 1XN Coupler only.
