16IN1 Full HD QAM Modulator Headend Digital input RF Output DVB-T Encoder modulator

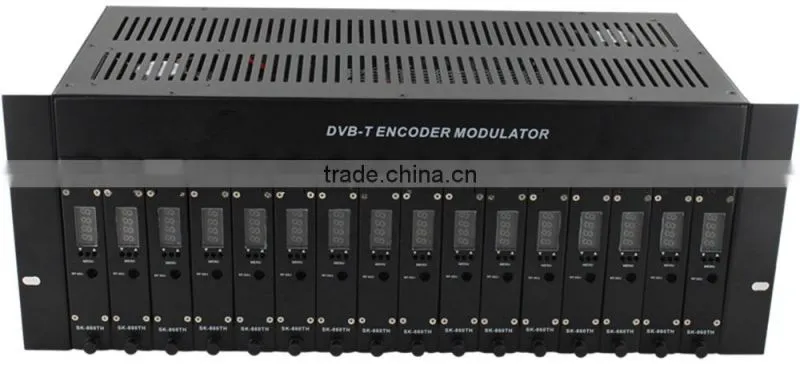

This is a low cost professional DVB headend, which integrates 16 modules encoder-modulators into a 5-U height 19” rack mount system. It can convert 16 HDMI signal or 16 A / V signal into one DVB-T RF signal in the range of 350-860MHz.

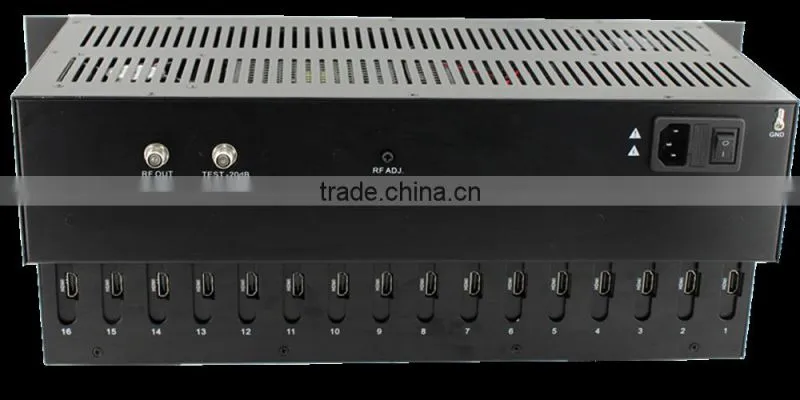

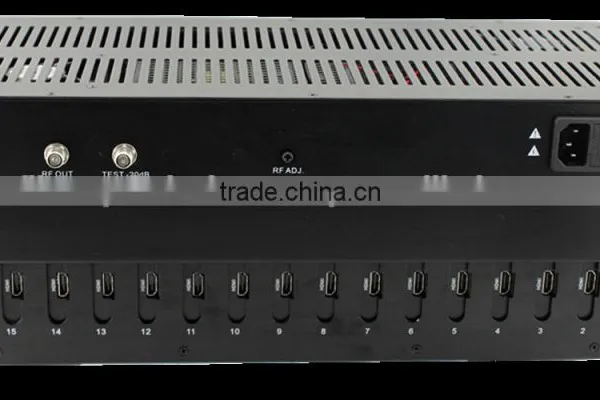

16-A / V signal input and 1 RF output
Support H.264 video encoding or MPEG2 HD video encoding
Switching power supply for installation flexibility and precise voltage regulation
45dBmV final output level, no extra combiner is required
Front panel access controls enable easy setup
Agile frequency
Video
Input Connector: RCA Yellow
Encode Format: H.264
Input Level: 0.6-1.5Vp-p
Input Impedance: 75ohm
Audio
Input Connector: RCA White and Red
Encode Format: MPEG1 Layer II
Input Level: 0.5 – 2.5 Vp-p
Input Impedance: Min 10Kohm
Sample Rate: 48KHz
Bit Rate: 256kbps
Modulation
Standard: DVB-T comply with ETSI EN 300 744
Constellation: 64QAM
Output Frequency Range: 350-860MHz, 0.1MHz Step
Output level: ≥45dBmV
Band width: 6/7/8MHz optional
FEC: 7/8
Guard Interval: 1/32
MER: ≥35dB
Transmission Mode: 8K
