16IN1 Full HD QAM Modulator Headend Digital input RF Output DVB-T Encoder modulator

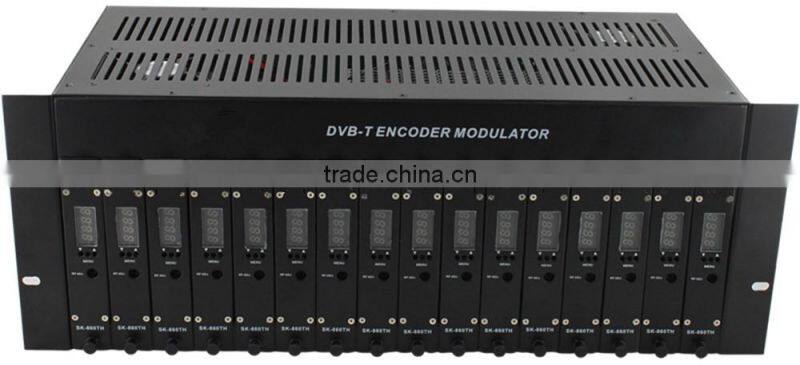

This is a low cost professional DVB headend, which integrates 16 modules encoder-modulators into a 5-U height 19” rack mount system. It can convert 16 HDMI signal or 16 A / V signal into one DVB-T RF signal in the range of 350-860MHz.

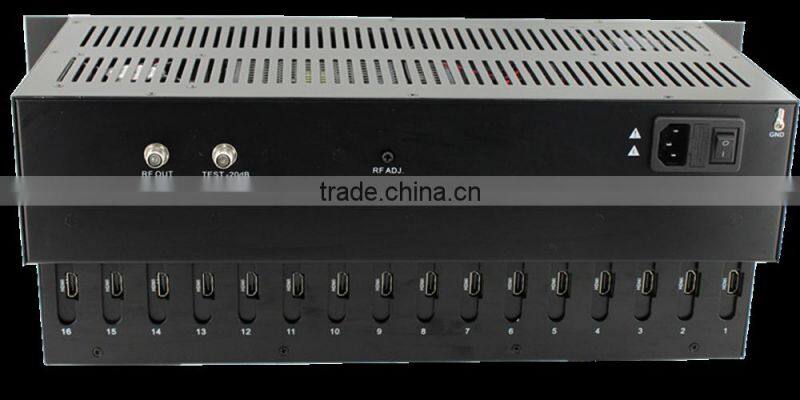

16-HDMI signal input and 1 RF output
Support H.264 video encoding or MPEG2 HD video encoding
Switching power supply for installation flexibility and precise voltage regulation
45dBmV final output level, no extra combiner is required
Front panel access controls enable easy setup
Agile frequency
Video
Encode Format: MPEG 2.0
Resolution: MAX 1920*1080 60P
Bit Rate: 0.5-19.5Mbps
Audio
Encode Format: MPEG 1 Layer II
Sample Rate: 48KHz
Bit Rate: 384kbps
Modulation
Standard: DVB-T COFDM
Constellation: 64QAM
Output Frequency Range :300-999MHz (0.5 step)
Output Level: ≥45dBmV
Band Width:6/7/8MHz Optional
Symbol Rate: 8MHz
Guard Interval:1/32
FEC: 7/8
MER: ≥35dB
Transmission Mode: 8K
Input Connector: HDMI 1.4
Power for modulator: DC 5V/1A
