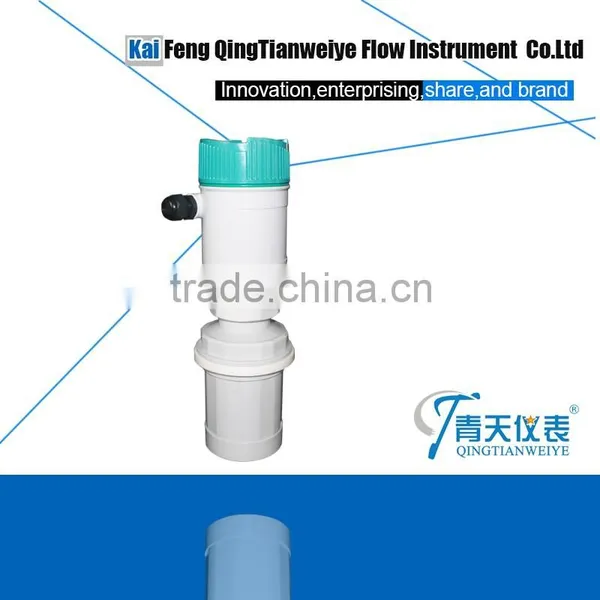

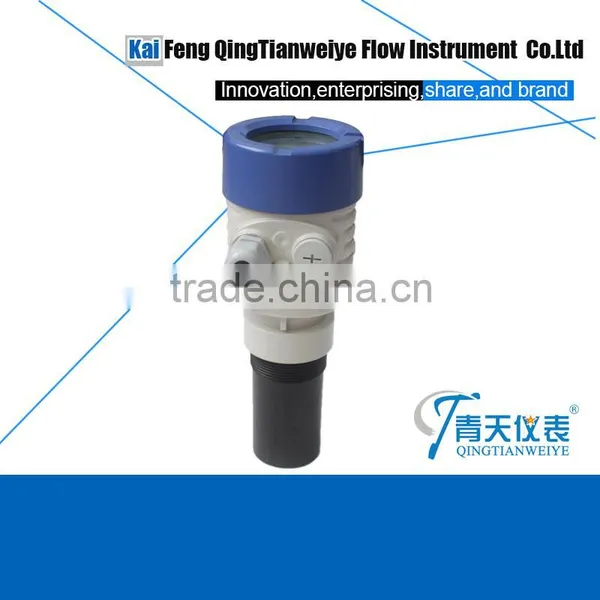

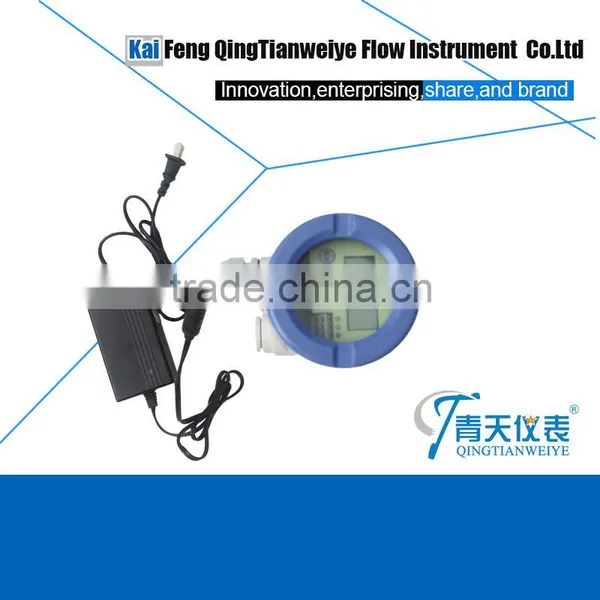

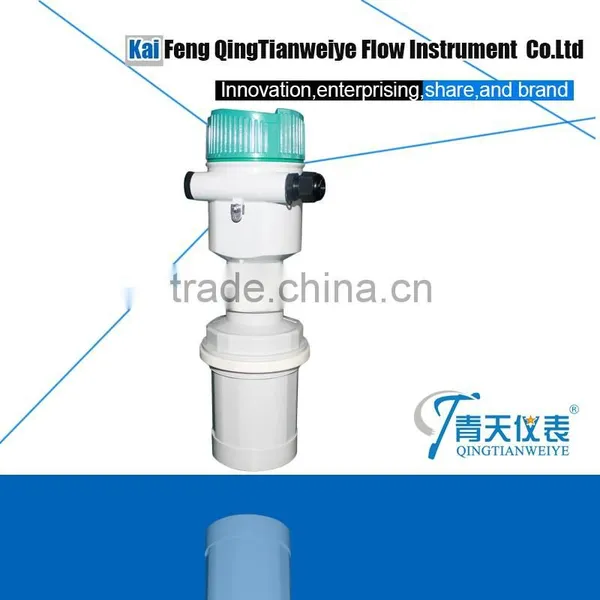

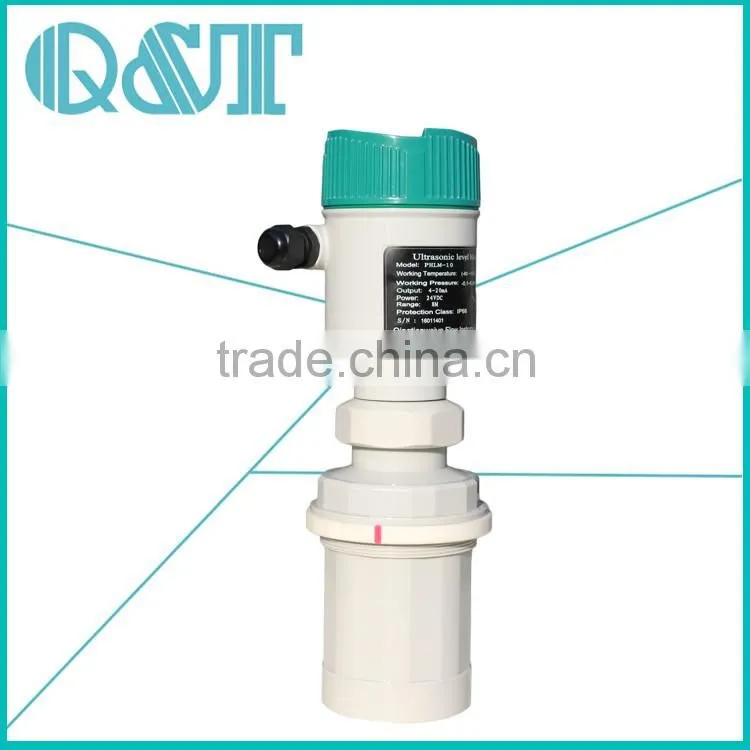

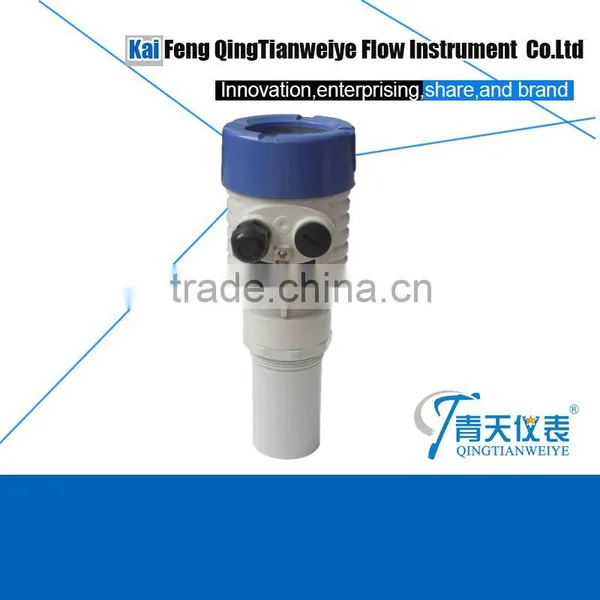

ultrasonic level water depth level measurement sensor
- 3000 Set / Sets per Month
- Shanghai/Qingdao/tianjin
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Henan, China | Brand Name: | qtyb | Model Number: | QTCS |
Packaging Details
1.covered with plastic wrap for the carton
2.non-nail packing for the wooden box
Product Description
Use
Liquid level or material level measurement.
Application
This series is compact type ultrasonic level meter for continuous non-contact level measurement in liquids and solids. It's widely applied to the metallurgical, water treatment, chemical, electricity and oil industries.

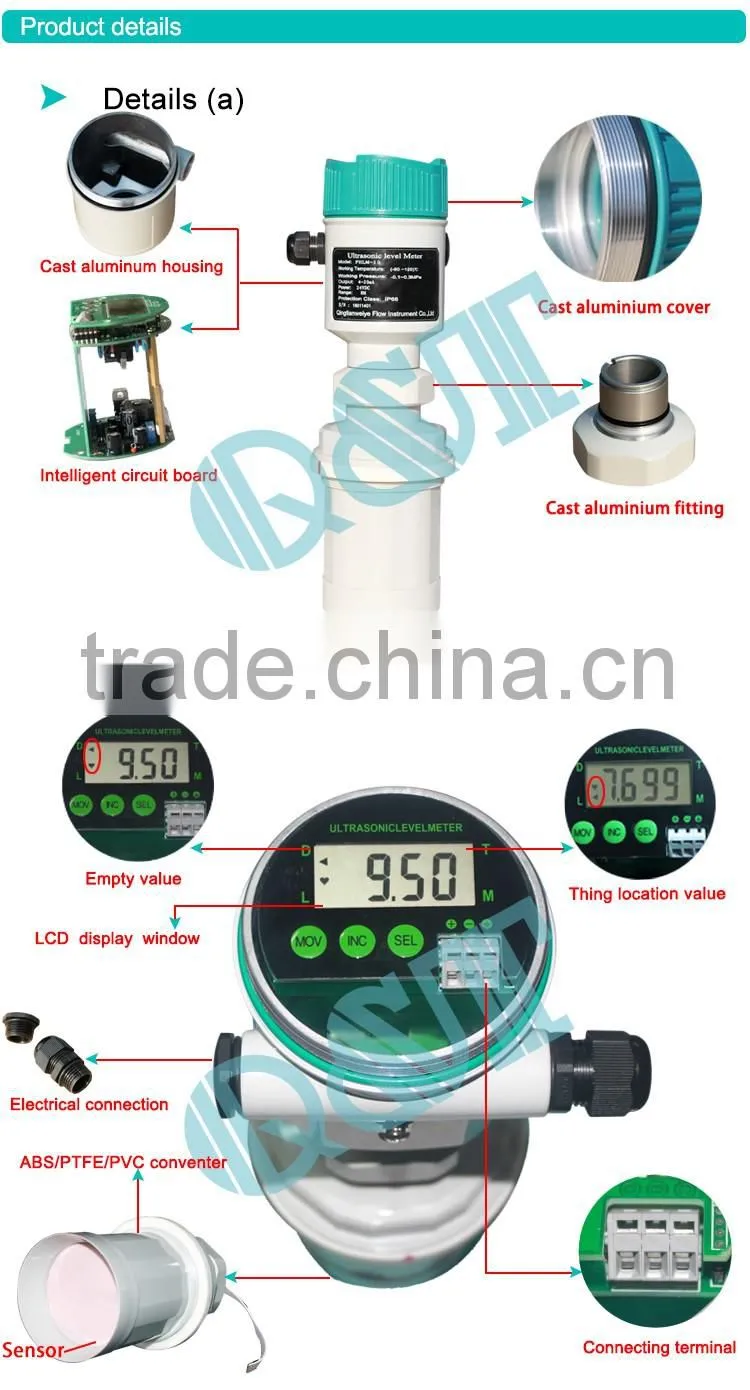

Features
- Integrated design, installed conveniently;
- Protected in the excessive voltage and current , protected in the thunder and lightning;

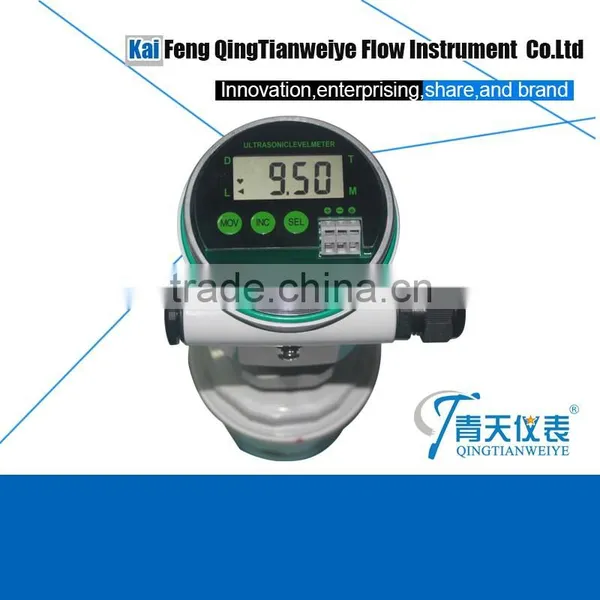

- The big show window of LCD is easy to debug and observe;
- Over-voltage over-current protection, lightning protection;
- Advanced since the clamp type terminal, to ensure that wiring never loose;
- Intellectual signal treatment technology, guarantee that the instrument meets various kinds of operating occasion;
- All plastic probe, acid and alkali resistant, adapt to bad environment;
Power supply | DC24V (±10%) 30mA | Cable diameter | Φ 6 ~ Φ12 mm | |||
Display | 4 digit LCD | Single wire diameter | Φ0.5 ~ Φ1.78 mm | |||
Display resolution | 0.03% of the actual range | Testing cycle | 1.5 seconds | |||
Output current | 4-20mA | 5º(3db) for range | 12m 20m 30m | |||
Output load | 0-500Ω | 10º(3db) for range | 4m 6 m 8m | |||
Temperature range | -40 ℃~75℃ | Cover material | Aluminum | |||
Pressure range | ±0.1MPa (press definitely) | The sensor material | ABS/PVC/PTFE | |||
Temperature compensation | full range and automatic | Protect grade | IP67 | |||
Measuring range (Liquid)(m) | 4.00 | 6.00 | 8.00 | 12.00 | 20.00 | 30.00 |
Blanking distance(m) | 0.20 | 0.25 | 0.30 | 0.50 | 0.80 | 1.2 |
Display resolution | 1mm | 1mm | 1mm | 1cm | 1cm | 1cm |
<tr > P Standard Type(Non ex-proof)
I Intrinsically safe (Exia IIB T6 Ga)
PLUT | |||||||
Measure range(m) | |||||||
4 | 6 | 8 | 12 | 20 | 30 | ||
License | |||||||
Energy Transducer Material/Process Temperature/Protection Grade | |||||||
A ABS/(-40-75)℃/IP67 B PVC/(-40-75)℃/IP67 C PTFE/(-40-75)℃/IP67 | |||||||
Process Connection/Material | |||||||
G Thread D Flange | |||||||
Electronic Unit | |||||||
2 4~20mA/24V DC Two Wire 3 4 20mA/24V DC Four Wire 4 4 20mA/220V AC Four Wire 5 4 20mA/24V DC /HART Two Wire 6 4 20mA/24V DC /HART Four Wire 7 4 20mA/220V DC /HART Four Wire Y Special custom | |||||||
Shell / Protection Grade | |||||||
L Aluminum / IP67 G SS304 / IP67 | |||||||
Cable Entry | |||||||
M M20*1.5 N 1/2'' NPT | |||||||
Programmer/Display | |||||||
A With Display B Without Display |
Company Profile
Company Profile
Exported to more than 30 COUNTRIES around the global; 500 SETS/MONTH production capacity; More than 10 YEARS MANUFACTURING EXPERIENCE; 5 Categories main products; the first company who own FIVE SETS CALIBRATION SYSTEMS in China, enjoys Class 0.2 high accuracy can equal to the world famous brand SIEMENS, ABB,ETC; 8 national patents;etc. All above makes KAIFENG QINGTIANWEIYE FLOW INSTRUMENT CO.,LTD.
Our Advantages - Class 0.2 accuracy
Until now, our company have installed DN10~DN50 & DN 65~DN150& DN800~DN2200 standard volumetric method with maximum flow 16000m3/h, DN80~DN300 & DN350~DN700 MT MASS method water flow standard devices and one bye one in the past years and have proven QINGTIAN as the recognized pioneer and world leading provider of high quality Process Control Instrumentation for Flow, Level, Temperature, Pressure,etc.
Customized Solutions + Global Presence = Peace of Mind
QINGTIAN's best of breed solution with world's major end users, QINGTIAN's proven products have been carefully customized to meet the requirements of:
- Flow instrument: electromagnetic flow meter, vortex flow meter, turbine flow meter, ultrasonic flow meter, rotameter etc;
- Flow meter calibration equipment , test bench machine;
- Water Treatment Plant Control System etc;
- Radar Level Meter etc.
Kaifeng qingtian is committed to providing advanced state-of-the-art renewable solutions that are tailored to satisfy even the most unique and specific needs to the global customers.
