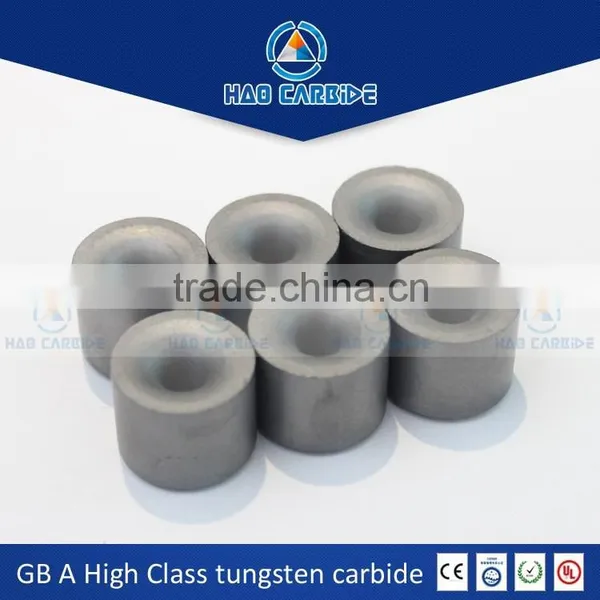

hot sale drawing dies wire drawing dies
Name of the product |
hot sale drawing dies wire drawing dies |
Material |
YG6X , YG10X , YG8 , YG3 tungsten carbide |
Size |
Customized size alloy drawing dies |
Grade |
YG3 – YG10 tungsten wire drawing dies mould |
Hardness |
HRA91 carbide die mould |
Applications |
tungsten carbide wire dies used for drawing steel, nonferrous wires and bar |
Packing |
Medal Drum /Export Bag/Carton or according to customers' requirements |
MOQ |
100pcs drawing die wire tools |
Payment |
T/T, D/A, L/C, D/P ,western union for tungsten carbide wire die |
Delivery of time |
5-7 days after receiving the advance payment |

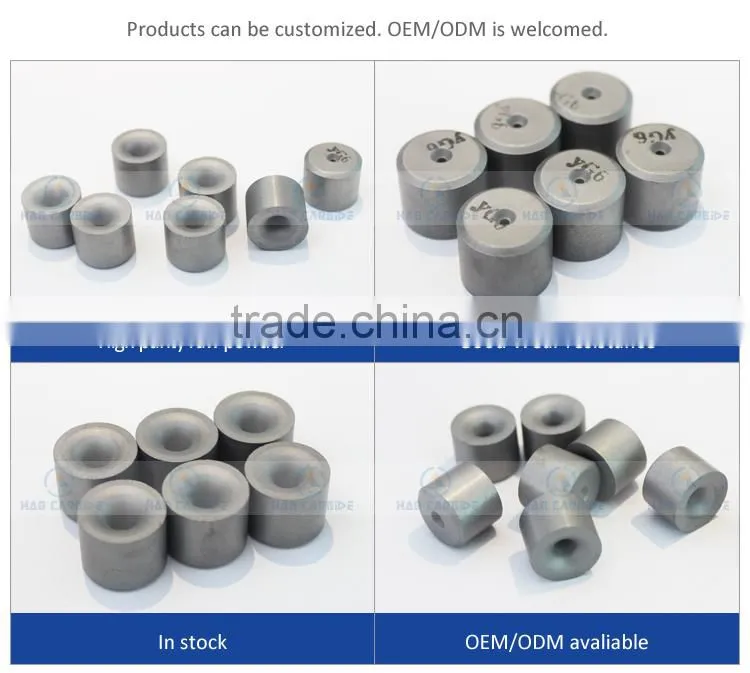

More detailed pictures of round wire drawing dies
Features of drawing dies wire drawing dies
1. Tungsten wire drawing mould with high quality raw powder which purity is over 99.95%.
2. It obtains low impurity content and it is no crack.
3. All types are in stock. Fast delivery can be made within 4 days.
Data sheets of tungsten wire drawing dies mould
| Note: Product can be customized, OEM/ODM is avaliable. The data sheet is for your referance. | ||||
| Grade | Equal to ISO Category Number | Performance | ||
| Density | Bend Strength | Hardness | ||
| G/Cm3 | N/mm2 | HRA | ||
| YG3 | K01 | 14.9-15.3 | 1180 | ≥90.5 |
| YG3X | K01 | 15.1-15.4 | ≥1300 | ≥91.5 |
| YG6X | K10 | 14.8-15.1 | ≥1560 | ≥91.0 |
| YG6A | K10 | 14.7-15.1 | ≥1580 | ≥91.0 |
| YG6 | K20 | 14.7-15.1 | ≥1670 | ≥89.5 |
| YG8 | K20-K30 | 14.6-14.9 | ≥1840 | ≥89 |
Other types of round drawing die can be offered according to customers' requirement.
Cemented carbide Products in Jingzuan:
- Tungsten Carbide Bars / Rods / Strips / Plates
- Tungsten Carbide Studs / Tip teeth / Burrs / Buttons
- Tungsten Carbide Cutting Tools / Milling Tools
- Tungsten Carbide Mould / Die
- Tungsten Carbide Balls / Ball Mill Jar
- Tungsten Carbide Saw Blade Cutter / Cutter Heads
- Tungsten Cemented Carbide Products
Main products (carbide grinding ball, tungsten carbide rods, carbide flat, tungsten carbide dies, knife sharpener inserts, carbide buttons , tungsten carbide plate, brazed tips and etc):
|
|
|
|
|
|
|
|
All the round drawing die must be inspected strictly with the ultrasonic and only those haven’t any harm such as pore can be shipped out.
We can supply tungsten carbide mould and tungsten drawing die wire mould with high precision. With high corrosion and wear resistance
, and high strength and temperature resistant, our valve ball (tungsten carbide pellets) and seat export to many countries.
Zhuzhou JingZuan Carbide Co., Ltdis a professional manufacturer of tungsten carbide tools, with a wide range of products including carbide strobe blanks, tungsten carbide alloy ball, carbide rods, carbide dies, carbide slitting saws, coated inserts, end mills and many customized products. With a large selection of carbide grades for woodworking, metal working and working of composite materials, we also provide carbide materials for your special use.
For more informations for tungsten carbide tools, do contact with me. No matter by Email, by trademanager, by enquiry, by Skype and etc is ok.
