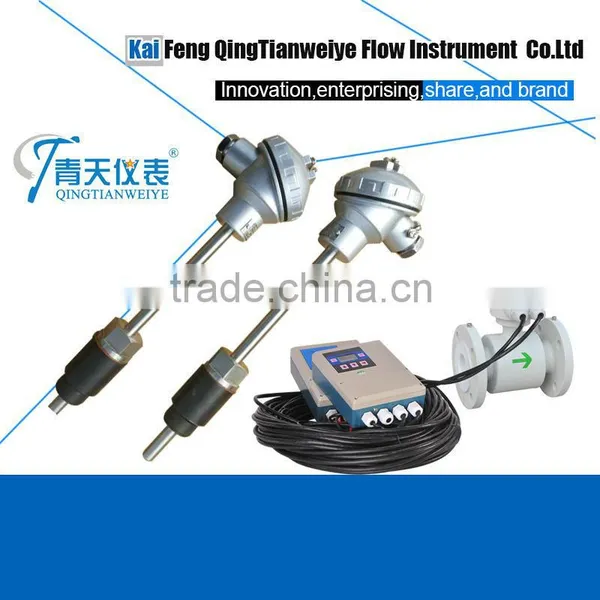

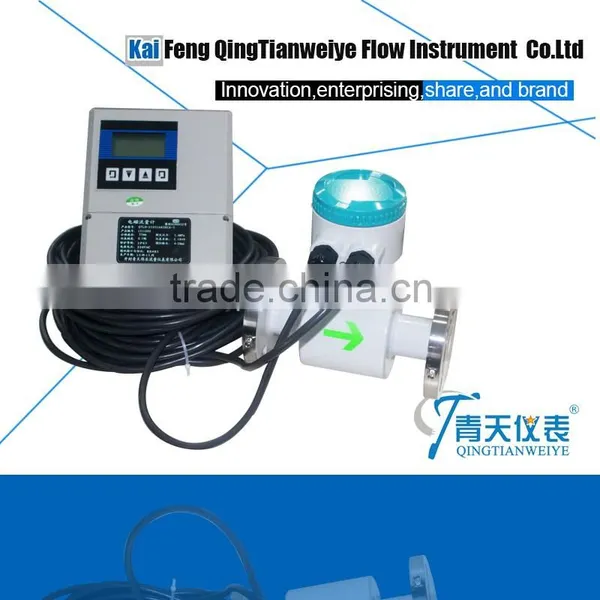

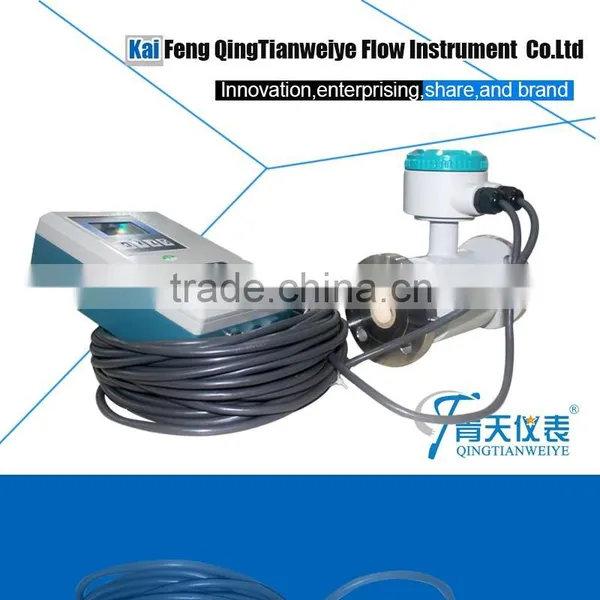

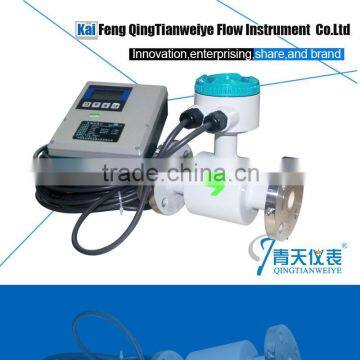

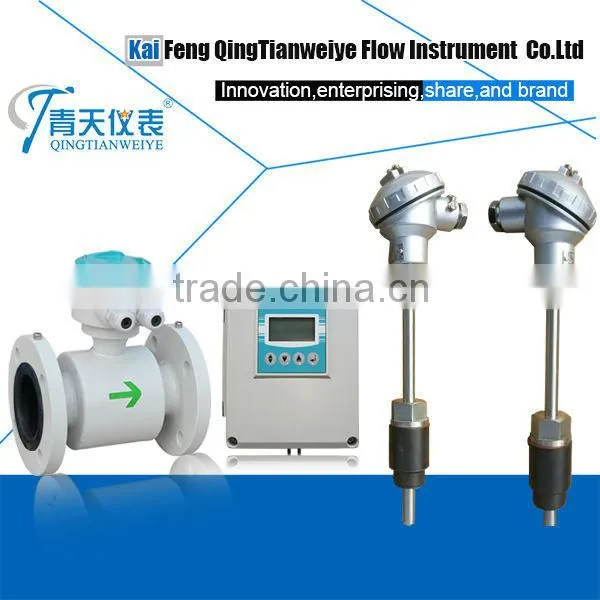

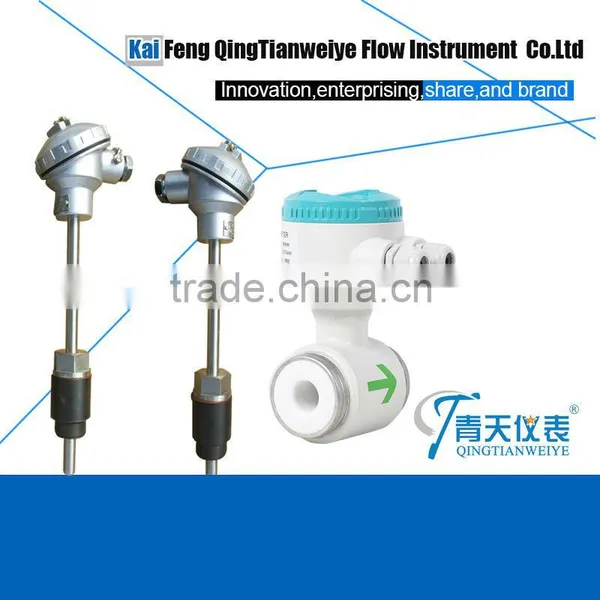

Remote Display Field Instrument Water Electromagnetic Flowmeter
US$ 300 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
qtyb
Model Number:
DN6-DN3200
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Remote Display Field Instrument Water Electromagnetic Flow MeterUS$ 400 - 400MOQ: 1 Set -
Electronic Pipe Meter Pipeline Electromagnetic FlowmeterUS$ 300 - 5,000MOQ: 1 Set
-
Electronic Pipe Meter Pipeline Electromagnetic Flow MeterUS$ 400 - 400MOQ: 1 Set
-
Low Small Flow Electromagnetic FlowmeterUS$ 400 - 400MOQ: 1 Set
-
Low Small Flow Electromagnetic Flow MetersUS$ 400 - 400MOQ: 1 Set
Place of Origin
Henan, China
Brand Name
qtyb
Model Number
DN6-DN3200
remote display field instrument water electromagnetic flowmeter
Introduction and Application
Intelligent electromagnetic flow meter is hallmarked by its high performance and reliability based on successful, field-proven technology. It is being widely used in industries such as petroleum, chemical engineering, iron and steel, food, electricpower, paper making, water treatment, petrochemical, medicine etc.
Features
- Measurement depends on fluid density, humidity, temperature, pressure and conductivity.
- There is no obstructive in the conduit and no pressure drop, and the straight pipe required is relatively short.
- The sensor is equipped with the advanced processing technology that provides excellent immunity to negative pressure.
- LCD display of the converter makes it easy to read during daylight and in darkness.
- Parameters can be set up using infrared touch nubs no need to open the cover of the converter.
- Automatic alarm functions for selfdiagnosis, empty load test, high and low limit of flow, two-stage flow value, etc.
- It is applicable not only to general process, but also in tough applications such as mining, papermaking, pastry, etc.
- High pressure sensor with PFA liner is resistant to high pressure and negative pressure, and available to chemistry and corrosive solution.
Technical Performance Parameters
| Model | DN6~DN3000mm | ||
|---|---|---|---|
| Nominal Pressure | 0.6~1.6MPa(2.5Mpa/4.0Mpa/6.4Mpa...42Mpa) | ||
| Accuracy | ±0.5%,±0.3%or±0.2% are selectable | ||
| Liner material | Teflon,PFA,F46,Neoprene,Polyurethane | ||
| Electrode Type | General type ,scraper type and replaceable type | ||
| Electrode material | Stainless steel SUS316,Hastelloy C,Titanium,Tantalum Platinumiridium, Stainless steel covered with tungsten carbide |
||
| Mediem temperature | Integrate type | -20°C~+60°C | |
| Remote type | Neoprene & Polyurethane Liner | -10°C~+80°C | |
| PTFE Liner /PFA Liner /F46 Liner | -10°C~+160°C | ||
| Ambient Temperature | -25°C ~+ 60°C | ||
| Ambient Humidity | 5~100%RH(relative humidity) | ||
| Medium Electrical conductivity |
>=5u s/cm | ||
| Measuring Range | 1500:1,flow rate<15m/s | ||
| Structure type | Integral type,remote type,submersible type,ex-proof type | ||
| Protection Class | IP65,IP68(optional) | ||
| Ex-proof Mark | ExmdⅡT6 | ||
| Product Standard | JB/T 9248-1999 Electormagnetic Flowmeter | ||
Main performances of the electrode materials
| Electrode material | Applications |
|---|---|
| sainless steel SUS316 | Applicable in water,sewage and corrosive mediums. |
| Widely used in industries of petrol,chemistry,carbamide,etc | |
|
Stainless steel covered with tungsten carbide |
Applicable in mediums of no corrosive and low abrasion. |
| Hastelloy B(HB) | Having strong resistance to hydrochloric acid of any consistance which is below bioling piont. |
| Also resistable against vitriol,phosphate, | |
| hydrofluoricacid,organic acid etc which are oxidable acid,alkali and non-oxidable salt. | |
| Hastelloy C(HC) | Be resistant to oxidable acid such as nitric acid,mixed acid |
| as well as oxidable salt such as Fe+++,Cu++aStnd sea water | |
| Titanium | Applicable in seawater,and kinds of chloride,hypochlorite salt,oxidable |
Not resistant to a pure reducing acid(such as sulphuric acid,hydrochloric | |
| But if acid contains antioxidant is greatly reduce corrosion. | |
| Tantalum | Having strong resistance to corrosive mediums that is similar with glass |
| Almost is applicable to all chemical mediums. | |
| Except for hydrofluoric acid,oleum and alkali. | |
| Platinum-iridium | Almost be applicable in all chemical mediums except for ammonium salt. |
VELOCITY-FLOW RATE TABLE
| Pipe Size |
Min.Flow Rate (0~0.5m/s) |
Min.Flow Rate (0~10m/s) |
|
|---|---|---|---|
| mm | inch | L/min,m3/h | L/min,m3/h |
| 10 | 3/8 | 0 ~ 2 L/min | 0 ~ 40 L/min |
| 15 | 1/2 | 0 ~ 5 L/min | 0 ~ 100 L/min |
| 20 | 3/4 | 0 ~ 7.5 L/min | 0 ~ 150 L/min |
| 25 | 1 | 0 ~ 10 L/min | 0 ~ 200 L/min |
| 32 | 1.25 | 0 ~ 20 L/min | 0 ~ 400 L/min |
| 40 | 1.5 | 0 ~ 30 L/min | 0 ~ 600 L/min |
| 50 | 2 | 0 ~ 3 m3/h | 0 ~ 60 m3/h |
| 65 | 2.5 | 0 ~ 6 m3/h | 0 ~ 120 m3/h |
| 80 | 3 | 0 ~ 9 m3/h | 0 ~ 180 m3/h |
| 100 | 4 | 0 ~ 12 m3/h | 0 ~ 240 m3/h |
| 125 | 5 | 0 ~ 21 m3/h | 0 ~ 420 m3/h |
| 150 | 6 | 0 ~ 30 m3/h | 0 ~ 600 m3/h |
| 200 | 8 | 0 ~ 54 m3/h | 0 ~ 1080 m3/h |
| 250 | 10 | 0 ~ 90 m3/h | 0 ~ 1800 m3/h |
| 300 | 12 | 0 ~ 120 m3/h | 0 ~ 2400 m3/h |
| 350 | 14 | 0 ~ 165 m3/h | 0 ~ 3300 m3/h |
| 400 | 16 | 0 ~ 225 m3/h | 0 ~ 4500 m3/h |
| 450 | 18 | 0 ~ 300 m3/h | 0 ~ 6000 m3/h |
| 500 | 20 | 0 ~ 330 m3/h | 0 ~ 6600 m3/h |
| 600 | 24 | 0 ~ 480 m3/h | 0 ~ 9600 m3/h |
| 700 | 28 | 0 ~ 660 m3/h | 0 ~ 13200 m3/h |
| 800 | 32 | 0 ~ 900 m3/h | 0 ~ 18000 m3/h |
| 900 | 36 | 0 ~ 1200 m3/h | 0 ~ 24000 m3/h |
| 1000 | 40 | 0 ~ 1350 m3/h | 0 ~ 27000 m3/h |
