Remote transmitter for magnetic flowmeter
- 1999 Set / Sets per Month
- Shanghai/Qingdao/Tianjin
- Credit Card PayPal
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | qtyb | |
| Model Number | QTLD |
1:Export plywood packing with foam liner.with DN150MM
2:Carton box with thin film wrapped,if caliber less than 150mm
3:Export standard packing according to buyer's requirements
Product Description

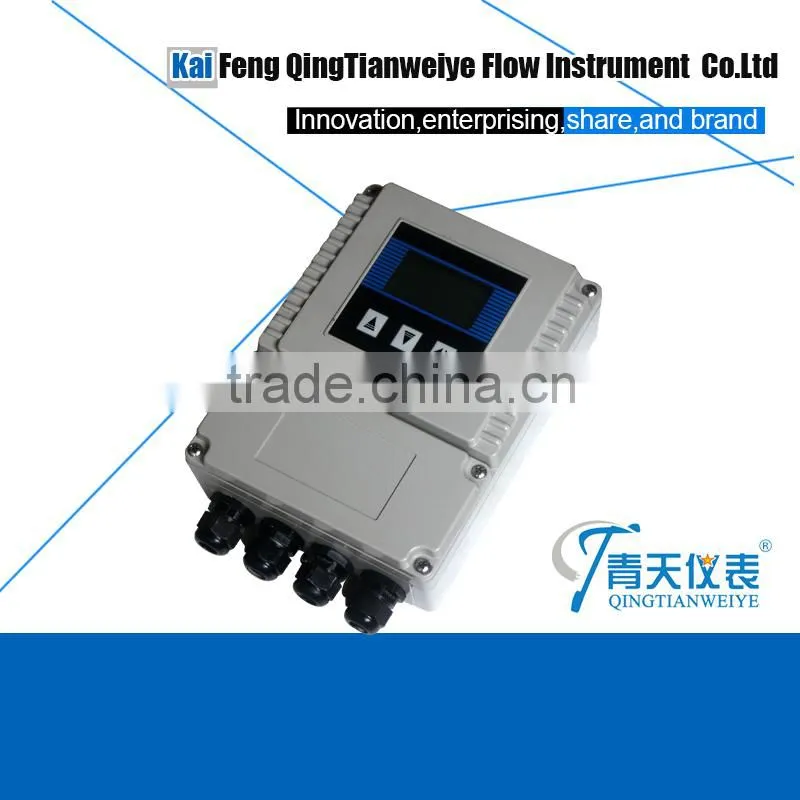

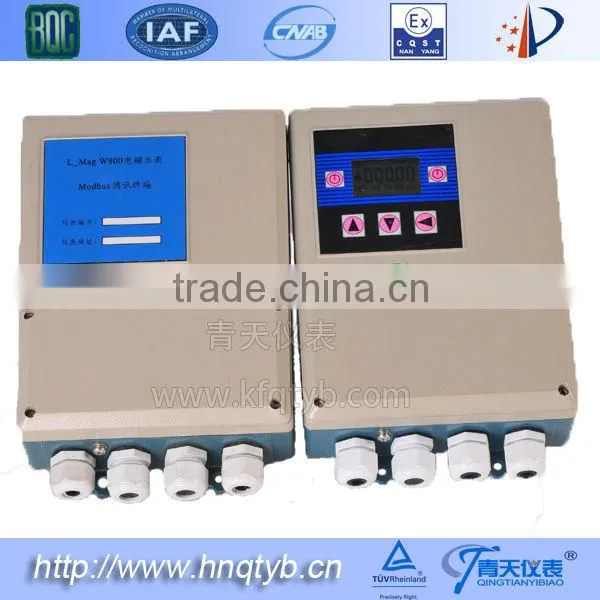

Remote transmitter for magnetic flowmeter
| Technical Performance Parameters | |||
| Caliver | DN3~DN3000mm | ||
| Nominal Pressure | 0.6~4.0MPa(special pressure can be made to) | ||
| Accuracy | ±0.5%,±0.3%or±0.2% are selectable | ||
| Liner material | Teflon,PFA,F46,Neoprene,Polyurethane | ||
| Electrode Type | General type ,scraper type and replaceable type | ||
| Electrode material | Stainless steel SUS316,Hastelloy C,Titanium,Tantalum Platinum-iridium,Stainless steel covered with tungsten carbide | ||
| Medium Temperature | Integral type | -20°C~+60°C | |
| Remote type | Neoprene & Polyurethane Liner | -10°C~+80°C | |
| PTFE Liner /PFA Liner /F46 Liner | -10°C~+160°C | ||
| Ambient Temperature | -25°C ~+ 60°C | ||
| Ambient Humidity | 5~100%RH(relative humidity) | ||
| Medium Electrical conductivity | ≥20μ s/cm | ||
| Measuring Range | 1500:1,flow rate<15m/s | ||
| Structure type | Integral type,remote type,submersible type,ex-proof type | ||
| Protection Class | IP65,IP68(optional) | ||
| Ex-proof Mark | ExmdⅡT4 | ||
| Product Standard | JB/T 9248-1999 Electormagnetic Flowmeter | ||
| Main performances of the lining materials | ||
| Lining material | Main Performance | Applications |
| Teflon | 1.The most steady material in plastics which is resistibal to boiling hydrochloric acid,vitriolandqua fortis as well as strong alkali and organic impregnates. 2.Not be perfect in abrasion resistance. | Strong corrosive mediums such as strong acid and alkali |
| PFA | Having the same abrasion resistance with PTFE.Having strong ability of load pressure resistance. | Applicable in state of load pressure |
| F46 | 1.Have the same abrasion resistance with PTFE.2.Resistable for low abrasion.3.Having strong resistance to load pressure. | 1.The same as PTFE.2.Applicable in mediums of low abrasion. |
| Neoprene | 1.Be of good elasticity,retractility and abrasion resistance.2.Be resistant to low aicd,alkali and salt but not for oxidation mediums. | Water,sewage and slurry,mineral serosity of low abrasion. |
| Polyurethane | 1.Be of good abrasion resistibility.2.Not be perfect in acid/alkali resisitance.3.Can't be used for water mixed with organic impregnants. | Applicable in mineral serosity,slurry and coal slurry of high abrasion. |
| Main performances of the electrode materials | |
| Electrode material | Applications |
| Stainless steel SUS316 | Applicable in water,sewage and corrosive mediums.Widely used in industries of petrol,chemistry,carbamide,etc |
| Stainless steel covered with tungsten carbide | Applicable in mediums of no corrosive and low abrasion. |
| Hastelloy B(HB) | Having strong resistance to hydrochloric acid of any consistance which is below bioling piont.Also resistable against vitriol,phosphate,hydrofluoricacid,organic acid etc which are oxidable acid,alkali and non-oxidable salt. |
| Hastelloy C(HC) | Be resistant to oxidable acid such as nitric acid,mixed acid as well as oxidable salt such as Fe+++,Cu++and sea water |
| Titanium | Applicable in seawater,and kinds of chloride,hypochlorite salt,oxidable acid(including fuming nitric acid),organic acid,alkali etc.Not resistant to a pure reducing acid(such as sulphuric acid,hydrochloric acid)corrosion.But if acid contains antioxidant(such as Fe+++,Cu++)is greatly reduce corrosion. |
| Tantalum | Having strong resistance to corrosive mediums that is similar with glass.Almost applicable in all chemical mediums.Except for hydrofluoric acid,oleum and alkali. |
| Platinum-iridium | Almost be applicable in all chemical mediums except for aqua fortis,ammonium salt. |
We have established nice relationship with so many expresses,such as DHL,Fedex,TNT etc.
We sure that your products will get the best protection,and we will send to you hand with the
fastest speed.For sure that electromagnetic flow meter would not damaged by nature factors,we package it by wooden case if Diameter is larger than 150mm,or use carton.
From the raw material to the finished production we have the very strict and serious procedure to guarantee our products get to the different quality requirements to provide our customers high quality products, first-class service. The sale of products provides 12-month warranty and lifetime tracking service.
The total area of our company is 15000 square meters,and the building area is 6000 square meters.Our company have five utility model patents,three software copyrights.And we also have production qualification and liquid calibration settings for flow meters from Dn25mm to DN2000mm.We have strong R&D capability.Our company and our head office have large quantity of running water industrial users,and we also have strong marketing capabilities on battery powered electromagnetic flow meter.We are expecting to cooperate with manufacturer who can provide battery powered flow converter,or through expand cooperation in various modes.To develop the Chinese market and international market of battery powered flow meter together.To learn from each other and to achieve win-win situation.
We are expecting sincere cooperation.If you have interest,please feel free to contact us at any time.We are looking forward to hearing from you.
Company Profile
Company Profile Exported to more than 30 COUNTRIES around the global; 500 SETS/MONTH production capacity; More than 10 YEARS MANUFACTURING EXPERIENCE; 5 Categories main products; the first company who own FIVE SETS CALIBRATION SYSTEMS in China, enjoys Class 0.2 high accuracy can equal to the world famous brand SIEMENS, ABB,ETC; 8 national patents;etc. All above makes KAIFENG QINGTIANWEIYE FLOW INSTRUMENT CO.,LTD. Our Advantages - Class 0.2 accuracy Until now, our company have installed DN10~DN50 & DN 65~DN150& DN800~DN2200 standard volumetric method with maximum flow 16000m3/h, DN80~DN300 & DN350~DN700 MT MASS method water flow standard devices and one bye one in the past years and have proven QINGTIAN as the recognized pioneer and world leading provider of high quality Process Control Instrumentation for Flow, Level, Temperature, Pressure,etc. Customized Solutions + Global Presence = Peace of Mind QINGTIAN's best of breed solution with world's major end users, QINGTIAN's proven products have been carefully customized to meet the requirements of: - Flow instrument: electromagnetic flow meter, vortex flow meter, turbine flow meter, ultrasonic flow meter, rotameter etc; - Flow meter calibration equipment , test bench machine; - Water Treatment Plant Control System etc; - Radar Level Meter etc. Kaifeng qingtian is committed to providing advanced state-of-the-art renewable solutions that are tailored to satisfy even the most unique and specific needs to the global customers.
