50kw Wind Generator Direct Driven PMG Wind Aero Generator With CE Cert

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Anhui, China		Brand Name	Hummer
Model Number	H16.5- 50kw		Type	Wind Power Generator

50kw wind generator direct driven PMG wind aero generator with CE cert

Products Features

SCF (Supercritical Generator Technology) generator technology as core, Feature is extremely light ,small,fasting,stable with higher power efficiency .
Adopt SKF bearings, which have a 15 years life span without maintenance.
Smart Intelligent yaw shaft system has designed with sensor to detect speed,Rpm,angle ,tempreture of generator, speed,direction of wind etc.
PLC controller system(Smart and lntelligent) with touch screen, which can automatically seek wind direction, drifts off the blades from strong wind direction to protect the system and constantly monitor generator working status, Monitoring rotation speed, generator temperature, wind speed and direction etc. All data will be transmitted to control center and easy view control with the touch screen.
One international patents, Six National patents and ensure the perfect performance.

Main technical parameter:

Rated power(W)	50000
Maximum output power (W)	50000
Charging voltage (V)	DC 400
Blade quantity	3
Rotor blade material	GRP
Rotor blade diameter (m)	16.5
Start-up wind speed (m/s)	3
Rated wind speed (m/s)	11
Rated rotating rate (r/min)	70
Generator efficiency	>0.9
Free standing tower diameter (in.)	Ø53.1*Ø20.9 (Φ1350×Φ530mm)
Tower height (ft.)	59 (18m)
The weight of generator (kg)	2000
Suggested Battery (Ah)	800/1500

Power Curve

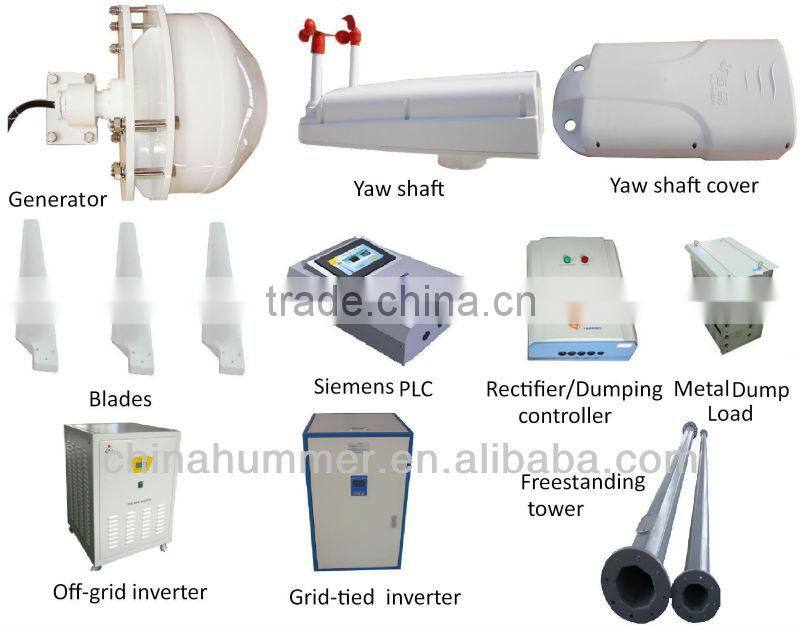

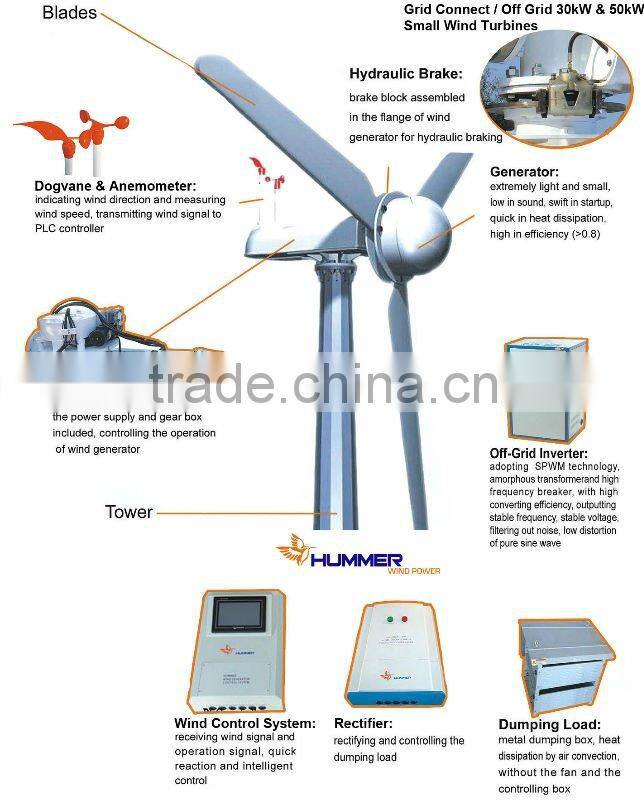

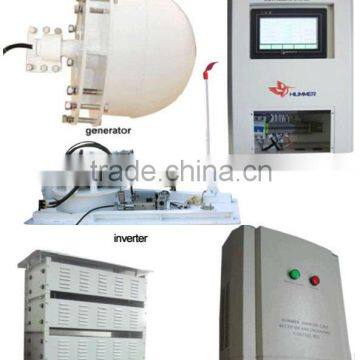

Parts And Components

Application to :

1) Housing, factory and hospital

2) Telecommunication Station

3) Monitoring Station (military, hydrology, observatory)

4) Wind farm station

5) Water-pumping Station

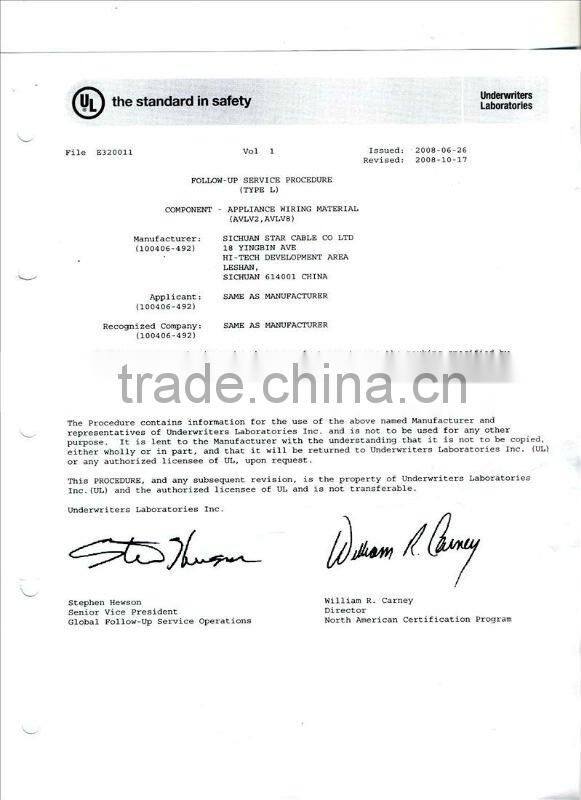

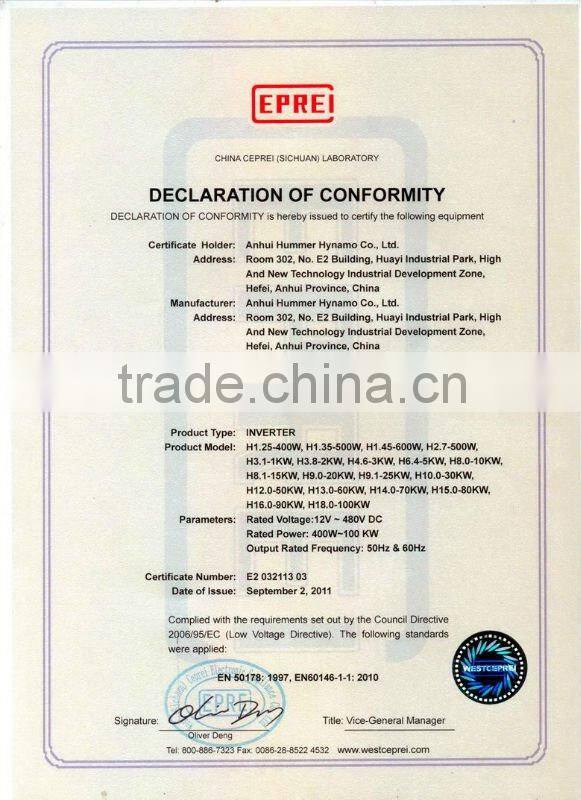

Certificates
