Grid Connect Wind Power 50kW Turbine Generator

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Anhui, China		Brand Name	Hummer
Model Number	H16.5-50000W		Type	Wind Power Generator

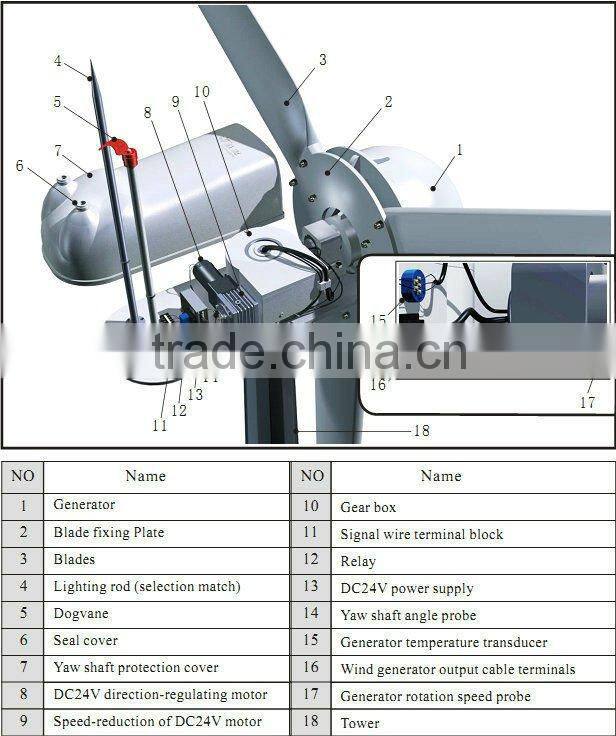

Structure of grid wind turbine generator 50KW power:

Technical Parameter of grid wind turbine generator 50KW power:

Rated power (W)	50000
Maximum output power (W)	50000
Battery bank voltage (Vdc)	400
System output voltage (Vac)	380 three phase
Start-up wind speed (m/s)	3
Rated wind speed (m/s)	11
Working wind speed (m/s)	3-25
Survival wind speed (m/s)	50
Generator efficiency	>0.9
Generator type	Permanent Magnet Alternator
Generator weight (kg)	2000
Blade material/quantity	GRP/3
Blade diameter (m)	16.5
Speed regulation method	Yawing+Pitch control +hydraulic braking
Shutting down method	Manual+Automatic

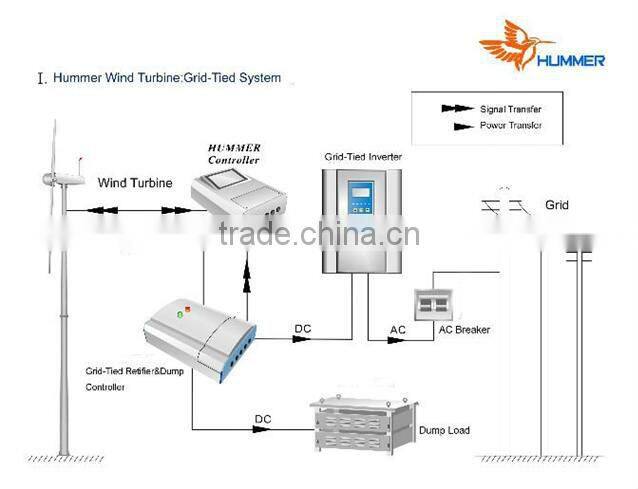

Working principle of grid wind turbine generator 50kW power:

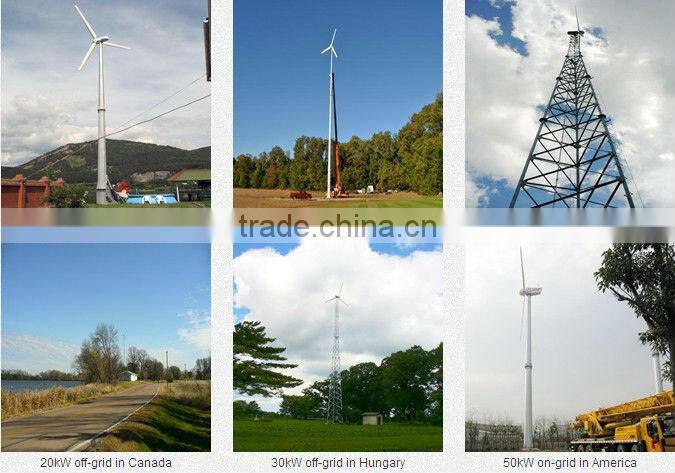

Project Case of 50kW grid wind turbine generator set:

50kW grid wind turbine generator application:
wind power generation commercial wind farm

Telecommunication Station
TV Transfer Station
Monitoring Station (military, hydrology, observatory)
Water-pumping Station
Shipping

Certificate of Hummer 50kW grid wind turbine generator:
