Help Center3M Scotch 5952 VHB Foam Tape
Related Products
Specifications
1Material: Acrylic2.Release Liner: red PE film
3.Tape Thickness:50 mil
4.Core: 3" diameter
5.Feature: Waterproof
Application:

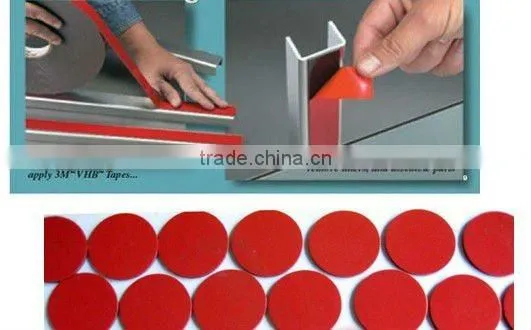

Make sure surface is wiped clean and is dry. Apply tape and pressure to item being bonded. Tape will bond immediately, within maximum strength reached in 5 hours.it is design for fix two aluminum board,or glass board,or acrylic board together
Specification:
1Material: Acrylic Foam
2.Release Liner: red PE film
3.Tape Thickness:50 mil
4.Core: 3" diameter
5.Feature: heavy duty mounting
6.Carrier/Backing: acrylic foam
3M VHB Tape provides the convenience and simplicity of a tape fastener and are ideal for use in many interior and exterior bonding applications. In many situations, they can replace rivets, spot welds, liquid adhesives and other permanent fasteners. These VHB tapes are made with acrylic foam which is viscoelastic in nature. This gives the foam energy absorbing and stress relaxing properties which provides these tapes with their unique characteristics (see /?v=7OtrDvDvF5I for a video showcasing its properties). The acrylic chemistry provides outstanding durability performance. The tapes have excellent durability and excellent solvent and moisture resistance.
3M 5952 Heavy Duty Mounting VHB Tape is black, double-coated VHB adhesive tape with an acrylic foam core. A modified acrylic adhesive is on both sides of very conformable foam which provides adhesion to the broadest range of substrates/surfaces, including most powder coated paints. Comes on a red film release liner
- Adhesive: modified acrylic
- Carrier/Backing: closed cell acrylic foam
- Release Liner: red PE film
- Thickness: 50 mils (including liner) 45 mils (without liner) 5 mils (liner)
- Adhesion: 320 ounces per inch (to stainless steel)
- Tensile Strength: 90 pounds per inch (longitudinal)
- Application Temperature: 50°F to 100°F
- Service/Operating Temperature: up to 250°F
- Density: 37 pounds per cubic foot
- Dynamic Overlap Shear: 80 pounds per square inch
- Core: 3" diameter
