Home > Chemicals > Rubber & Rubber Products > Rubber Tube, Pipe & Hose > Hydraulic Hose SAE100 R13

Hydraulic Hose SAE100 R13

Name: Hydraulic Hose SAE100 R13
Brand: orientflex
SKU: 122465335
Availability: InStock

US$ 5.32 - 17.46 MOQ: 1000 Meters

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Brand Name:

orientflex

Model Number:

SAE100 RAT

Contact Supplier Request Quote Chat Now

Hebei Orient Rubber & Plastic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Brand Name orientflex

Model Number SAE100 RAT

product description

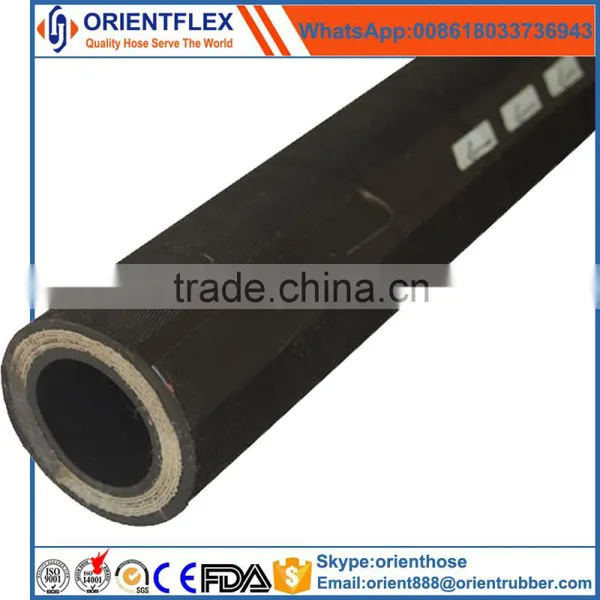

hydraulic hose SAE100 R13

Recommended For : Extremely high pressure, high impulse hydraulic applications. This hose is designed to meet all requirements of SAE 100R13 specifications and performance requirements of EN 856 4SH, EN856 4SP and EN856 R13. Compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids.
Tube :Black, oil-resident synthetic rubber(Nitrile)

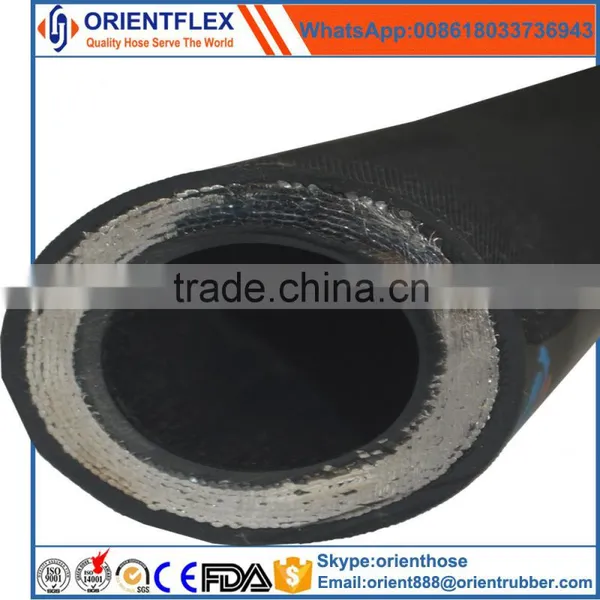

Reinforcement : Four(six for 1 1/4”, 1 1/2” and 2”) alternating layers of spiraled high-tensile steel wire.
Cover : Black, oil-resistant synthetic(Nitrile).
Temperature Range : -40℉ to +250℉ (-40℃ to +121℃)
specification

Item Code	Hose ID		Hose O.D.		Working Pressure		Min. Burst Pressure		Min. Bend Radius		Weight
Item Code	inch	mm	inch	mm	psi	MPa	psi	MPa	inch	mm	kg/m	lb/ft
R13-10	3/8	9.5	0.94	23.8	10000	69	40000	276	5.98	152	1.1	0.74
R13-13	1/2	12.7	1.06	27	7500	51.2	30000	207	7.87	200	1.35	0.91
R13-16	5/8	15.9	1.09	27.7	5000	35	20000	140	8.66	220	1.55	1.04
R13-19	3/4	19	1.26	32	5000	35	20000	140	9.45	240	1.65	1.11
R13-25	1	25.4	1.54	39.2	5000	35	20000	140	11.81	300	2.25	1.51
R13-32	1 1/4	31.8	1.96	49.8	5000	35	20000	140	16.54	420	3.6	2.42
R13-38	1 1/2	38.1	2.26	57.3	5000	35	20000	140	19.69	500	4.75	3.19
R13-51	2	50.8	2.83	71.9	5000	35	20000	140	24.8	630	6.9	4.64

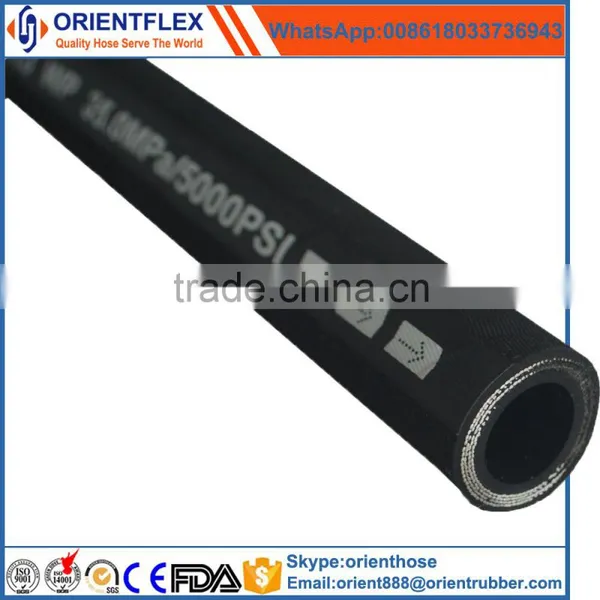

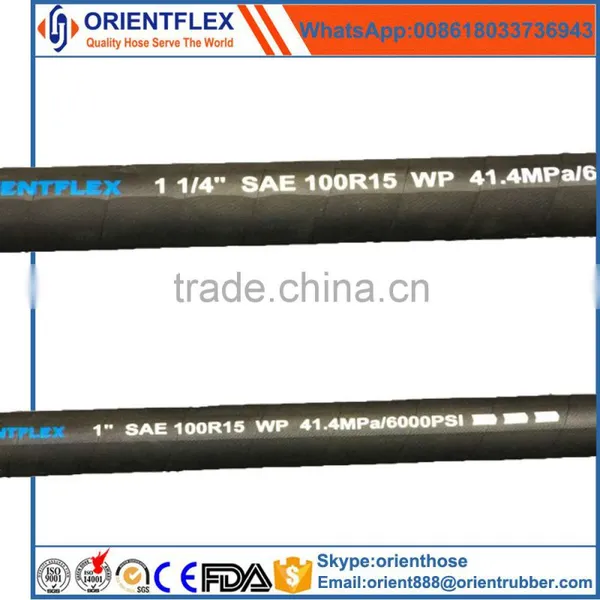

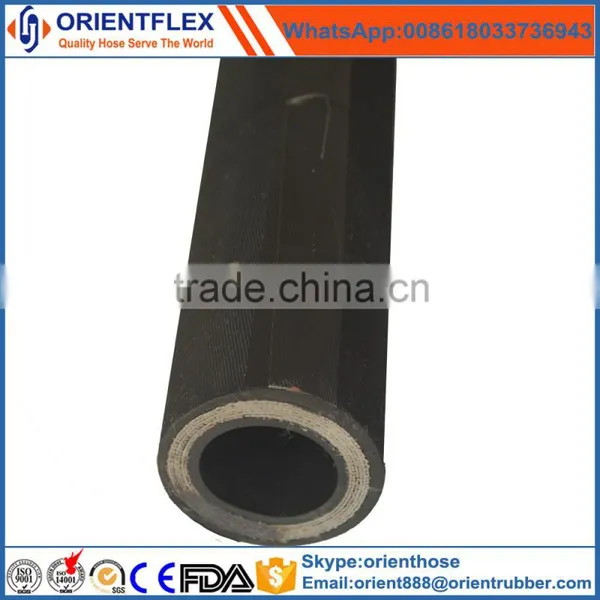

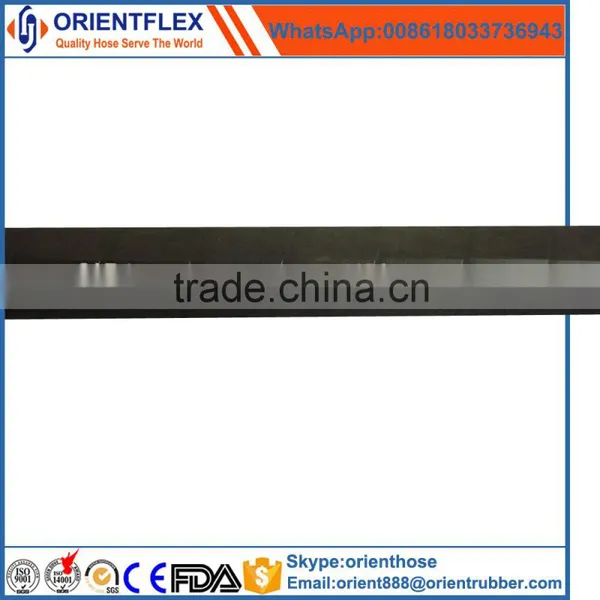

Product show:

company information

ORIENTFLEX is a professional manufacturer of rubber and plastic hose in Hebei, China.

Established in 2006, OrientFlex have more than 240 experienced workers, own a strong

R & D team, including 16 experienced engineers.

Advantage:

1). Advanced production equipment

2). ISO 14000 / ISO 9000 / Quality certificate

3). Strict quality inspection, Strong R&D team

4). Environmental friendly without pollution

5). 10 years manufacturing experience, strong and experienced export team

Show:

ORIENTFLEX has a strong sales and service team of 20 people, with more than five years experience in foreig
trade, to provide professional services for customer.

ORIENTFLEX has advanced production facilities, including 13 high-speed fiber braid machines,15 high-speed steel wire braid machines,2 steel wire spiral production lines.45 PVC hose production lines.We have introduced VP brand Industrial hose production line from Italy and Maillefer extrusion line from Switzerland.

ORIENTFLEX has strong quality control team,we set up advanced laboratory.Before mass production,we test each batch raw material.After production,we test each hose to guarantee 100% qualification.

ORIENTFLEX has three warehouses.

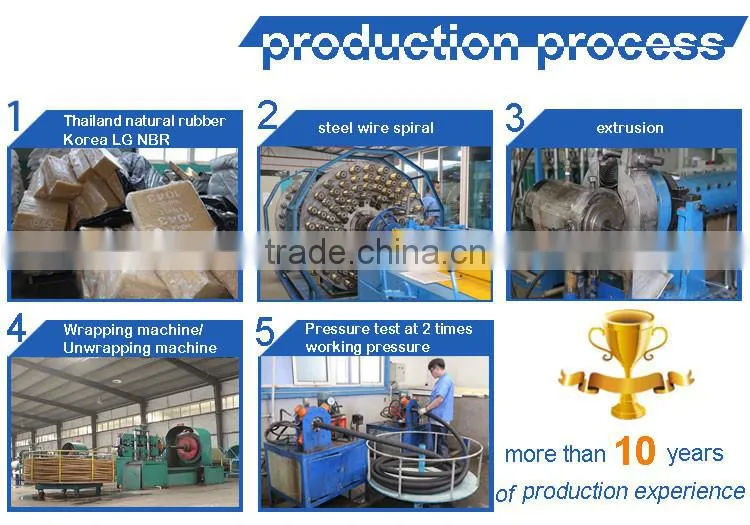

Production process

Good quality materials make our hose steady performance.
Our factory introduce advanced teconology and equipment to make the bets quality hydraulic hose SAE100 R13 . We have much experience of exporting and we produce the best quality hydraulic hose.

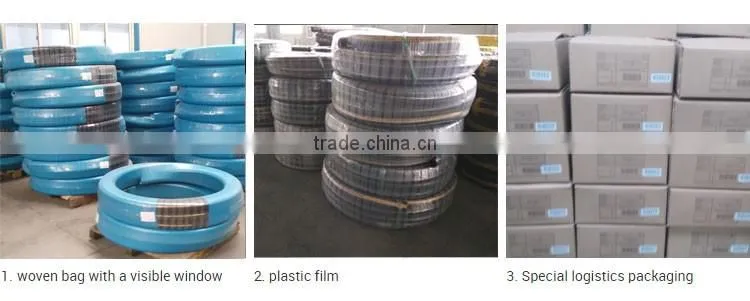

Packing

Packing:After finishing the hose production, we will pack the hose.
In general, the packing will use woven bag and plastic film.
Special packing is available according to customers' requirements.

certificate

Certifications:All Product Meet The Standard Of ISO And The Requirement Of API.

For More Certifications And about ORIENT Please See The Below Link:

https://img13.fr-trading.com/custom_page_1/About_Orient.html

market export

Market &Trade show: Our product has exported to over 30 countries,including the United States, Britain, Brazil, Russia and so on. And we participate in overseas exhibitions every year.
