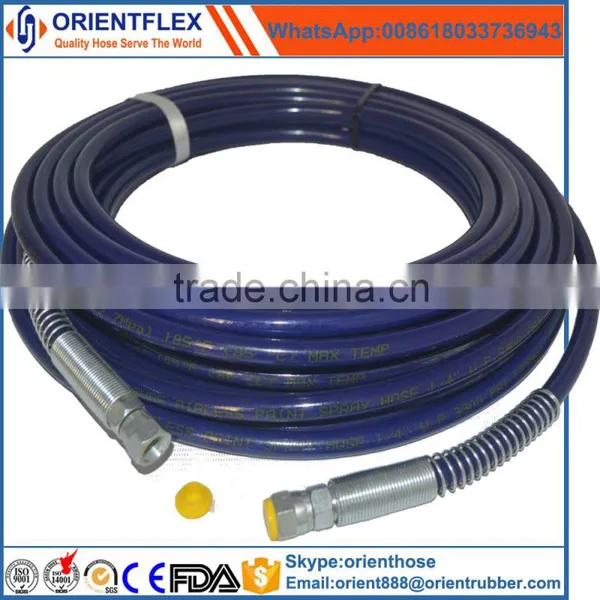

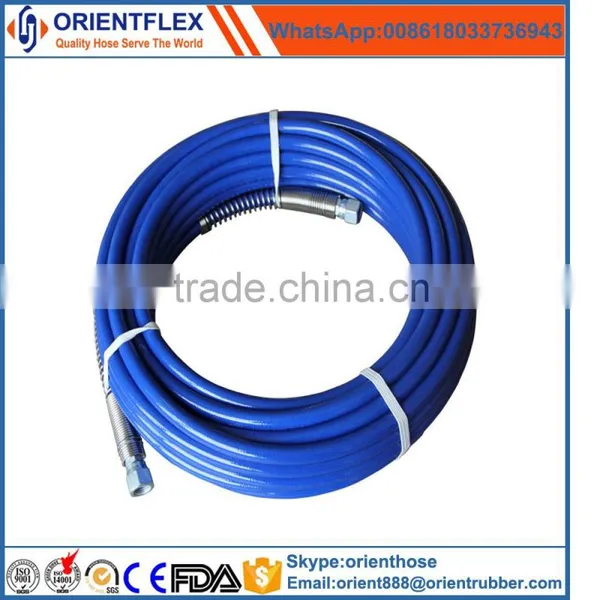

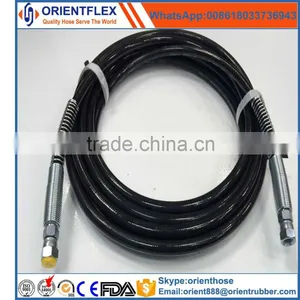

high presssure hydraulic hose paint spray hose
high presssure hydraulic hose paint spray hose
Inner tube :Internal core in polyamide
Reinforcement: 1 or 2 high tensile aramidic braid or steel wire braid
Outer tube: pin pricked polurethane high abrasion resistance
Safety factor: 3:1
Application :high pressure airless spray systems,chemical resistance solvents and
aggressive fluids
Temperature range :-40℃ (-40 °F) - 100℃ (+212 °F)max.temperature recommended for water base hydraulic fluids and air : +70℃ (+ 158°F)
Specification
| Item code | Inter Diameter | Outer Diameter | Working pressure | Min Burst Pressure | Min Bend Radius | Weight | |||||
| mm | inch | mm | inch | MPa | psi | MPa | psi | mm | Kg/m | ||
| SPSH6.4-1 | 6.3 | 1/4 | 12.5 | 0.49 | 22.7 | 3292 | 68.1 | 9874.5 | 30 | 0.13 | |
| SPSH6.4-2 | 6.3 | 1/4 | 14.0 | 0.55 | 40 | 5800 | 120 | 17400 | 55 | 0.21 | |
| SPSH6.4-2 | 6.3 | 1/4 | 15.5 | 0.61 | 50 | 7250 | 150 | 21750 | 70 | 0.25 | |
| SPFH8-1 | 8.0 | 5/16 | 13.5 | 0.53 | 22.7 | 3292 | 68.1 | 9874.5 | 75 | 0.21 | |
| SPSH8-2 | 8.0 | 5/16 | 15.0 | 0.59 | 40 | 5800 | 120 | 17400 | 90 | 0.35 | |
| SPSH8-3 | 8.0 | 5/16 | 16.5 | 0.65 | 50 | 7250 | 150 | 21750 | 105 | 0.39 | |
| SPSH10.0-1 | 10.0 | 3/8 | 16.0 | 0.62 | 22.7 | 3292 | 68.1 | 9874.5 | 80 | 0.31 | |
| SPSH10.0-2 | 10.0 | 3/8 | 19.1 | 0.75 | 40 | 5800 | 120 | 17400 | 127 | 0.34 | |
| SPSH10.0-3 | 10.0 | 3/8 | 21.5 | 0.85 | 50 | 7250 | 150 | 21750 | 135 | 0.4 | |

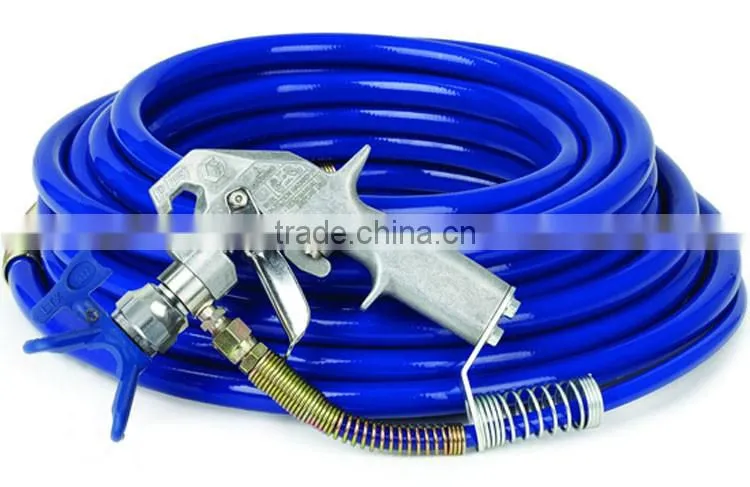

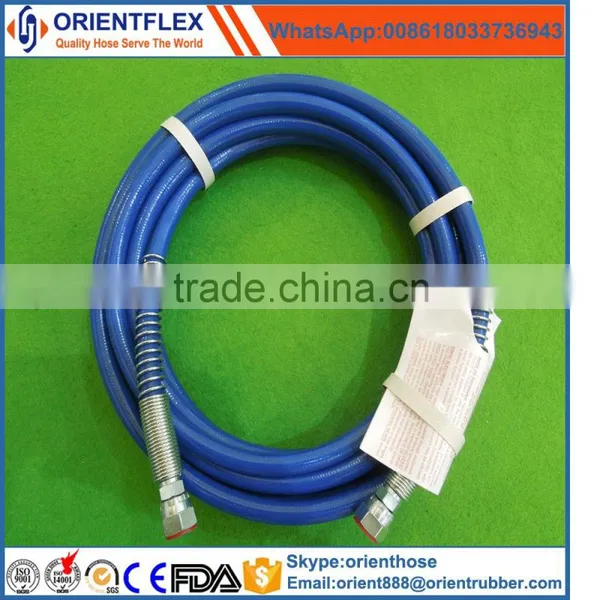

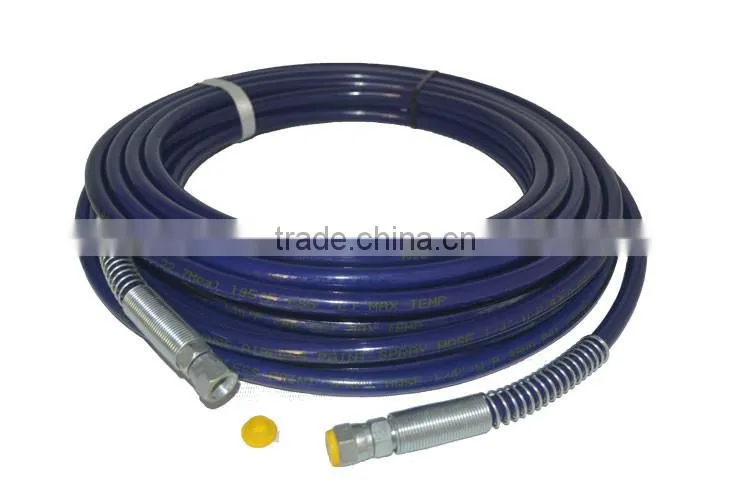

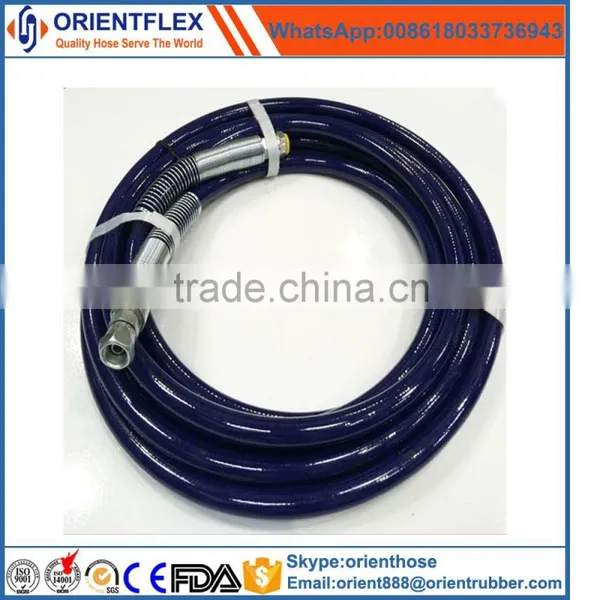

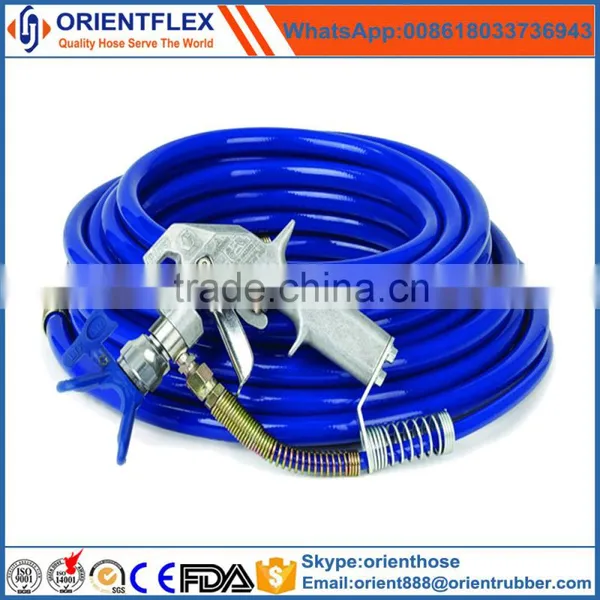

Product show:
ORIENTFLEX is a professional manufacturer of rubber and plastic hose in Hebei, China.
Established in 2006, OrientFlex have more than 240 experienced workers, own a strong
R & D team, including 16 experienced engineers.
Advantage:
1). Advanced production equipment
2). ISO 14000 / ISO 9000 / Quality certificate
3). Strict quality inspection, Strong R&D team
4). Environmental friendly without pollution
5). 10 years manufacturing experience, strong and experienced export team
Show:
ORIENTFLEX has a strong sales and service team of 20 people, with more than five years experience in foreign
trade, to provide professional services for customer.
ORIENTFLEX has advanced production facilities, including 13 high-speed fiber braid machines,15 high-speed steel
wire braid machines,2 steel wire spiral production lines.45 PVC hose production lines.We have introduced VP brand
Industrial hose production line from Italy and Maillefer extrusion line from Switzerland.
ORIENTFLEX has strong quality control team,we set up advanced laboratory.Before mass production,we test each
batch raw material.After production,we test each hose to guarantee 100% qualification.
ORIENTFLEX has three warehouses.
Good quality materials make our hose steady performance.
Our factory introduce advanced teconology and equipment to make the bets quality paint spray hose . We have much experience of exporting and we produce the best quality paint spray hose .

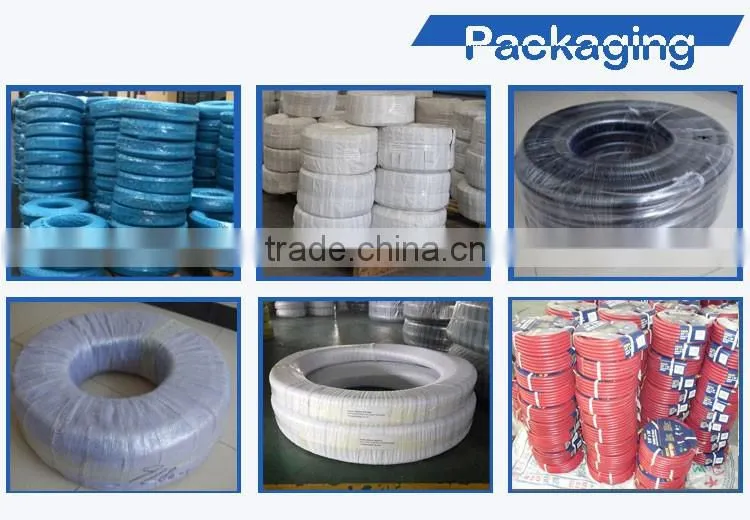

Packing:After finishing the hose production, we will pack the hose.
In general, the packing will use woven bag and plastic film.
Special packing is available according to customers' requirements.
Certifications:All Product Meet The Standard Of ISO And The Requirement Of API.
For More Certifications And about ORIENT Please See The Below Link:
https://img13.fr-trading.com/custom_page_1/About_Orient.html
Market &Trade show: Our product has exported to over 30 countries,including the United States, Britain, Brazil, Russia and so on. And we participate in overseas exhibitions every year.
Skype:orienthose Whatsapp:008618033736943
TEL:+86-311-68008301 Fax: +86-311-68008302
Mobilephone:008618033736943
Email:orient888@orientrubber.com
Add: No298 Zhonghua North Street, Shijiazhuang, Hebei, China
More rubber hose products information Please visit:
https://img13.fr-trading.com/
