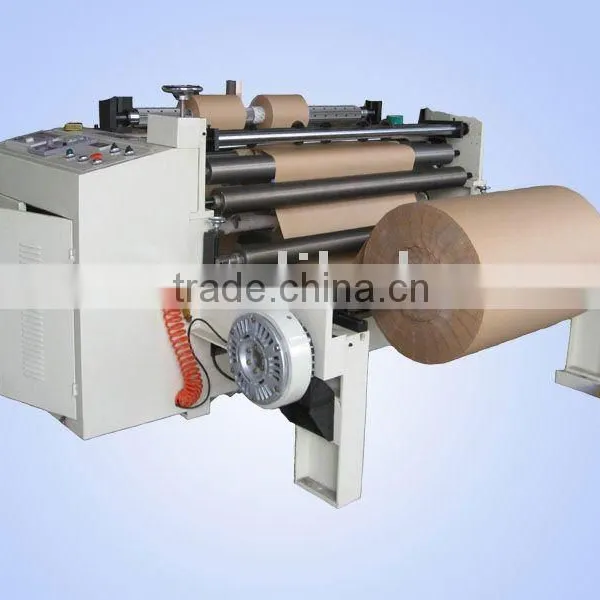

cash register paper roll

Specifications

1.max. feeding dia.:800mm.
2.max. rewinding dia.:350mm.
3.slitting width:8-1200mm.
4.valid width:1200mm.
5.I.D of core:75mm.

1.application:

For slitting and rewinding of many kinds of paper,such as packing paper-white board paper/

white cardboard paper/kraft card paper/kraft paper/corrugating paper/ corrugated paper/cardboard paper/ parchment/machine glazed wrapping paper/ paper cup paper/glass paper/oil proof paper/dampproof paper/transparent paper/ aluminum foil paper brand paper /label paper;printing paper etc.



2.feature:

1) Surface center winding type,winding tension control magnetic power clutch.

2)The feeding shaft adopts magnetic powder for tension control.

3)Up and down round blades are adopted in slitting of basis materials.

4)The structure design is easy operation,simple and safe maintenance.



nical parameters:

Max. Feeding diameter	800mm
Max. Rewinding diameter	350mm
Valid width	1200mm
Slitting width	8-1200mm
Inside diameter of paper core	75mm
Slitting speed	0-60m/min
Slitting tools	Up and down round blade
Voltage	380V 50 HZ



4.equipment allocation:

item	specification	quantity
Rewinding shaft	3''*1400 inflatable shaft	2 pcs
Rewinding mechanism		2 group
The idler pulley for rewinding		1 group
Unwinding shaft	3'' inflatable shaft	2 pcs
10 kg magnetic powder brake	For unwinding	1 group
5 kg magnetic powder clutch	For rewinding	2 group
Up and down shaft	Round blade	Several groups
halo	100*1400mm	Several groups
Main motor	5 HP AC (include inverter and reducer)	1 set
Automatic length indicator	2-step length set	1 group
The install mechanism for raw material		1 group
Maintenance tools	Normal repair tools	1 set

5.warranty:

The Warranty Period for the contract equipment shall be 12 months from the next day after the end of commissioning. If the supplied equipment is found to be defective as a result of faulty materials or workmanship within the Warranty Period, the Seller shall, at its own expenses, rectify or replace defected part of the equipment,the transportation fee for the replace components from the Seller's factory to the buyer's country shall be borne by the seller, the transportation fee for  the replaced components from the buyer's country to the Seller's country shall be the Buyer. Wearing parts and damages due to incorrect operation are not included in the Warranty scope.
