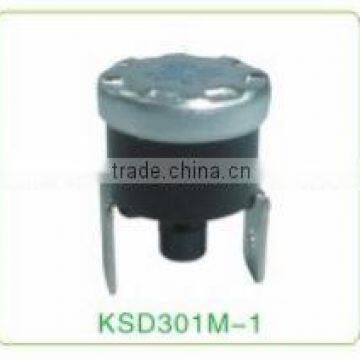

KSD301M-1 Bi'metal Thermostat

Specifications

Specifications

1.ksd301 thermostat
2.Amper:5A-15A
3.Voltage:125V/250V
4.Temperature:45~220
5.High quality and Competitive price

KSD301 series temperature controller is a small bimetal controller with case,which is contacting temperature relays parts.With butterfly bimetal jumping instantly under the temperature ,it will switch on/off the circuit with its elastic stucture.It has the character of stable working temperature ,no more adjustable ,rapid action,long life and less radio interference.

1.manual-reset:Can be built to either open or close its contacts on temperature rise. 2.reliable performace and long service life

3.high-speed reaction

KSD snap action thermostat for thermal protection

1.manual-reset:Can be built to either open or close its contacts on temperature rise.

2.reliable performace and long service life thermostat for thermal protection

3.high-speed reaction thermostat for thermal protection

Specification:

1.Plastic/bakelite type thermostat for thermal protection

Electrical Rating: AC250V(resistive load) 5A10A,15A

Action Temperature:5^oC -170^oC

Tolerance:±5^oC,±3^oC,±2^oC

Insulation resistance :above 100M,500VDC

Difference between open and close Temp:10-100degree(according to the agreement with the user)

Normal electric strength:AC2200V 50Hz/5Sec/0.5mA

Contract resistance:below 50m

Useful life:30000cycles

2.Ceramic type thermostat for thermal protection

Electrical Rating: AC250V,5A10A,15A

Action Temperature:0^oC -250^oC

Tolerance:±5^oC,±10^oC

Insulation resistance :above 100MΩ,500VDC

Difference between open and close Temp:10-100degree(according to the agreement with the user)

Normal electric strength:AC2200V 50Hz/5Sec/0.5mA

Contract resistance:below 50m

Useful life:30000cycles

3.Kind of contact

a.standard(N.C):Normally closed,contactor cuts off with temperature raising up.

b.Normally open:opened within room temperature.Contactor turns on with temperature raising up.

Application:special application in microwave,heating device,electric kettle,coffee machine,etc.As its thermal control function ,it can be used in electronic device and electric pannel for over temperature protection,temperature limit and control use.

Our products have recieved UL, VDE, CQC and ROHS certificate.

4.Certificates:

CQC UL VDE TUV,etc,
