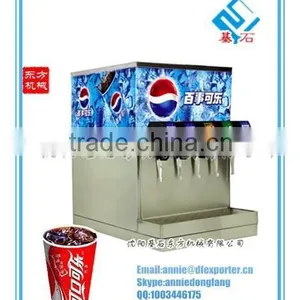

Drink Dispenser , Beverage Dispenser

Coke machine  - Coke now conditioners

3 valves now conditioners

Size: 400mm X 635mm X 700mm

Ancillary:
BIB syrup pumps and fittings 3 (standard)
Gauge group a set of (standard)
Syrup pipes and installed accessories (standard)
Water filter (standard)

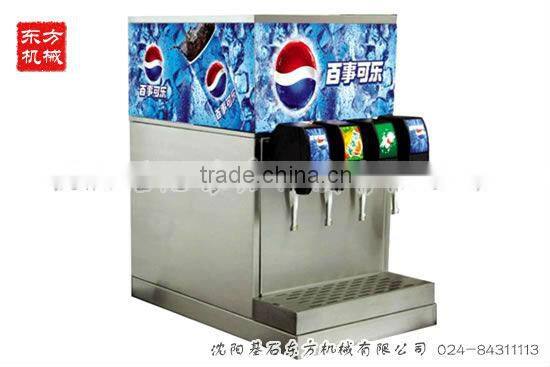

4 valves now conditioners

Size: 400mm X 635mm X 700mm

Ancillary:
BIB syrup pumps and fittings 3 (standard)
Gauge group a set of (standard)
Syrup pipes and installed accessories (standard)
Water filter (standard)

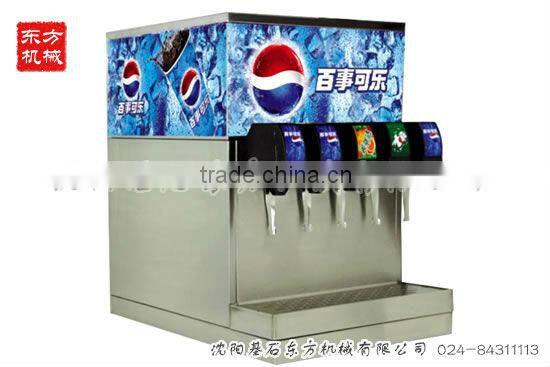

5 valves now conditioners

Size: 400mm X 635mm X 700mm

Ancillary:
BIB syrup pumps and fittings 4 (standard)
Gauge group a set of (standard)
Syrup pipes and installed accessories (standard)
Water filter (standard)

Product performance:
1, compressor start delay means protection voltage change status
2, the electronic level control and carbonated pump out running protection
3, the shift unloading chillers , reducing maintenance time and costs
4, excellent reliability and easy maintenance design
5, the electronic control system to maintain stable performance of the ice sheet

Features:
1, quiet and efficient compressor , radiator, especially with environmentally friendly refrigerant
2, a unique compressor protection devices, fast start-stop , energy -saving
3, advanced water recycling technology , a material degree consistent ice
4, the installation of water pumps, quick discharge
5, a special component products used in line with food hygiene materials
6, double water supply options ( direct drinking bottled purified water )
7, high-performance LED light box , power and durability , dazzling eye-catching
8, two with buttons can be set manually or automatically discharge the material
9, resulting in failure , automatic alarm
10, humanized design , easy operation and management

1, the water filtered through the filter , into the carbonation with carbon dioxide gas is a mixture of carbonated water ;
2, carbonated water and syrup through a separate pipe into the now-conditioners to cool ;
3, cooled carbonated water and syrup through the dispensing valve by mixing after release , a frozen carbonated beverage .
Carbonated drinks (soft drinks ) products under certain conditions, is filled with carbon dioxide gas of beverages, including carbonated beverages , sports drinks and other inflatable specific varieties , not including the carbon dioxide gas produced by fermentation of the drink itself . Carbonated beverages ( soda ) can be divided into juice type , fruit type , cola , low -calorie , other type. Now conditioners are integrated soda machine, a machine while completing treatment , refrigeration , aerated , mixed syrup and carbonated water , etc., is to drink are transferred , recipes easy to adjust the production process .

Carbonated drinks now conditioners works:
1, the water filtered through the filter , into the carbonation with carbon dioxide gas is a mixture of carbonated water ;
2, carbonated water and syrup through a separate pipe into the now-conditioners to cool ;
3, cooled carbonated water and syrup through the dispensing valve by mixing after release , a frozen carbonated

Remarks :
1, 24 ° C condition is super ambient temperature 24 ° C, the water temperature is 24 ° C, a temperature of 24 ° C syrup working conditions ;
2, the discharge capacity is the cup with cup flow 3oz/sec, carbonated beverages at temperatures below 5 ° C for drinks access capability.

....

...
