Home > Products > Wireless Repeater > dcs1800 mobile repeater For outdoor coverage

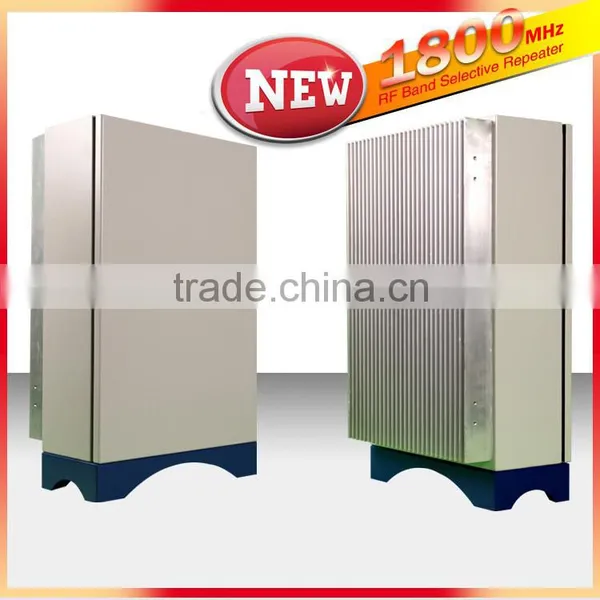

dcs1800 mobile repeater For outdoor coverage
- 1000 Set / Sets per Month
- XIAMEN
- T/T Credit Card
- TETRA450 uhf mobile Signal Repeater
- 3G UMTS 2100 mobile signal 3g repeater/amplifier
- GSM DCS WCDMA CDMA TETRA TD-SCDMA series Channel Selective Repeater
- Professional GSM 850 mhz Frequency Shift wireless Repeater
- gsm fiber optic repeater 850 with rs232 or rj45 port
- Repetidor CDMA 850MHz Repeater Amplifier 850MHz 37dBm Signal Amplifier
Product Details
Place of Origin: | Fujian, China | Brand Name: | KingTone | Model Number: | KT-MDF18/0-B75-V1 ;KT-SDF18/43-B75-V1 |
Packaging Details
Carton with safety foam,or to be advised.
Product Description
gsm 1800mhz mobile signal repeater Function:
Main Features:
• low noise figure
• flexible network construction
• allpurpose application
• large coverage range and high compatibility
• convenient surveillance
• small size and weight, convenient installation, low power consumption
gsm 1800mhz mobile signal repeater Technical Specifications:
Type | KT-DSRC* | ||||
Frequency | UL:1710~1735MHz DL:1805~1830MHz UL:1735~1755MHz DL:1830~1850MHz | ||||
Output Power | 33dBm | 37dBm | 40dBm | 43dBm | |
Gain | 90-95dB | ||||
Gain Adjust Range | ≥30dB;1dB/step | ||||
AGC Range | ≥25dB | ||||
IMD3 | ≤-50dBc | ≤-45dBc | |||
Noise Figure | ≤5dB | ||||
Ripple in Band | ≤3dB | ||||
Time Delay | ≤10μs | ||||
EVM | ≤12.5%(RMS) | ||||
PCDE | ≤-35 dB | ||||
ACRR | fc-5MHz | ≤-45dBc/30KHz | |||
fc+5MHz | ≤-45dBc/30KHz | ||||
fc-10MHz | ≤-50dBc/30KHz | ||||
fc+10MHz | ≤-50dBc/30KHz | ||||
Spectrum mask | Meet ETSI specification | ||||
Spurious Emission | 9KHz-1GHz:≤-36dBm/30KHz;1GHz-12.75GHz:≤-30dBm/30KHz | ||||
Port Impedance | 50Ω | ||||
VSWR | ≤1.5 | ||||
Monitoring Mode | Local;Remote(Optional) | ||||
Power Supply | AC220V(Normal); AC110V or DC48V or Solar Powered(Optional) | ||||
Power consumption | 130W | 190W | 240W | 300W |
Mechanical Specifications
Weight | 25kg | 25kg | 35kg | 35kg |
Dimension | 590*370*250 mm | 670*420*210 mm | ||
Installation mode | Wall installation (normal);Pole installation(optional) | |||
Connector | RF:N female; Optical:FC/APC |
Environment Specifications
Case | IP65(Slave) |
Temperature | -25~+55°C(Slave) 0°C~+55°C(Master) |
Humidity | 5%~95% (Slave) |
gsm 1800mhz mobile signal repeater Applications:
To expand signal coverage of signal blind areas where signal is weak or unavailable.
Outdoor: Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages etc.
Indoor: Hotels, Exhibition Centers, Basements, Shopping Malls, Offices, Packing Lots etc.
gsm 1800mhz mobile signal repeater Application Diagram:
Frequency range list for our repeaters :
Support System | Frequency Range | Output Power |
GSM900MHZ | 890-915MHz/935-960MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
DCS1800MHz | 1710-1785MHz/1805-1880MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
PCS1900MHz | 1895-1910MHz/1975-1990MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
GSM850MHz | 824-849MHz/869-894MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
CDMA450MHz | 450-457.5MHz/460-467.5MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
CDMA800MHz | 824-849MHz/869-894MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
CDMA1900MHz | 1880-1890MHz/1960-1970MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
UMTS850MHz | 824-849MHz/869-894MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
UMTS2100MHz | 1920-1980MHz/2110-2170MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
GSM900/1800MHZ | 890-915MHz/935-960MHz 1710-1785MHz/1805-1880MHz | 2W/5W/10W/20W/ |
GSM850/1900MHZ | 824-849MHz/869-894MHz 1880-1890MHz/1960-1970MHz | 2W/5W/10W/20W |
GSM900/UMTS2100 | 890-915MHz/935-960MHz 1920-1980MHz/2110-2170MHz | 2W/5W/10W/20W/ |
Our repeater support above frequency range .
Our present manufacturing service:
1. Single-band repeaters of LTE/GSM/CDMA/PCS/DCS/WCDMA
2. Dual-band repeater of GSM/DCS; GSM/WCDMA; CDMA/PCS;
3. Tri-band repeater of GSM/DCS/WCDMA
4,Trunk Amplifier
5. All kind of Antenna/Splitter/Connector/Cable
Question: I work in an office building where my cell phone coverage in certain areas, including my office, is non-existent or spotty at best. How can I improve my coverage?
Answer: The requirement for reliable, always-on cell phone coverage within the office environment is increasing dramatically. It is not unusual to encounter trouble spots within a building where cell phone signals are weak or non-existent.
Kingtone repeater provides affordable and clear coverage to those trouble spots. The unit can be easily deployed and provides a coverage range of up to 100,000 square feet. Multiple units can be easily deployed to cover office areas and working locations.
Kingtone repeater can be deployed even without access to the roof or outside.
Frequency range list of our cellular repeater :
Support System | Frequency Range | Output Power |
GSM900MHZ | 890-915MHz/935-960MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
DCS1800MHz | 1710-1785MHz/1805-1880MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
PCS1900MHz | 1895-1910MHz/1975-1990MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
GSM850MHz | 824-849MHz/869-894MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
CDMA450MHz | 450-457.5MHz/460-467.5MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
CDMA800MHz | 824-849MHz/869-894MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
CDMA1900MHz | 1880-1890MHz/1960-1970MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
UMTS850MHz | 824-849MHz/869-894MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
UMTS2100MHz | 1920-1980MHz/2110-2170MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
GSM900/1800MHZ | 890-915MHz/935-960MHz 1710-1785MHz/1805-1880MHz | 2W/5W/10W/20W/ |
GSM850/1900MHZ | 824-849MHz/869-894MHz 1880-1890MHz/1960-1970MHz | 2W/5W/10W/20W |
GSM900/UMTS2100 | 890-915MHz/935-960MHz 1920-1980MHz/2110-2170MHz | 2W/5W/10W/20W/ |
Question: I work in an office building where my cell phone coverage in certain areas, including my office, is non-existent or spotty at best. How can I improve my coverage?
Answer: The requirement for reliable, always-on cell phone coverage within the office environment is increasing dramatically. It is not unusual to encounter trouble spots within a building where cell phone signals are weak or non-existent.
Kingtone repeater provides affordable and clear coverage to those trouble spots. The unit can be easily deployed and provides a coverage range of up to 100,000 square feet. Multiple units can be easily deployed to cover office areas and working locations.
Kingtone repeater can be deployed even without access to the roof or outside.
Question: I frequently work from my home office, but my cell phone doesn't.
Answer: A cell phone is critical when you work at home, because it provides a ready link to the office and customers – without giving out your home number. But even in urban areas, hills or buildings often block wireless signals.
Kingtone repeater can be easily deployed to provide coverage throughout your house. In a home, the donor unit is generally deployed outside – for example, under the eaves. Because it is more sensitive than your phone and is mounted higher up, it can usually detect signals that your phone can't. The coverage range of 15,000 to 50,000 square feet (2,000 to 4,600 square metres) is adequate for most homes.
Question: I live in a rural area. Rather than having a second phone line for work, I'd like to use my cell phone, but it only works outside.
Answer: Signals in many rural areas are marginal and cannot penetrate the walls of your home. Kingtone repeater can be easily deployed to provide coverage throughout your house. In a home, the donor unit is generally deployed outside – for example, under the eaves. Because it is more sensitive than your phone and is mounted higher up, it can usually detect signals that your phone can't. The coverage range of 15,000 to 50,000 square feet (2,000 to 4,600 square metres) is adequate for most homes.
Question: When I'm at the cottage, I'd like to stay in touch, but if I publish my cottage number, everyone will call. I'd like to just use my cell phone. Can you help?
Answer: Signals in many cottage areas are marginal and cannot penetrate the walls of your cottage. Kingtone repeater can be easily deployed to provide coverage throughout your cottage. In a cottage, the donor unit is generally deployed outside – for example, under the eaves or on a utility pole. Because it is more sensitive than your phone and is mounted higher up, it can usually detect signals that your phone can't. The coverage range of 15,000 to 50,000 square feet (2,000 to 4,600 square metres) is adequate for most cottages.
You get the privacy of your cottage and the convenience of your cell phone. Just remember to turn it off sometimes
1. Q: What is MOQ(mini Order Quantity)
A: In general, it is 100pcs. According situation, it is negotiable.you can also place sample order.
2. Q: do you accept Customized?
A: yes,we did produce as customer requirement ,OEM & ODM are welcomed.MOQ of customized order should be 1000pcs
3. Q: Could you offer free sample to test?
A: Yes, sure. For regular VIP agency we offer free sample when New Products Launch,for New customer you pay the sample fee first when your Order reach required amount we minus the sample Cost for you.
4. Q: What payment terms you can accept ?
A: We support TT /Western Union /Paypal
Welcome to our website : for more updated information .
welcome you to visit our company website: , for more information .
My contact info :
Kingtone, connecting the world seamlessly ! | |||||
| |||||
|
Company Profile
Established in 2006, Kingtone is a high-tech enterprise specialized in developing, producing and selling wireless communication equipments and microwave functional module, such as Repeater for cell phone network, Mobile phone Jammer ,Handheld Transceivers, Vehicle Radio,Marine Radios etc.. Located in Quanzhou City of Fujian Province, we enjoy comfortable environment and convenient transportation. Covering an area of 1710 square meters, our factory is equiped with cutting-edge spectral analyzer, network analyzer, noise figure meter and signal generator, and operating under strict QC guidelines to guarantee high-quality products at competitive prices.
We also deal in high-quality alarm system. Our products conform to international standards, such as CE, GS, CE, EMC, UL and CSA. Meanwhile, OEM and ODM orders are welcome. We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build long and successful business relationships with us.
