GSM1900MHz mobile cell phone signal repeater 33dBm 37dBm 40dBm 43dBm 46dBm 2W-40W

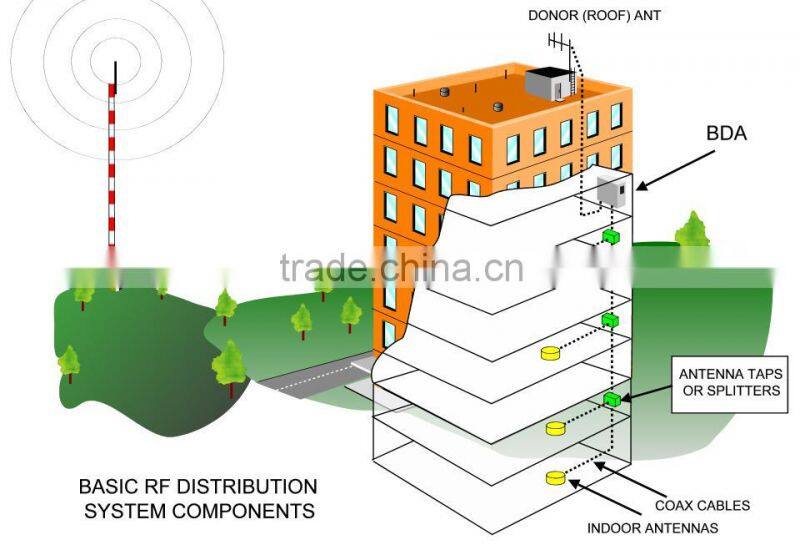

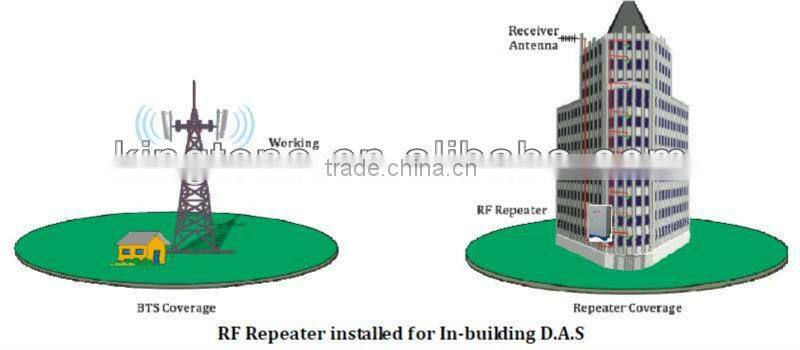

Kingtone Repeaters system is designed to solve problems of weak mobile signal,
which is much cheaper than adding a new Base Station (BTS). Main operation of RF
Repeaters system is to receive low-power signal from BTS via radio frequency
transmission and then transmit the amplified signal to the areas where network
coverage is inadequate. And the mobile signal is also amplified and transmitted to the
BTS via the opposite direction.
- High linearity PA; High system gain;
- Intelligent ALC technology;
- Full duplex and high isolation from uplink to downlink;
- Automatic Operation convenient operation;
- Integrated technique with reliable performance;
- Local and remote monitoring (optional) with automatic fault
- alarm &remote control;
- Weatherproof design for all-weather installation;
GSM1900MHz mobile cell phone signal repeater 33dBm 37dBm 40dBm 43dBm 46dBm 2W-40W
Application:
To expand signal coverage of fill signal blind area where signal is weak
or unavailable.
Outdoor: Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining
Districts, Villages etc.
Indoor: Hotels, Exhibition Centers, Basements, Shopping
Malls, Offices, Packing Lots etc.
It is mainly applicable to such case:
The repeater can find an installation place which can receive pure BTS signal at
strong enough level as the Rx Level in repeater site should be more than70dBm;
And can meet the requirement of antenna isolation to avoid self-oscillation.
Technical specification
Items |
Testing Condition |
Specification |
||
Uplink |
Downlink |
|||
Working Frequency(MHz) |
Nominal Frequency |
1850~1910MHz |
1930~1990MHz |
|
Gain(dB) |
Nominal Output Power-5dB |
95±3 |
||
Output Power (dBm) |
WCDMA modulating signal |
33 |
40 |
|
ALC (dBm) |
Input Signal add 20dB |
Po≤±1 |
||
Noise Figure (dB) |
Working in-band(Max. Gain) |
≤5 |
||
Ripple in-band (dB) |
Nominal Output Power -5dB |
≤3 |
||
Frequency Tolerance (ppm) |
Nominal Output Power |
≤0.05 |
||
Time Delay (us) |
Working in-band |
≤5 |
||
Peak Phase Error(°) |
Working in-band |
≤20 |
||
RMS Phase Error (°) |
Working in-band |
≤5 |
||
Gain Adjustment Step (dB) |
Nominal Output Power -5dB |
1dB |
||
Gain Adjustment Range(dB) |
Nominal Output Power -5dB |
≥30 |
||
Gain Adjustable Linear(dB) |
10dB |
Nominal Output Power -5dB |
±1.0 |
|
20dB |
Nominal Output Power -5dB |
±1.0 |
||
30dB |
Nominal Output Power -5dB |
±1.5 |
||
Inter-modulation Attenuation (dBc) |
Working in-band |
≤-45 |
||
Spurious Emission(dBm) |
9kHz-1GHz |
BW:30KHz |
≤-36 |
≤-36 |
1GHz-12.75GHz |
BW:30KHz |
≤-30 |
≤-30 |
|
VSWR |
BS/MS Port |
1.5 |
||
Frequency range list for our repeaters :
Support System |
Frequency Range |
Output Power |
GSM900MHZ |
890-915MHz/935-960MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
DCS1800MHz |
1710-1785MHz/1805-1880MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
PCS1900MHz |
1895-1910MHz/1975-1990MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
GSM850MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA450MHz |
450-457.5MHz/460-467.5MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA800MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA1900MHz |
1880-1890MHz/1960-1970MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
UMTS850MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
UMTS2100MHz |
1920-1980MHz/2110-2170MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
GSM900/1800MHZ |
890-915MHz/935-960MHz 1710-1785MHz/1805-1880MHz |
2W/5W/10W/20W/ |
GSM850/1900MHZ |
824-849MHz/869-894MHz 1880-1890MHz/1960-1970MHz |
2W/5W/10W/20W |
GSM900/UMTS2100 |
890-915MHz/935-960MHz 1920-1980MHz/2110-2170MHz |
2W/5W/10W/20W/ |
Our repeater support above frequency range .
Our present manufacturing service:
1. Single-band repeaters of LTE/GSM/CDMA/PCS/DCS/WCDMA
2. Dual-band repeater of GSM/DCS; GSM/WCDMA; CDMA/PCS;
3. Tri-band repeater of GSM/DCS/WCDMA
4,Trunk Amplifier
5. All kind of Antenna/Splitter/Connector/Cable
Question: I work in an office building where my cell phone coverage in certain areas, including my office, is non-existent or spotty at best. How can I improve my coverage?
Answer: The requirement for reliable, always-on cell phone coverage within the office environment is increasing dramatically. It is not unusual to encounter trouble spots within a building where cell phone signals are weak or non-existent.
Kingtone repeater provides affordable and clear coverage to those trouble spots. The unit can be easily deployed and provides a coverage range of up to 100,000 square feet. Multiple units can be easily deployed to cover office areas and working locations.
Kingtone repeater can be deployed even without access to the roof or outside.
