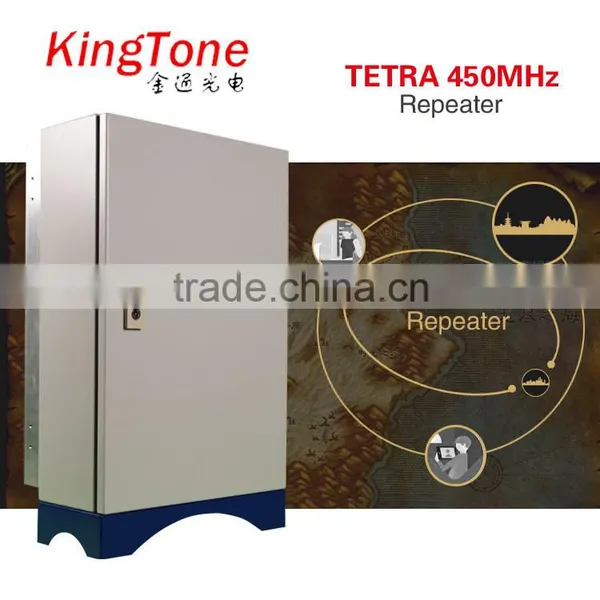

Tetra Repeater 380MHz 450Mhz (BDA) Bi-Directional Amplifiers for In-Building and Tunnel Communication Systems
Kingtone Tetra Repeater 380MHz 450Mhz (BDA) Bi-Directional Amplifiers for In-Building and Tunnel Communication Systems is designed to solve problems of weak mobile signal, which is much cheaper than adding a new Base Station (BTS). Main operation of RF Repeaters system is to receive low power signal from BTS via radio frequency transmission and then transmit the amplified signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and transmitted to the BTS via the opposite direction.
450Mhz tetra repeater mobile wireless repeater outdoor rf repeater made in china
Main Features
- High linearity PA; High system gain;
- Intelligent ALC technology;
- Full duplex and high isolation from uplink to downlink;
- Automatic Operation convenient operation;
- Integrated technique with reliable performance;
- Local and remote monitoring (optional) with automatic fault alarm &remote control;

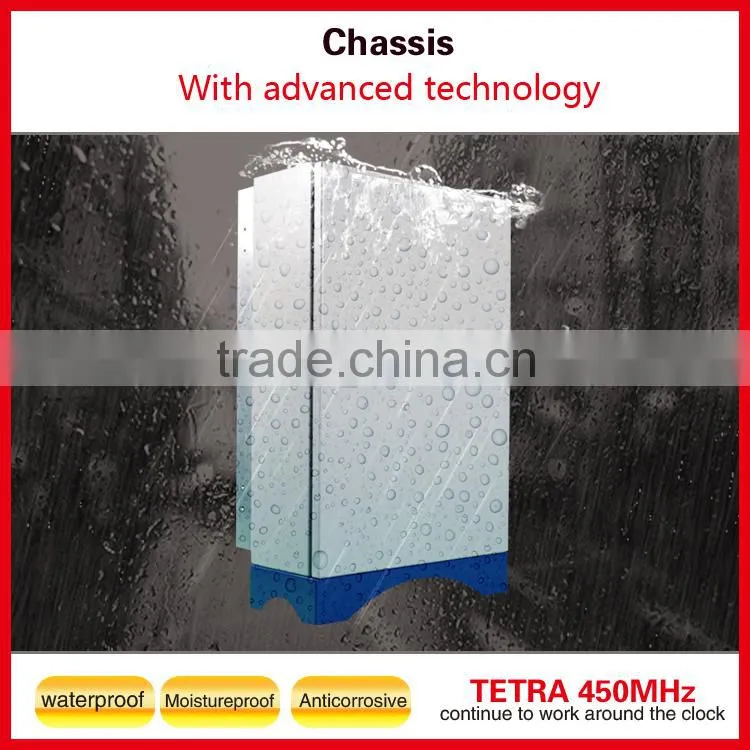

- Weatherproof design for all-weather installation;
Applications

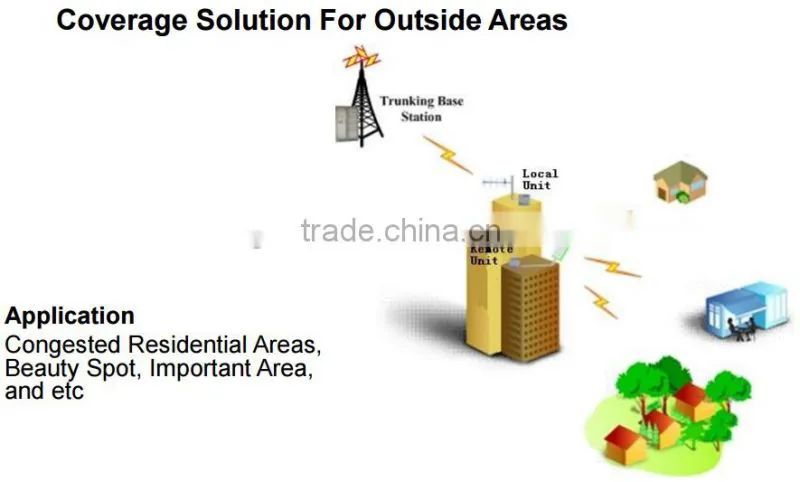

- To expand signal coverage of fill signal blind area where signal is weak or unavailable.

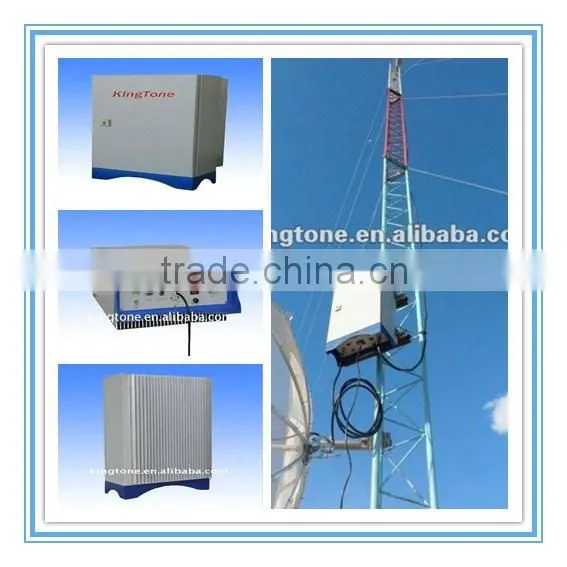

- Outdoor: Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages etc.

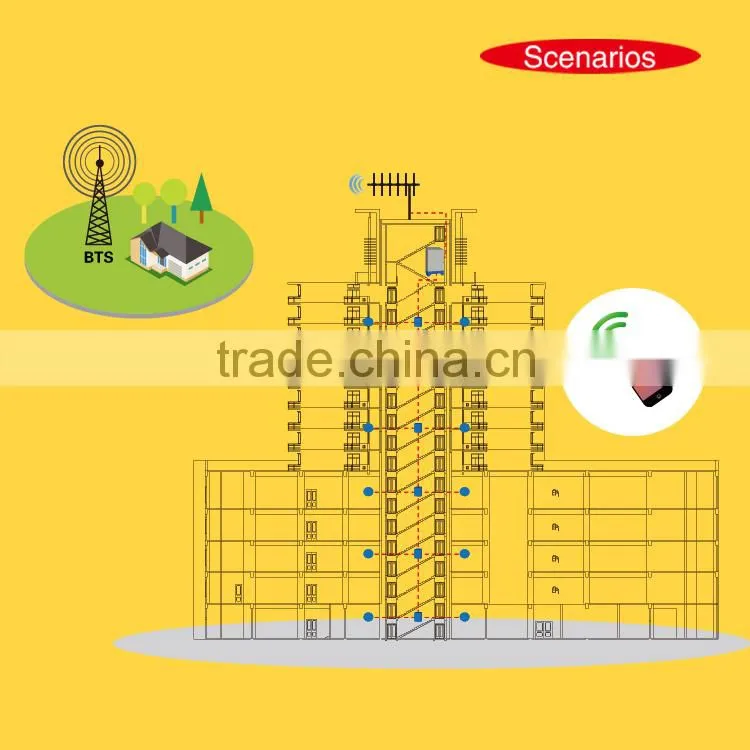

- Indoor: Hotels, Exhibition Centers, Basements, Shopping
- Malls, Offices, Packing Lots etc.
- It is mainly applicable to such case:

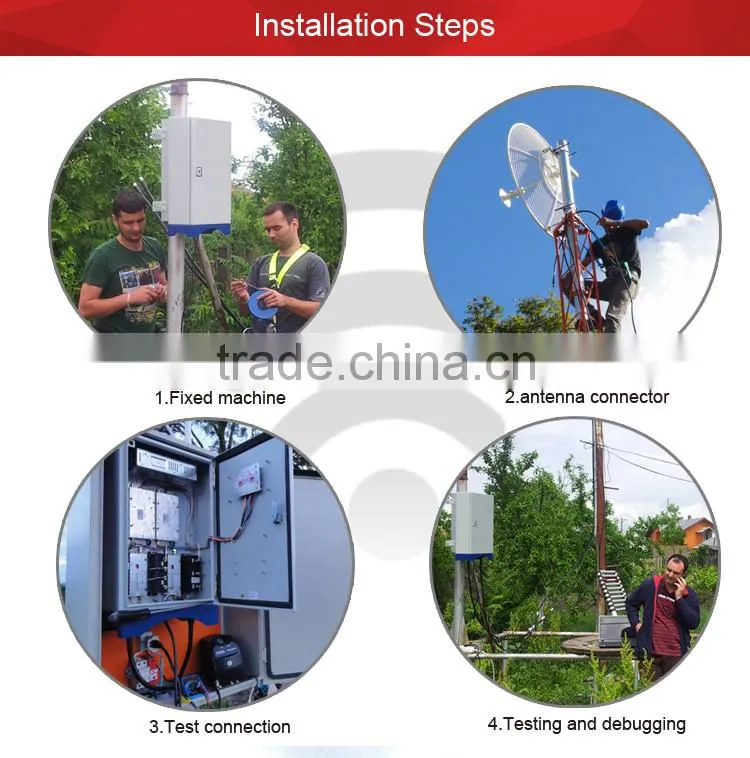

- The repeater can find an installation place which can receive pure BTS signal at strong enough level as the Rx Level in repeater site should be more than 70dBm;
- And can meet the requirement of antenna isolation to avoid self oscillation.
450Mhz tetra repeater mobile wireless repeater outdoor rf repeater made in china
Technical Specifications
Items |
Testing Condition |
Specification |
MEMO |
|||
Uplink |
Downlink |
|||||
Working Frequency(MHz) |
Nominal Frequency |
450 – 455 MHz |
460 – 465MHz |
Detail Frequency and band can be customed |
||
Gain(dB) |
Nominal Output Power-5dB |
90±3 |
|
|||
Output Power (dBm) |
GSM modulating signal |
37 |
43 |
|
||
ALC (dBm) |
Input Signal add 20dB |
Po≤±1 |
|
|||
Noise Figure (dB) |
Working in-band(Max. Gain) |
≤5 |
|
|||
Ripple in-band (dB) |
Nominal Output Power -5dB |
≤3 |
|
|||
Frequency Tolerance (ppm) |
Nominal Output Power |
≤0.05 |
|
|||
Time Delay (us) |
Working in-band |
≤5 |
|
|||
Gain Adjustment Step (dB) |
Nominal Output Power -5dB |
1dB |
|
|||
Gain Adjustment Range(dB) |
Nominal Output Power -5dB |
≥30 |
|
|||
Gain Adjustable Linear(dB) |
10dB |
Nominal Output Power -5dB |
±1.0 |
|
||
20dB |
Nominal Output Power -5dB |
±1.0 |
|
|||
30dB |
Nominal Output Power -5dB |
±1.5 |
|
|||
Spurious Emission(dBm) |
9kHz-1GHz |
BW:30KHz |
≤-36 |
≤-36 |
|
|
|
|
|
|
|
||
1GHz-12.75GHz |
BW:30KHz |
≤-30 |
≤-30 |
|
||
VSWR |
BS/MS Port |
1.5 |
|
|||

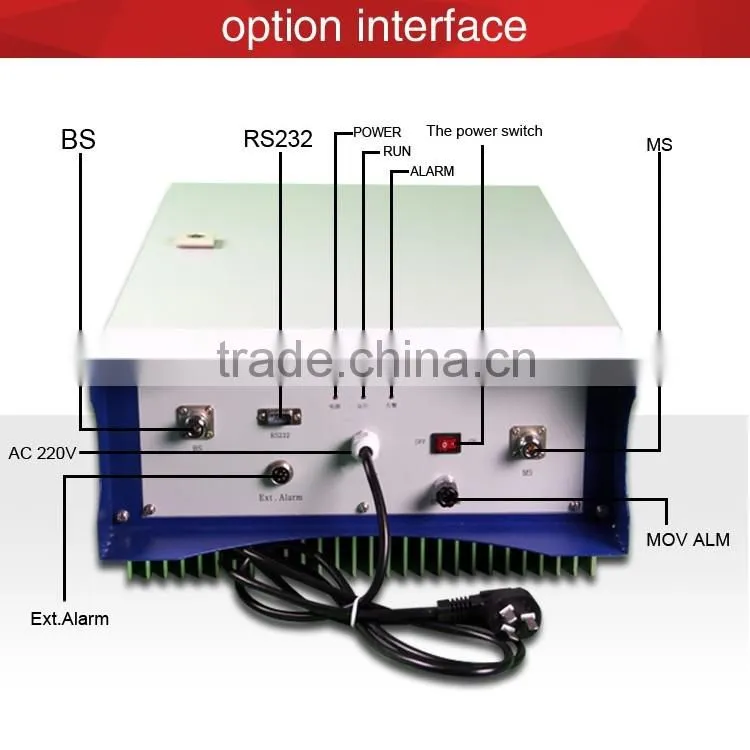

I/O Port |
N-Female |
|
||||
Impedance |
50ohm |
|
||||
Operating Temperature |
-25°C ~+55°C |
|
||||
Product range: GSM / CDMA / DCS / WCDMA / TETRA / LTE Wireless Full Band Repeater, Fiber Optic Repeater, Frequency Shifting Repeater, Digital / Analog Repeater, Trunk Amplifier
Support System |
Frequency Range |
Output Power |
GSM900MHZ |
890-915MHz/935-960MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
DCS1800MHz |
1710-1785MHz/1805-1880MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
PCS1900MHz |
1895-1910MHz/1975-1990MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
GSM850MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA450MHz |
450-457.5MHz/460-467.5MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA800MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA1900MHz |
1880-1890MHz/1960-1970MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
UMTS850MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
UMTS2100MHz |
1920-1980MHz/2110-2170MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
GSM900/1800MHZ |
890-915MHz/935-960MHz 1710-1785MHz/1805-1880MHz |
2W/5W/10W/20W/ |
GSM850/1900MHZ |
824-849MHz/869-894MHz 1880-1890MHz/1960-1970MHz |
2W/5W/10W/20W |
GSM900/UMTS2100 |
890-915MHz/935-960MHz 1920-1980MHz/2110-2170MHz |
2W/5W/10W/20W/ |
Our present manufacturing service:
1. Single-band repeaters of LTE/GSM/CDMA/PCS/DCS/WCDMA
2. Dual-band repeater of GSM/DCS; GSM/WCDMA; CDMA/PCS;
3. Tri-band repeater of GSM/DCS/WCDMA
4,Trunk Amplifier
5. All kind of Antenna/Splitter/Connector/Cable
| Packaging Detail |
Standard Package 1) Signal Repeater (AC power cord EU standard/ US standard/ UK standard) 1PC 2) Installation kit 1PC 3) User manual 1PC |
| Delivery Detail shipping |
10-15working days after received payment DHL, UPS, FEDEX, Air/Sea freight |
