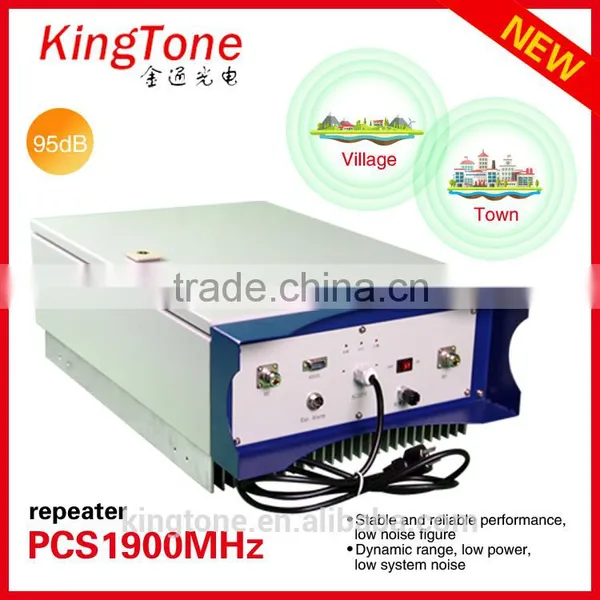

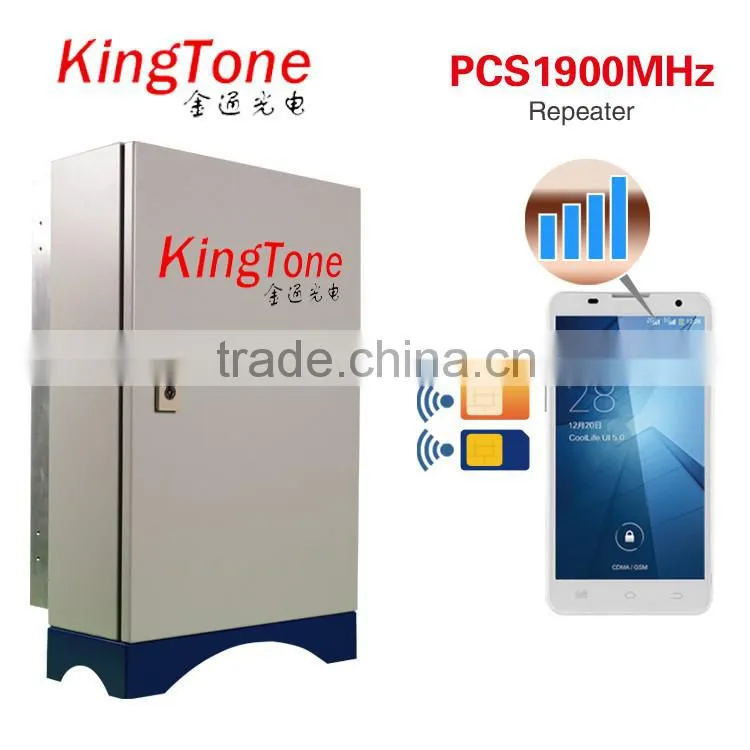

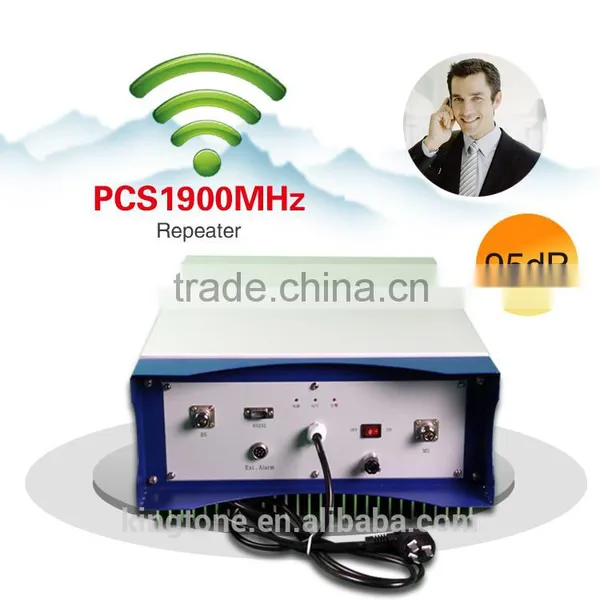

Home > Products > Wireless Repeater > 1900MHz GSM mobile phone signal booster cellular signal strengthen the mobile network device cellular phone outdoor booster
1900MHz GSM mobile phone signal booster cellular signal strengthen the mobile network device cellular phone outdoor booster
- 10000 Set / Sets per Month
- xiamen
- T/T Credit Card PayPal
- 2016 China Mobile signal repeater DCS1800MHz cellular signal repeater 1710~1785MHz 1805~1880MHz cellphone signal repeater
- 2w 3G 2100 mini Cellular repeater 85db for In-building coverage
- mobile signal booster Kingtone China alibaba Kingtone 33dBm CDMA850MHz indoor signal booster high gain cellular signal booster
- Celular Rural Repetidor Celular 800 Mhz CDMA Repeater for Outdoor Coverage
- CDMA800 33dBm mobile signal booster 2watts 800MHz signal amplifier low power indoor/outdoor cellular signal repeater booster
- kingtone Repetidor Celular 850 CDMA For outdoor coverage
Product Details
Place of Origin: | Fujian, China | Brand Name: | Kingtone | Model Number: | KT-1900MHz GSM mobile phone signal booster |
Packaging Details
1900MHz GSM mobile phone signal booster each pc into a box with safety foam
Product Description
1900MHz GSM mobile phone signal booster cellular signal strengthen the mobile network device cellular phone outdoor booster
1900MHz GSM mobile phone signal booster cellular signal strengthen the mobile network device cellular phone outdoor booster
Kingtone Repeaters system is designed to solve problems of weak mobile signal, which is much cheaper than adding a new Base Station (BTS). Main operation of RF Repeaters system is to receive low power signal from BTS via radio frequency transmission and then transmit the amplified signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and transmitted to the BTS via the opposite direction.
Main Features
1. High linearity PA; High system gain;
2. Intelligent ALC technology;
3. Full duplex and high isolation from uplink to downlink;
4. Automatic Operation convenient operation;
5. Integrated technique with reliable performance;
6. Bandwidth can be configured from 0.2~25MHz in work band;
7. Local and remote monitoring (optional) with automatic fault alarm &remote control;
8. Weatherproof design for all weather installation;
Applications
To expand signal coverage of fill signal blind area where signal is weak
or unavailable.
Outdoor: Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages etc.
Indoor: Hotels, Exhibition Centers, Basements, Shopping
Malls, Offices, Packing Lots etc.
It is mainly applicable to such case:
The repeater can find an installation place which can receive pure BTS signal at strong enough level as the Rx Level in repeater site should be more than -70dBm;
And can meet the requirement of antenna isolation to avoid self oscillation.
1900MHz GSM mobile phone signal booster cellular signal strengthen the mobile network device cellular phone outdoor booster
Items | Testing Condition | Specification | ||
Uplink | Downlink | |||
Working Frequency(MHz) | Nominal Frequency | 1850 – 1910MHz | 1930 - 1990MHz | |
Gain(dB) | Nominal Output Power-5dB | 95±3 | ||
Output Power (dBm) | GSM modulating signal | 33 | 40 | |
ALC (dBm) | Input Signal add 20dB | Po≤±1 | ||
Noise Figure (dB) | Working in-band(Max. Gain) | ≤5 | ||
Ripple in-band (dB) | Nominal Output Power -5dB | ≤3 | ||
Frequency Tolerance (ppm) | Nominal Output Power | ≤0.05 | ||
Time Delay (us) | Working in-band | ≤5 | ||
Peak Phase Error(°) | Working in-band | ≤20 | ||
RMS Phase Error (°) | Working in-band | ≤5 | ||
Gain Adjustment Step (dB) | Nominal Output Power -5dB | 1dB | ||
Gain Adjustment Range(dB) | Nominal Output Power -5dB | ≥30 | ||
Gain Adjustable Linear(dB) | 10dB | Nominal Output Power -5dB | ±1.0 | |
20dB | Nominal Output Power -5dB | ±1.0 | ||
30dB | Nominal Output Power -5dB | ±1.5 | ||
Inter-modulation Attenuation (dBc) | Working in-band | ≤-45 | ||
Spurious Emission(dBm) | 9kHz-1GHz | BW:30KHz | ≤-36 | ≤-36 |
1GHz-12.75GHz | BW:30KHz | ≤-30 | ≤-30 | |
VSWR | BS/MS Port | 1.5 | ||
I/O Port | N-Female | |||
Impedance | 50ohm | |||
Operating Temperature | -25°C ~+55°C | |||
Relative Humidity | Max. 95% | |||
MTBF | Min. 100000 hours | |||
Power Supply | DC-48V/AC220V(50Hz)/AC110V(60Hz)( ±15%) | |||
Remote Monitoring Function | Real-time alarm for Door Status, Temperature, Power Supply, VSWR, Output Power | |||
Remote Control Module | RS232 or RJ45 + Wireless Modem + Chargeable Li-ion Battery |
Frequency:PCS1900
Frequency Range:1850~1910MHz 1930~1990MHz
Output Power:2watts;5watts;10watts;20watts;30watts;40watts;60watts...
33dBm;37dBm;40dBm;43dBm;47dBm...
Repeater Type:ICS Repeater;Fiber Optice Repeater;Wireless Repeater...
1900MHz GSM mobile phone signal booster cellular signal strengthen the mobile network device cellular phone outdoor booster
1900MHz GSM mobile phone signal booster cellular signal strengthen the mobile network device cellular phone outdoor booster
Repeater Accessories
1.yagi antenna
2.panel/sectoral antenna
3.cable
nnectors
5.splitter/divider
1900MHz GSM mobile phone signal booster cellular signal strengthen the mobile network device cellular phone outdoor booster
Packing Details: Standard exporting cartons or as customer required
1.1*Repeater
2.1*Antenna
3.1*Repeater Kit(connector,cables,splitter...)
4.1*User Manual
Shipping Details:
1.Delivery Time:15-20days
1.Shipping Ways:by DHL;FedEx;EMS...
kingtone offers wide range of products to extend and enhance outdoor and indoor network coverage in the wireless Communication Industry.
Since 2006, Kingtone has been developing and manufacturing active and passive components and subsystems for CDMA, GSM, DCS , PCS, UMTS (W-CDMA) , Tetra, iDEN, Wimax and LTE etc. Moreover, Kingtone repeater have different types included Band-selective, Channel-selective, Frequency-shifting, Fiber-optical , Trunk-amplifier single and multiple bands for different mobile operators. As well as the repeater, the passive circuits such as Splitters, Couplers, POI, Connectors, Antennas are in operation.
At present, Kingtone exhibited the highest quality products and enterprise’s comprehensive strength. And Kingtone continues to strengthen technological innovation on repeater products and will launch the new products on the market soon.
1900MHz GSM mobile phone signal booster cellular signal strengthen the mobile network device cellular phone outdoor booster
Question: I live in a rural area. Rather than having a second phone line for work, I'd like to use my cell phone, but it only works outside. GSM 900 1800MHz dual band repeater,cell phone signal repeater,high quality repeater
Answer: Signals in many rural areas are marginal and cannot penetrate the walls of your home. Kingtone repeater can be easily deployed to provide coverage throughout your house. In a home, the donor unit is generally deployed outside – for example, under the eaves. Because it is more sensitive than your phone and is mounted higher up, it can usually detect signals that your phone can't. The coverage range of 15,000 to 50,000 square feet (2,000 to 4,600 square metres) is adequate for most homes.
Question: When I'm at the cottage, I'd like to stay in touch, but if I publish my cottage number, everyone will call. I'd like to just use my cell phone. Can you help?
Answer: Signals in many cottage areas are marginal and cannot penetrate the walls of your cottage. Kingtone repeater can be easily deployed to provide coverage throughout your cottage. In a cottage, the donor unit is generally deployed outside – for example, under the eaves or on a utility pole. Because it is more sensitive than your phone and is mounted higher up, it can usually detect signals that your phone can't. The coverage range of 15,000 to 50,000 square feet (2,000 to 4,600 square metres) is adequate for most cottages.
You get the privacy of your cottage and the convenience of your cell phone. Just remember to turn it off sometimes!
Question: I'm a production manager in a factory, and no cell phones work inside. I spend most of my time in a couple of spots. Can you help?
Answer: Factories and warehouses with lots of metal construction often have poor signals. While these buildings may be large, the employees are generally located in only a few areas.
Kingtone repeater can be easily deployed to provide coverage in those spots. The donor unit is deployed on the roof and connected to a coverage unit inside. The coverage range of up to 100,000 square feet is adequate for most trouble spots. Multiple units can be easily deployed to cover office areas and other working locations.
Question: No cell phones work in the parking garage. While many employees carry cell phones for safety, the phones aren't useful in any of the high-risk areas.
Answer: Kingtone repeater an provide coverage in parking garages above and below ground. That's useful for emergencies, and it removes the irritation of calls being dropped when you park your car.
The donor unit is placed where it can detect a signal (this might be outside or in a stairwell). It is connected to the coverage unit, which is placed in the centre of the garage up to 245 feet (75 metres) away.
Question:I work in an office building with no outside access. The windows don't open, and I can't get to the roof. How can I install?
Answer: Kingtone repeater can be deployed completely within your office. It is the only in-building in-building solution.
The donor unit needs to be placed somewhere where it can detect a signal (this might be beside a window or the outside wall). The coverage unit is then placed roughly in the centre of the problem area. Ideally, the two units are separated as much as possible.
For esthetic purposes, the entire system can be placed above the ceiling tiles.
Question: Does Kingtone repeater provide coverage for multiple users within a trouble spot?
Answer: Absolutely. Kingtone repeater is fully adaptive and supports multiple simultaneous users. Multiple units can be easily deployed to cover office areas and other working locations.
Question: Does Kingtone repeater support CDMA and GSM/WCDMA/PCS?
Answer: Yes, Kingtone repeater offers a portfolio of products that provide you with "always on" coverage solutions for both 800 MHZ (cellular) and 1900 MHZ (PCS) bands.
Question: Is Kingtone repeater specific to a frequency band?
Answer: Kingtone repeater supports both A and B band selectivity, allowing carriers to help their own customers without interfering with alternative carriers.
Contact person | Amy Su |
Whatsapp & Mobile | +86 18959901933 |
Skype | amysu217226 |
Website | ; |
Company Profile
Established in 2006, Kingtone is a high-tech enterprise specialized in developing, producing and selling wireless communication equipments and microwave functional module, such as Repeater for cell phone network, Mobile phone Jammer ,Handheld Transceivers, Vehicle Radio,Marine Radios etc.. Located in Quanzhou City of Fujian Province, we enjoy comfortable environment and convenient transportation. Covering an area of 1710 square meters, our factory is equiped with cutting-edge spectral analyzer, network analyzer, noise figure meter and signal generator, and operating under strict QC guidelines to guarantee high-quality products at competitive prices.
We also deal in high-quality alarm system. Our products conform to international standards, such as CE, GS, CE, EMC, UL and CSA. Meanwhile, OEM and ODM orders are welcome. We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build long and successful business relationships with us.
