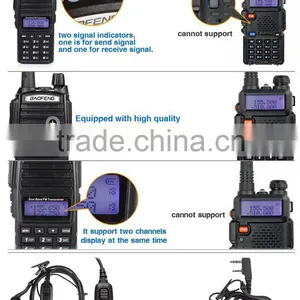

Best Sell CE FCC Rohs Approved BAOFENG UV-5R Handheld Walkie Talkie 5W Vhf Uhf 2-way Radio thumbnail-3
Best Sell CE FCC Rohs Approved BAOFENG UV-5R Handheld Walkie Talkie 5W Vhf Uhf 2-way Radio thumbnail-4
Best Sell CE FCC Rohs Approved BAOFENG UV-5R Handheld Walkie Talkie 5W Vhf Uhf 2-way Radio thumbnail-5
Best Sell CE FCC Rohs Approved BAOFENG UV-5R Handheld Walkie Talkie 5W Vhf Uhf 2-way Radio thumbnail-6
Best Sell CE FCC Rohs Approved BAOFENG UV-5R Handheld Walkie Talkie 5W Vhf Uhf 2-way Radio photo-1
Best Sell CE FCC Rohs Approved BAOFENG UV-5R Handheld Walkie Talkie 5W Vhf Uhf 2-way Radio photo-2
Best Sell CE FCC Rohs Approved BAOFENG UV-5R Handheld Walkie Talkie 5W Vhf Uhf 2-way Radio photo-3

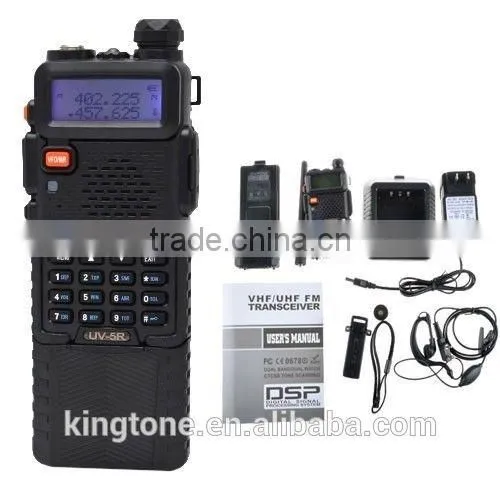

Best Sell CE FCC Rohs Approved BAOFENG UV-5R Handheld Walkie Talkie 5W Vhf Uhf 2-way Radio photo-4
Best Sell CE FCC Rohs Approved BAOFENG UV-5R Handheld Walkie Talkie 5W Vhf Uhf 2-way Radio photo-5
Best Sell CE FCC Rohs Approved BAOFENG UV-5R Handheld Walkie Talkie 5W Vhf Uhf 2-way Radio photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Baofeng
Model Number:
UV-5R
Contact Supplier Request Quote Chat Now
Quanzhou Kingtone Optics & Electronics Technology Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Baofeng
Model Number UV-5R
Type Handheld
Dimensions 58x32x110mm
Frequency Range 136-174MHz 400-480MHz
Storage Channel 128 Channels
Talk Range 5-10km

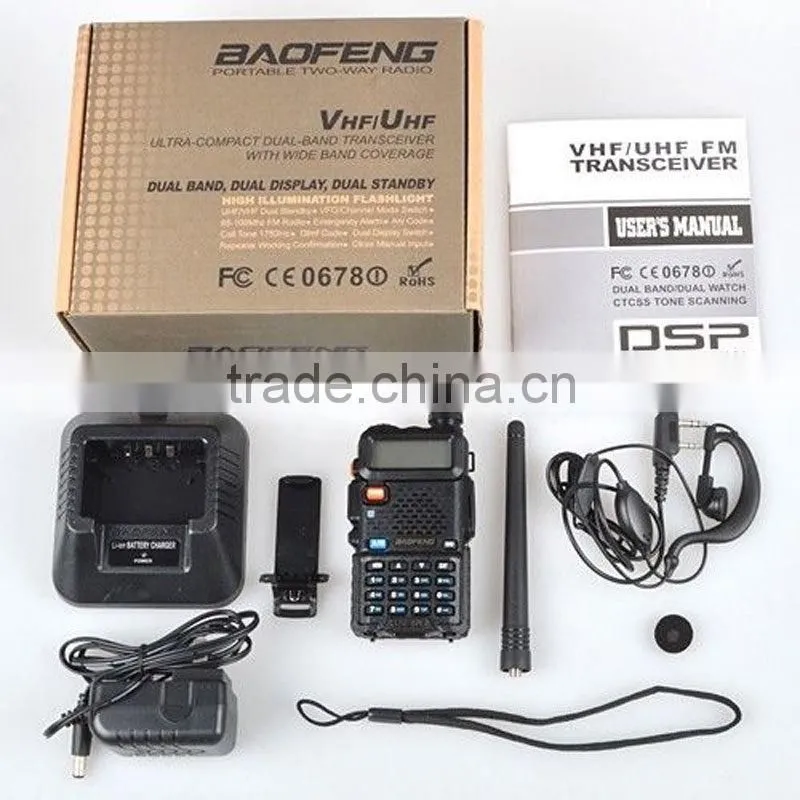

Best sell CE FCC Rohs approved BAOFENG UV-5R Handheld Walkie Talkie 5W vhf uhf 2-way radio

Best sell CE FCC Rohs approved BAOFENG UV-5R Handheld Walkie Talkie 5W vhf uhf 2-way radio

The transceiver is a micro-miniature multiband
FM transceiver with extensive receive frequency coverage,
providing local-area two-way amateur communications along with unmatched monitoring capability



VHF/UHF DUAL-BAND TWO WAY RADIO Baofeng uv-5r:

Descriptions:
VHF/UHF Dual-Band Two-Way Radio
·Frequency Range: 136-174 / 400-520MHz
·Dual-Band Display, Dual Freq. Display, Dual-Standby
·Output Power: 4 /1Watts
·128 Channels
·50 CTCSS and 104 CDCSS
·Built-in VOX Function
·1750Hz Brust Tone
·FM Radio (65.0MHz-108.0MHz)
·LED Flashlight
·Large LCD Display
·Hight /Low RF Power Switchable
·25KHz/12.5KHz Switchable
·Emergency Alert
·Low Battery Alert
·Battery Saver
·Time-out Timer
·Keypad Lock
·Monitor Channel
·Channel Step: 2.5/5/6.25/10/12.5/25KHz
·ROGER SET

Dual band, dual display, dual standby
A/B band independent operation
128 groups channels storage
Shortcut menu operation mode
VFO & Memory channels scan Emergency Alarm
Tri-color background light selectable
0~9 grades VOX selectable
PTT & ANI ID
FM radio
Voice companding
CTCSS/DCS
Wide/Narrow Band(25kHz/12.5kHz)
PC programmable

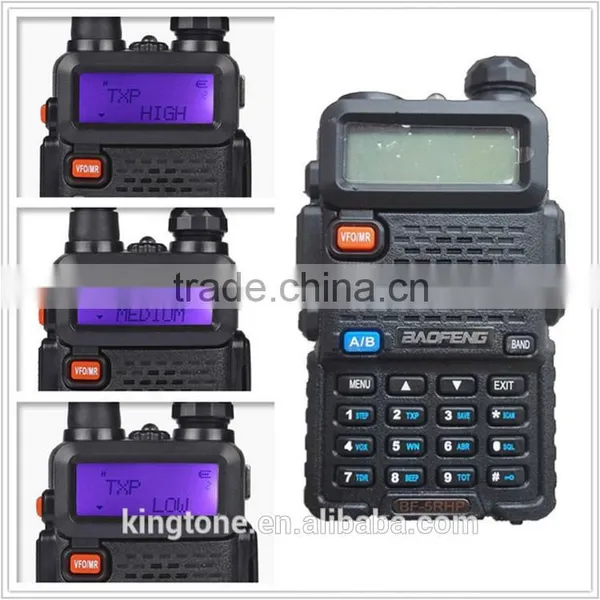

High/Low TX power selectable
Transmitter time-out timer(TOT)
Busy channel lock-out(BCLO)

Specifications:
Model pofung baofeng UV-5R
General
Frequency Range 65-108MHz(FM Receive only) 136-174MHZ and 400-480HZ (TX/RX)
0~9 grades VOX selectable
Channel No. 128
Frequency Stability ±2.5ppm
Antenna High gain DualBand antenna
Antenna Impedance 50Ω
Operating Voltage DC 7.4V
Mode of operation
Simple or semi-duplex
Dimension(W x H x D) 100 x 52 x 32 mm
Weight 250g(including battery, antenna)
Transmitter
Output power 4W / 1W (Max 5W)
Modulation Mode 16kΦF3E / 11kΦF3E
Maximum deviation Spurious Radiation <7μW
Adjacent Ch. power ≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics 6dB
Current ≤1.6A(5W)
CTCSS/DCS deviation 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity 8-12mv
Intermediation distortion <10%



Receiver
Sensitivity £¼0.20 µ V (12dB SINAD)
Audio Power 1 W
Inter modulation Interference Resistance 65dB (W), 55dB (N)
Adjacent channel Sensitivity (W/N Band) 65dB (W), 55dB (N)
Audio Distortion 5 %
Receiving Current 380m A

Best sell CE FCC Rohs approved BAOFENG UV-5R Handheld Walkie Talkie 5W vhf uhf 2-way radioBest sell CE FCC Rohs approved BAOFENG UV-5R Handheld Walkie Talkie 5W vhf uhf 2-way radio





GENERAL
Frequency range 136-174MHZ&400-520MHz
Memory channels 128
Bandwidth Wide:25kHz;Narrow 12.5kHz
Frequency step 2.5/5/6.25/10/12.5/20/25kHz
Operating voltage 7.4V
Battery capacity 1800mAh
Operate temperature range –20°C-+60°C
Weight 206g
Dimensions 110*60*35mm
TRANSMITTER
RF output power H 4W/L 1W
Modulation F3E
Spurious emission 65dB
FM noise 45dB(W)/42dB(N)
Audio distortion ≤5%
Transmitting current <1.3A
RECEIVER
Sensitivity(12dB SINAD) ≤0.20 uV
Selectivity Wide:60 DB;Narrow:55dB
Intermodulation ≥65dB
Adjacent channel sleectvity ≥65dB
Spurious response ≥60dB
FM noise 45dB(W)/42dB(N)
Audio power output 1000mW
Audio distortion ≤5%
NOTE
Price term Ex-work pric





HOTSALE BAOFENG WALKIE TALKIE:

 Best sell CE FCC Rohs approved BAOFENG UV-5R Handheld Walkie Talkie 5W vhf uhf 2-way radio

Hot Selling Ce Fcc Approved Two Band Baofeng Uv-5r Handy Walkie Talkie 10w, High Quality Walkie Talkie 10w,Dmr Walkie Talkie,Baofeng 10w





If you’re looking for low-cost but high-quality two-way portable radio, which is suitable for both leisure and work, you can always count on BaoFeng radios. There are two great models from BaoFeng on the market today that you may want to look into: BaoFeng uv-5r.

BaoFeng uv-5r

First of all, uv-5r model has an excellent price for such high quality product. BaoFeng radios are famous for being small in size which makes them comfortable to use, and this model is not an exception.

This BAOFENG UV-5R transceiver is a micro-miniature multiband FM transceiver with extensive receive frequency coverage, providing local-area two-way amateur communications along with unmatched monitoring capability.



 Best sell CE FCC Rohs approved BAOFENG UV-5R Handheld Walkie Talkie 5W vhf uhf 2-way radio



Hot Selling Ce Fcc Approved Two Band Baofeng Uv-5r Handy Walkie Talkie 10w, High Quality Walkie Talkie 10w,Dmr Walkie Talkie,Baofeng 10w




  • The simple and logical controllers help you tune in to any frequency in the range of 136-174 Mhz (VHF) and 400-480 Mhz (UHF)
  • While it has its own removable antenna it has been proved to work perfectly with NA-771 antenna.
  • Default battery’s capacity is 1800 mA which allows the radio to work for up to 12 hours, and, of course, you could always get a bigger battery if needed.

 Best sell CE FCC Rohs approved BAOFENG UV-5R Handheld Walkie Talkie 5W vhf uhf 2-way radio



Product Uses
1. Using rechargeable walkie-talkie for the first time, please charge for 16 hours



2.Turn off your computer before removing the battery



3. Please do not use hand to pick up the antenna, hold the antenna will affect the effective wireless intercom call range



4. Use the walkie-talkie, you should keep it vertical distance of 5.0 to 7.0 cm, and keep your face



5. Please try to use while driving handsfree speaker and the closing words



6. Keep your intercom televisions, computer monitors and other screen to maintain a distance greater than 10cm, to avoid being magnetized



7. The interphone Do things together with other metal-containing storage



8. Walkie-talkies may interfere with some hearing aids, with your hearing aid manufacturer to discuss alternatives



9. Try to place in the medical walkie-talkie off, so as not to affect the use of medical equipment



10. Do not use in airports and on aircraft. If so, prohibited driving the car to the side of the road and then



11. In potentially explosive areas must remain shut down, unless it is dedicated intercom dangerous areas (for example, Factory Mutual, CAS, or UL certified)



12. To avoid electromagnetic interference / compatibility conflicts, in some cases posted notices require you to turn off the intercom, please observe
