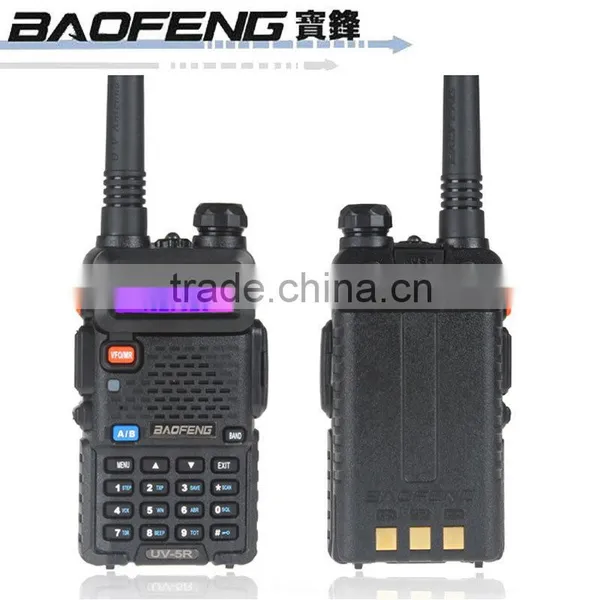

Quanzhou cheap ham radio Baofeng UV-5R walkie talkie 2way radio waterproof walkie talkie/talkie walkie/woki toki with low price
Quanzhou cheap ham radio Baofeng UV-5R walkie talkie 2way radio waterproof walkie talkie/talkie walkie/woki toki with low price

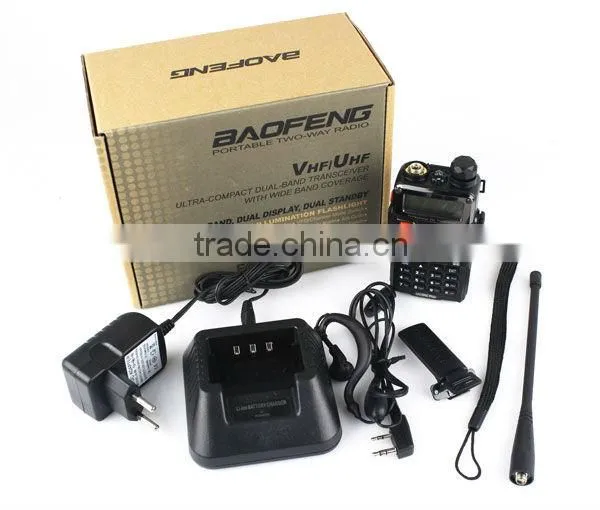

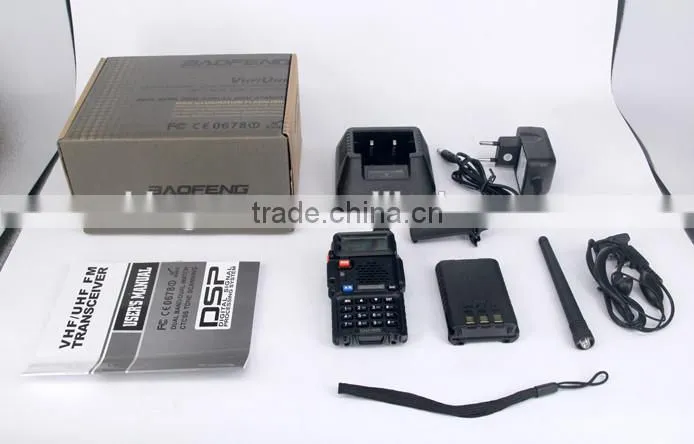

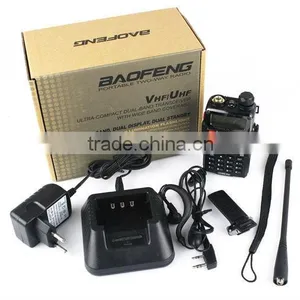

Packing Details: 1 x UV-5R
1 x 7.4V 1800mah Li-ion Battery Pack
1 x Dual Band Antenna
1 x Belt Clip
1 x User Manual

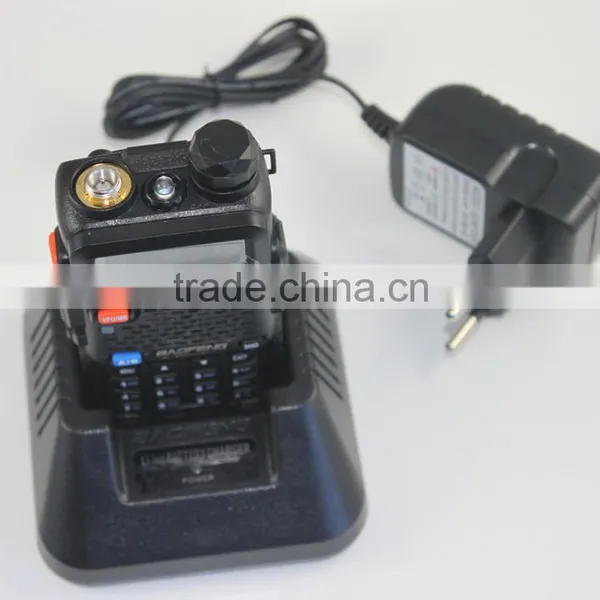

1 x Desktop Charger ( 100V ~ 240V )
1 x free earphone
Delivery Time: 1-2days
Quanzhou cheap ham radio Baofeng UV-5R walkie talkie 2way radio waterproof walkie talkie/talkie walkie/woki toki with low price
| Frequency Range |
65MHz~108MHz(Only commercial FM radio reception) VHF:136MHz~174MHz(Rx/Tx).UHF:400MHz~480MHz(Rx/Tx) |
| Memory Channels | Up to 128 channels |
| Frequency Stability | 2.5ppm |
| Frequency Step | 2.5kHz/5kHz/6.25kHz/10kHz/12.5kHz/25kHz |
| Antenna Impedance | 50Ω |
| Operating Temperature | -20℃to+60 ℃ |
| Supply Voltage | Rechargeable Lithium-Ion mAh 7.4V/1800 |
| Consumption in Standby | ≤75mA |
| Consumption in Reception | 380mA |
| Consumption in Transmission | ≤1.4A |
| Mode of Operation | Simplex or semi-duplex |
| Duty Cycle | 03/03/54 min.(Rx/Tx/Standy) |
| Dimensions | 58mm*110mm*32mm |
| Weight | 130g(approximate) |
Specification
Transmitter
| RF Power Output | 4w/1w |
| Modulation | F3E |
| Spurious Emission | 65dB |
| FM Noise | 45dB(W)/42dB(N) |
| Audio Distortion | ≤5% |
| Transmitting Current | <1.3A |
Receiver
| Sensitivity(12dB SINAD) | ≤0.20uV |
| Selectivity | 60dB/55dB |
| Intermodulation | ≥65dB |
| Adjacent Channel Selectivity | ≥65dB |
| Spurious Response | ≥60dB |
| FM Noise | 45dB(W)/42dB(N) |
| Audio Power Output | 1000mW |
| Audio Distortion | ≤5% |
Features:

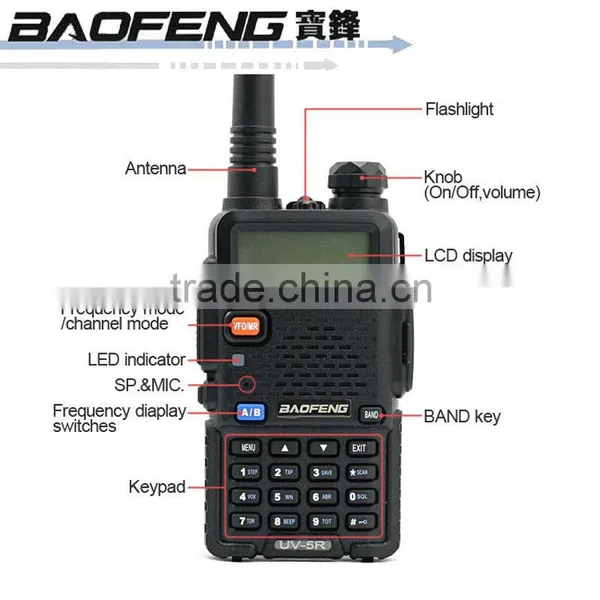

- Dual-band handheld transceiver with display function menu on the display "LCD".
- DTMF encoded.
- Commercial FM radio receiver (65 MHz ~ 108 MHz)
- Incorporates 105 codes "DCS" and 50 privacy codes "CTCSS" programmable.
- Function "VOX" (voice operated transmission)
- Alarm function
- Up to 128 channels
- Broadband (Wide) / Narrowband (Narrow), selectable
- High power / low (5 W / 1 W) selectable
- Display illumination and programmable keyboard
- Function Roger Beep on end of transmission
- Dual Watch / dual reception
- Selectable Frequency Step 2.5/5/6.25/10/12.5/25 kHz
- Function "OFFSET" (frequency offset for repeater access)
- Battery saving function "SAVE"
- Timer tranmission "TOT" programmable
- Selecting the Scan Mode
- Function Busy Channel Lock "BCLO"
- Built-in RX CTCSS/DCS scan
- Built-in LED flashlight
- Programmable by PC
-

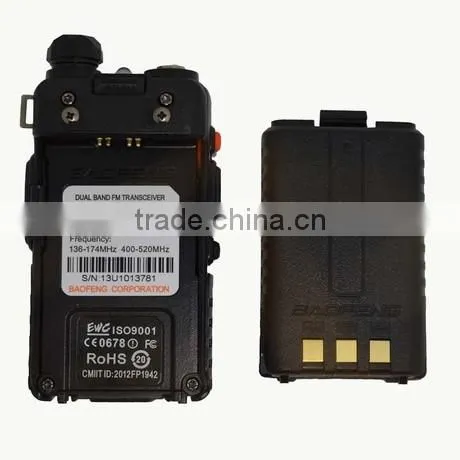

7.4V 1800mAh Li-Ion Rechargeable Battery
Upgrade with 7.4V 3800mAh Li-ion High Capacity Rechargeable Battery (BL-5L)
Quanzhou cheap ham radio Baofeng UV-5R walkie talkie 2way radio waterproof walkie talkie/talkie walkie/woki toki with low price
Quanzhou cheap ham radio Baofeng UV-5R walkie talkie 2way radio waterproof walkie talkie/talkie walkie/woki toki with low price
Quanzhou cheap ham radio Baofeng UV-5R walkie talkie 2way radio waterproof walkie talkie/talkie walkie/woki toki with low price
Quanzhou cheap ham radio Baofeng UV-5R walkie talkie 2way radio waterproof walkie talkie/talkie walkie/woki toki with low price
Quanzhou cheap ham radio Baofeng UV-5R walkie talkie 2way radio waterproof walkie talkie/talkie walkie/woki toki with low price
| Problem | Possible cause/Solution |
| The radio does not start | The battery is low ,replace the battery with a charged battery or procced to the battery.The battery is not installed correctly,remove the battery and reattach it. |
| The battery runs down quickly. | The battery life has come to an end,replace the battery with a new one.The battery is fully charged,make sure the battery is made in full. |
| The receiving indicator LED lights but do not hear the speaker. | Make sure the volume setting is too low.Make sure the undertones"CTCSS"or code"DCS"are the same as those programmed in the transceiver of the other members of your group. |
| When transmitting,the other members of his group do not receive the communication. | Make sure the undertones"CTCSS" OR code"DCS"programmed in your transceiver are the same as those programmed in the transceiver of the other members your group.Your partner or you, are too far. You or you partner are in a bad area of RF signal propagation. |
| In"standby"mode,the transceiver transmits without pressing the "PTT". | Check the level adjustment function"VOX" is not set too sensitive. |
| Receive communication from other user groups while communicating with your group. | Change frequency or channel.Change the undertones"CTCSS"or code"DCS" in your group. |
| Communication with other members of your group is poor or low quality. | You or your partner is too far away or in an area of poor radio signal propagation,such as inside a tunnel,inside an underground car park,in a mountainous area,including large metal structures,etc. |
Once these check,if you still have problems with the transceiver,check with your distributor,dealer or service center.
Note:
1. Using rechargeable walkie-talkie for the first time, please charge for 16 hours
2.Turn off your computer before removing the battery
3. Please do not use hand to pick up the antenna, hold the antenna will affect the effective wireless intercom call range
4. Use the walkie-talkie, you should keep it vertical distance of 5.0 to 7.0 cm, and keep your face
5. Please try to use while driving handsfree speaker and the closing words
6. Keep your intercom televisions, computer monitors and other screen to maintain a distance greater than 10cm, to avoid being magnetized
7. The interphone Do things together with other metal-containing storage
8. Walkie-talkies may interfere with some hearing aids, with your hearing aid manufacturer to discuss alternatives
9. Try to place in the medical walkie-talkie off, so as not to affect the use of medical equipment
10. Do not use in airports and on aircraft. If so, prohibited driving the car to the side of the road and then
11. In potentially explosive areas must remain shut down, unless it is dedicated intercom dangerous areas (for example, Factory Mutual, CAS, or UL certified)
12. To avoid electromagnetic interference / compatibility conflicts, in some cases posted notices require you to turn off the intercom, please observe.
Approved: CE/FCC
After Sales Service: 1 Year Warranty
Quanzhou cheap ham radio Baofeng UV-5R walkie talkie 2way radio waterproof walkie talkie/talkie walkie/woki toki with low price
| Contact Person | Amy Su |
| Whatsapp & Mobile | 86 18959901933 |
| Skype | amysu217226 |
| Website | |
| Add | Bld B,Yucheng Base,Keji Rd,Fengze High-Tech Park,Quanzhou,Fujian,China,362000 |
