Product Details
Place of Origin: | Fujian, China | Brand Name: | KINGTONE | Model Number: | KTR-001 |
Packaging Details
1,Cartons lined with safety foam; 2,Customized;
Product Description

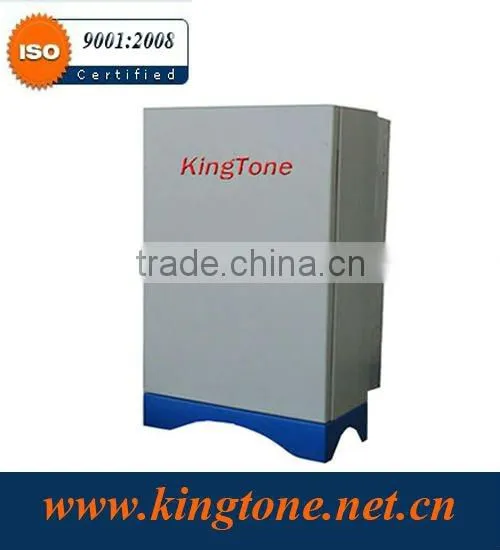

400MHz CHANNNEL SELECTIVE WALKIE TALKIE REPEATER
Highlight
²Up to 7MHz bandwidth in TETRA400 band
²ETSI Compliance
²Support up to 4TETRA channels (25KHz/ch)
²Max 33dBm Output Power with 90dB Gain
²Remote control by GSM/WCDMA modem by SMS
Electrical Specifications
Item | Specification | ||
Downlink | Uplink | ||
Frequency Range* | 423~430 MHz | 413~420 MHz | |
Nos of Channel / Band. | 25KHz/ch - up to 4 Channels | ||
Output Power (Max.) | ≥33dBm/Channel for 1 channel ≥30dBm/Channel for 2 channels ≥27dBm/Channel for 4 channels | ≥30dBm/Channel for 1 channel ≥27dBm/Channel for 2 channels ≥24dBm/Channel for 4 channels | |
Gain (Max.) | 90±3dB | 90±3dB | |
Max. input without damage | -10dBm | ||
Gain Adjustable Range/Step | ≥30dB/1dB | ||
Gain Adjustable Error | Gain adjustable range is 0~20dB, error≤1dB; ≥21dB, error≤1.5dB | ||
ALC | When adding ≤10dB at max. output level, output variation ≤±2dB, when adding >10dB, output variation ≤±2dB or be off. | ||
Ripple in Band | ≤3dB | ||
Spurious Emission | 9kHz-1GHz ≤-36dBm | ||
1GHz-12.75GHz ≤-30dBm | |||
Intermodulation | ≤-36 dBm (250 nW) in the frequency band 9 kHz - 1 GHz ≤-30 dBm (1µW) in the frequency band 1 GHz – 12.75 GHz | ||
Out of Band Gain (Frequency offset from the - 6 dB point) | 50 kHz | ≤75dB | |
75KHz | ≤70dB | ||
125KHz | ≤65dB | ||
250KHz | ≤32dB | ||
≥500KHz | ≤28dB | ||
Adjacent channel power | Complies with ETSI TS 101 789-1 and ETSI EN 300 394-1 | ||
Modulation accuracy | Complies with ETSI TS 101 789-1 and ETSI EN 300 394-1 | ||
VSWR | ≤1.5 | ||
MTBF | ≥50000 hours | ||
Power Supply | AC: 100-250VAC, 40-60Hz | ||
Max. Power Consumption | ≤250W | ||
Operating Temperature | -25~+65 °C | ||
Operating Humidity | ≤95% | ||
Monitor Interface | Local Monitor: USB, Remote Monitor: GSM/WCDMA Modem | ||
Mechanical Specifications | |||
RF Connector | N-Female, 50ohm | ||
Environmental Class | IP65 | ||
Dimension and Weight | 600x400x250mm, ≤40kg |
Company Profile
Established in 2006, Kingtone is a high-tech enterprise specialized in developing, producing and selling wireless communication equipments and microwave functional module, such as Repeater for cell phone network, Mobile phone Jammer ,Handheld Transceivers, Vehicle Radio,Marine Radios etc.. Located in Quanzhou City of Fujian Province, we enjoy comfortable environment and convenient transportation. Covering an area of 1710 square meters, our factory is equiped with cutting-edge spectral analyzer, network analyzer, noise figure meter and signal generator, and operating under strict QC guidelines to guarantee high-quality products at competitive prices.
We also deal in high-quality alarm system. Our products conform to international standards, such as CE, GS, CE, EMC, UL and CSA. Meanwhile, OEM and ODM orders are welcome. We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build long and successful business relationships with us.
