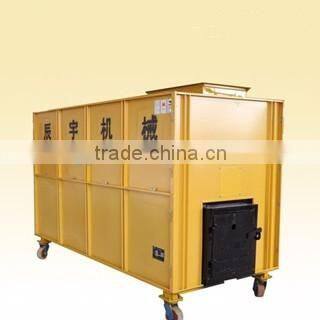

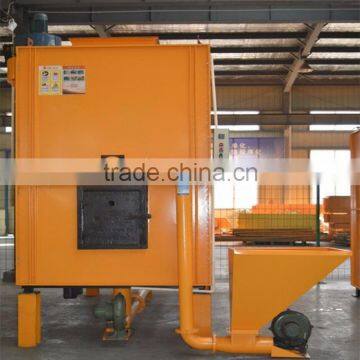

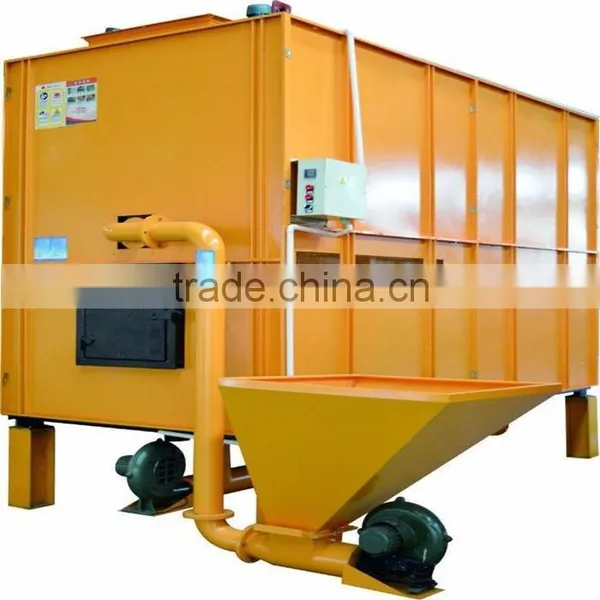

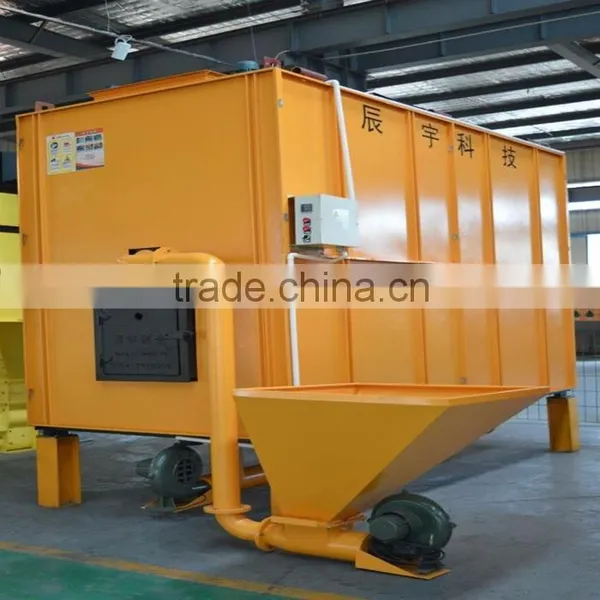

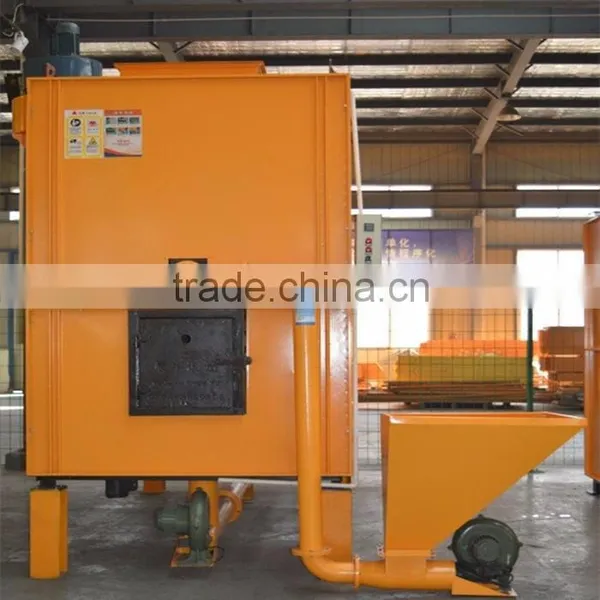

Factory Price Chenyu 5L Series Classic Furnace Competed With Grain Dryer

Factory Price Chenyu 5L Series Classic Furnace Competed With Grain Dryer thumbnail-1
Factory Price Chenyu 5L Series Classic Furnace Competed With Grain Dryer thumbnail-2

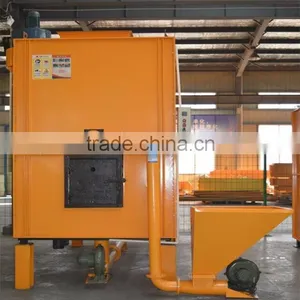

Factory Price Chenyu 5L Series Classic Furnace Competed With Grain Dryer thumbnail-3
Factory Price Chenyu 5L Series Classic Furnace Competed With Grain Dryer thumbnail-4
Factory Price Chenyu 5L Series Classic Furnace Competed With Grain Dryer thumbnail-5
Factory Price Chenyu 5L Series Classic Furnace Competed With Grain Dryer thumbnail-6
Factory Price Chenyu 5L Series Classic Furnace Competed With Grain Dryer photo-1
Factory Price Chenyu 5L Series Classic Furnace Competed With Grain Dryer photo-2
Factory Price Chenyu 5L Series Classic Furnace Competed With Grain Dryer photo-3

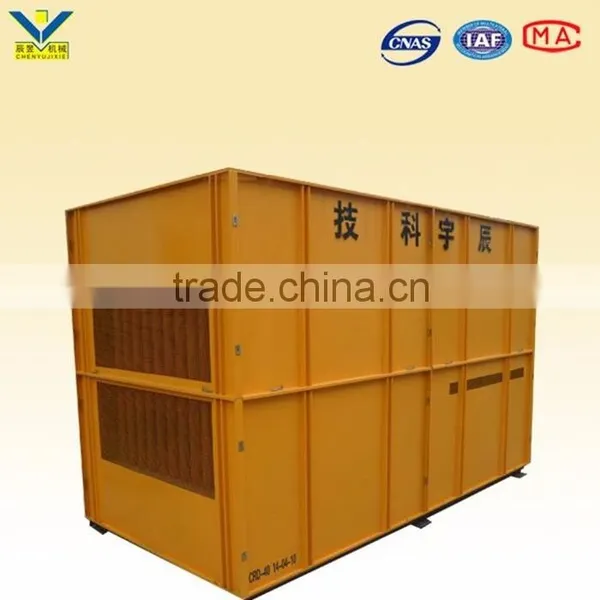

Factory Price Chenyu 5L Series Classic Furnace Competed With Grain Dryer photo-4

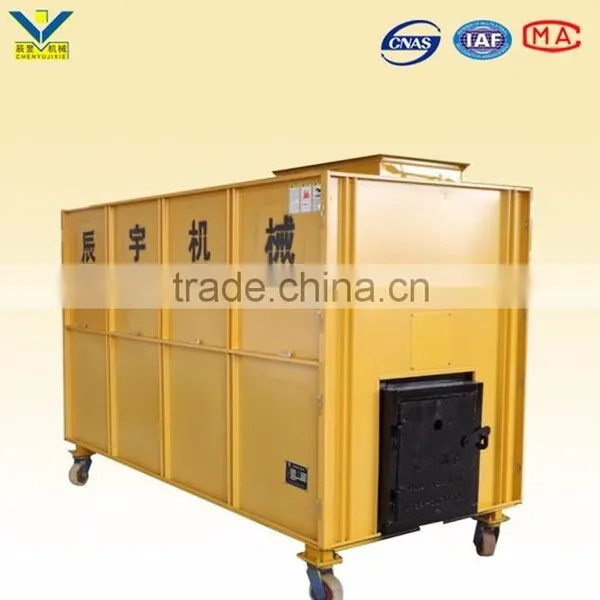

Factory Price Chenyu 5L Series Classic Furnace Competed With Grain Dryer photo-5

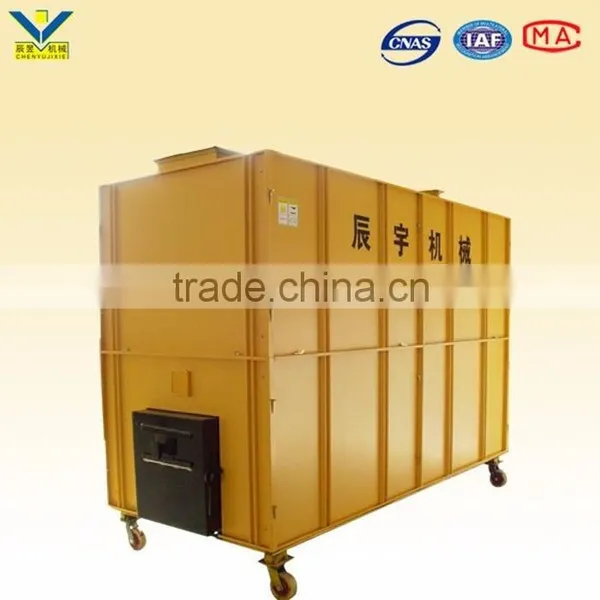

Factory Price Chenyu 5L Series Classic Furnace Competed With Grain Dryer photo-6
US$ 5,000 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Natural Circulation
Usage:
Other, dryer equipment
Contact Supplier Request Quote Chat Now
Anhui Chenyu Mechanical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Natural Circulation
Usage Other, dryer equipment
Structure Fire Tube
Pressure High Pressure
Style Horizontal
Fuel Waste Heat
Place of Origin Anhui, China
Brand Name chenyu
Model Number 5L-30
Output Steam
Dimension(L*W*H) 3100*1400*2370
Weight 3200kg
Certification ISO9001
After-sales Service Provided Engineers available to service machinery overseas
Our Company

company profile

Anhui Chenyu Mechanical Co.,Ltd,aiming at grain drying business,is a comprehensive agricultural machinery  manufacturer&national high-tech enterprise that specialize in the integration of development,manufacturing,sales and services..

claim to fame

▷10 years experience

▷30 National Patents

▷4000 users

▷7500 sets machines sold

main products

Under the core value"Drying perfect,saving efficient",Chenyu has developed the 5H seris low-temperature  circulating grain dryer and CY5L seris husk burner which are with core patents,cam ensure exact     security and energy saving on grain drying process.

Certifications

ISO Series Certifications

National Patents  Certifications

Product Description

Product Application

Chenyu CY5L series husk burner is the optional machinery with its low-temperature circulating grain dryer.

At present,company has its own two type furnace,one is Classic furnace,the other is Suspended furnace.

We always keep innovation to develop the products follow customers' requirements.

SPECIFICATIONS FOR CLASSIC HUSK BURNER
Model
CY5L-30
CY5L-40
CY5L-50
Rated heat                           (ten thousand kcal/hour)
30
40
45
Output air temperature(℃)
60-120
Heating mode
indirect hot air heating,automatic temperature controlling
Ignition  mode
Munual
Feeding mode
Manual/Automatic(chaff optional)
Model of exhaust fan
4-72-3.2A
Output hot air(㎥/h)
13353-26706
26706-40059
30711-466067
Applied fuel
rice hull,wood,straw,anthracite
Thermal efficiency(%)
≥60(with rice hull)
Weight(kg)
3200
3400
4000
Overall dimension(mm)
3100*1400*2370
3200*1760*2300
3305*1760*2600
Power(kG)
2.2

Qty and model of dryers
2 sets 5H-10
3 sets 5H-10
4 sets 5H-10
2 sets 5H-12
3 sets 5H-12
4 sets 5H-12
2 sets 5HCY-15H
3 sets 5HCY-15H
4 sets 5HCY-15H
Safty device
Thermal-over relay,automatic constant temperature device,hot air temperature sensor,overheat protection device,leakage protection device.
1.Specification is subject to change without notice.
2.Thermal energy,husk consumption and exhausted ash product listed are for reference only.
Actual data will differ from variety,moisture content and impurity.

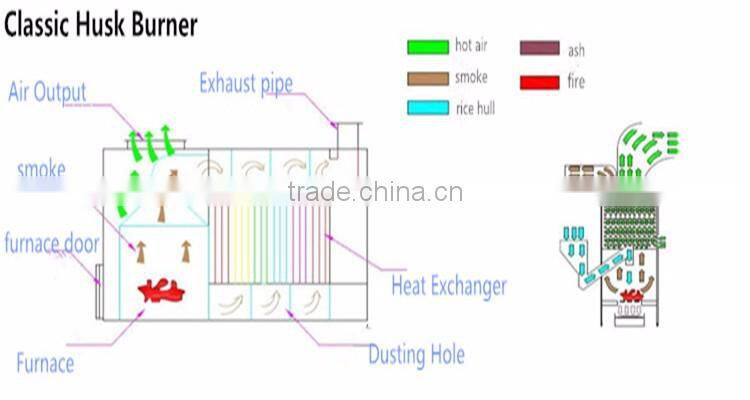

Working Principle:


Showing the followings

1.Put the fuels such as rice hull,straw and anthracite into the furnace to burn then generate heat.

2.The smoke gets into the heat exchanger and is discharged outside after many cycles.
3.At the same time the cold air heats up through the outside of the heat exchanger and output to the dryer.
4.It can increase the thermal efficiency,save energy and reduce costs greatly.

Warm Prompt:take object as standard.Any updates without prior notice.

Main Features

1) Smoke—heat exchanger—Smoke fan(waste gas)

2) Indirect heating:cold air-heat exchanger-grain dryer(hot air)

3) Automatic ash removal system

4) Automatic feeding system

5) Heat up quickly

6)Low drying costs

Detailed Images

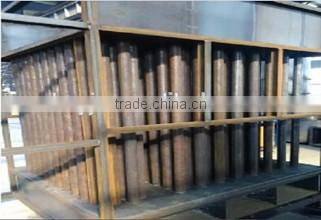

Heat Exchanger


Material:Welded plate&seamless tube

Inner diameter:60mm

Thickness:2.5mm(welded plate) 3mm（seamless tube）

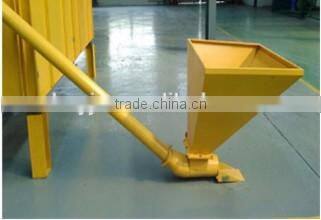

Automatic feeding device

Equipped with 370W blower

at a constant speed

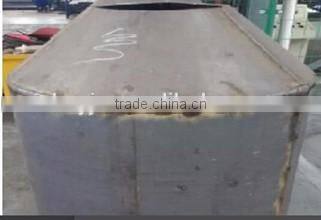

Furnace

12mm Hot plate

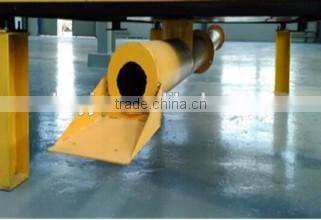

Automatic ash removal system

Length 3.7m
Inner diameter:165mm
Equipped with 550W blower

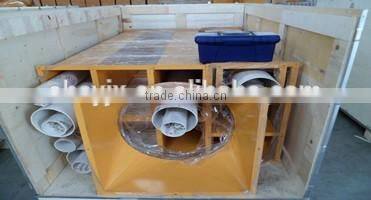

Packing & Delivery

inner package with stretch film

outside package with standard export wooden cases

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

FAQ

1. How about engineers service oversea?

Engineers available to service machinery overseas;

2.. How about the guarantee period?

One year.

3. Will you accept L/C as payment?

L/C is accepted. T/T is OK for us.

Alibaba Trade Assurance is your best choice.

4.Do you have dryer?What type of dryers do you have? Are these continuous or batch?

Yes,dryer is our main product.It's Batch type.Low-temperature circulating grain dryer.

5.what is the minimum seed size that your dryer handle ？

2.0mm

6.Would you like to provide a solution on the machine setting?

Yes,we'd like to.Please share your daily capacity,grain moisture content,fuel type,etc.


Any other questions,please feel free contact with us any time.

Contact person:Lisa Du

Mobile:+86 18626059928

skype:ahladujuan

wechat:ahladujuan_lisa



MORE CHOICES,BETTER BUSINESS.
WELCOME TO VISIT OUR FACTORY.

Customer Cases

1 sets classic furnace supplied 3 sets dryer

2 sets suspended furnace supplied 5 sets dryer

1 sets furnace supplied 6 sets dryer
