The transceiver is a micro-miniature multiband
FM transceiver with extensive receive frequency coverage,
providing local-area two-way amateur communications along with unmatched monitoring capability
VHF/UHF DUAL-BAND TWO WAY RADIO:
- Frequency Range: 136-174 / 400-480MHz
- Dual-Band Display, Dual Freq. Display, Dual-Standby
- Output Power: 5Watts
- 128 Channels
- 50 CTCSS and 104 CDCSS
- Built-in VOX Function
- 1750Hz Burst Tone
- FM Radio (65.0MHz-108.0MHz)
- LED Flashlight
- Large LCD Display
- High /Low RF Power Switchable
- 25KHz/12.5KHz Switchable
- Emergency Alert
- Low Battery Alert
- Battery Saver
- Time-out Timer
- Keypad Lock
- Monitor Channel
- Channel Step: 2.5/5/6.25/10/12.5/25KHz
- ROGER SET
Descriptions:
VHF/UHF Dual-Band Two-Way Radio
·Frequency Range: 136-174 / 400-520MHz
·Dual-Band Display, Dual Freq. Display, Dual-Standby
·Output Power: 4 /1Watts
·128 Channels
·50 CTCSS and 104 CDCSS
·Built-in VOX Function
·1750Hz Brust Tone
·FM Radio (65.0MHz-108.0MHz)
·LED Flashlight
·Large LCD Display
·Hight /Low RF Power Switchable
·25KHz/12.5KHz Switchable
·Emergency Alert
·Low Battery Alert
·Battery Saver
·Time-out Timer
·Keypad Lock
·Monitor Channel
·Channel Step: 2.5/5/6.25/10/12.5/25KHz
·ROGER SET
Dual band, dual display, dual standby
A/B band independent operation
128 groups channels storage
Shortcut menu operation mode
VFO & Memory channels scan Emergency Alarm
Tri-color background light selectable
0~9 grades VOX selectable
PTT & ANI ID
FM radio
Voice companding
CTCSS/DCS
Wide/Narrow Band(25kHz/12.5kHz)
PC programmable
High/Low TX power selectable
Transmitter time-out timer(TOT)
Busy channel lock-out(BCLO)
Specifications:
Model pofung baofeng UV-5R
General
Frequency Range 65-108MHz(FM Receive only) 136-174MHZ and 400-480HZ (TX/RX)
0~9 grades VOX selectable
Channel No. 128
Frequency Stability ±2.5ppm
Antenna High gain DualBand antenna
Antenna Impedance 50Ω
Operating Voltage DC 7.4V
Mode of operation
Simple or semi-duplex
Dimension(W x H x D) 100 x 52 x 32 mm
Weight 250g(including battery, antenna)
Transmitter
Output power 4W / 1W (Max 5W)
Modulation Mode 16kΦF3E / 11kΦF3E
Maximum deviation Spurious Radiation <7μW
Adjacent Ch. power ≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics 6dB
Current ≤1.6A(5W)
CTCSS/DCS deviation 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity 8-12mv
Intermediation distortion <10%
Receiver
Sensitivity £¼0.20 µ V (12dB SINAD)
Audio Power 1 W
Inter modulation Interference Resistance 65dB (W), 55dB (N)
Adjacent channel Sensitivity (W/N Band) 65dB (W), 55dB (N)
Audio Distortion 5 %
Receiving Current 380m A
BaoFeng UV-5R Blue 136-174/400-480MHz Dual-Band DTMF CTCSS DCS FM ham 2way radio
| Model:baofeng UV-5R Dual band cheapest walkie talkie | |
| SPECIFICATIONS | |
| GENERAL | |
| Frequency range | FM & 136-174MHZ & 400-520MHz |
| Memory channels | 128 |
| Bandwidth | Wide:25kHz;Narrow 12.5kHz |
| Frequency step | 2.5/5/6.25/10/12.5/20/25kHz |
| Operating voltage | 7.4V |
| Battery capacity | 1800mAh |
| Operate temperature range | –20°C-+60°C |
| Weight | 206g |
| Dimensions | 110*60*35mm |
| TRANSMITTER | |
| RF output power | H 4W/L 1W |
| Modulation | F3E |
| Spurious emission | 65dB |
| FM noise | 45dB(W)/42dB(N) |
| Audio distortion | ≤5% |
| Transmitting current | <1.3A |
| RECEIVER | |
| Sensitivity(12dB SINAD) | ≤0.20 uV |
| Selectivity | Wide:60 DB;Narrow:55dB |
| Intermodulation | ≥65dB |
| Adjacent channel sleectvity | ≥65dB |
| Spurious response | ≥60dB |
| FM noise | 45dB(W)/42dB(N) |
| Audio power output | 1000mW |
| Audio distortion | ≤5% |
| NOTE | |
| Price term | Ex-work price |
| MOQ: | 100 pcs |
| Payment: | Paypal, Western union or T/T |
| Delivery: | 3-5 working days upon payment receiving |

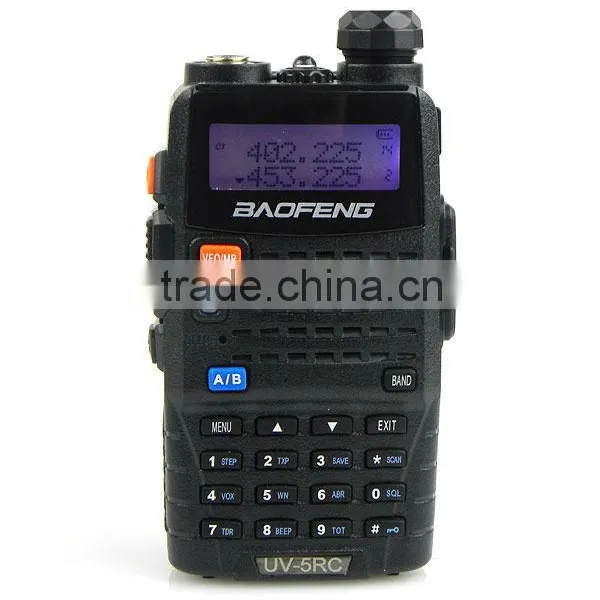

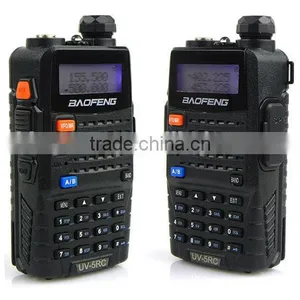

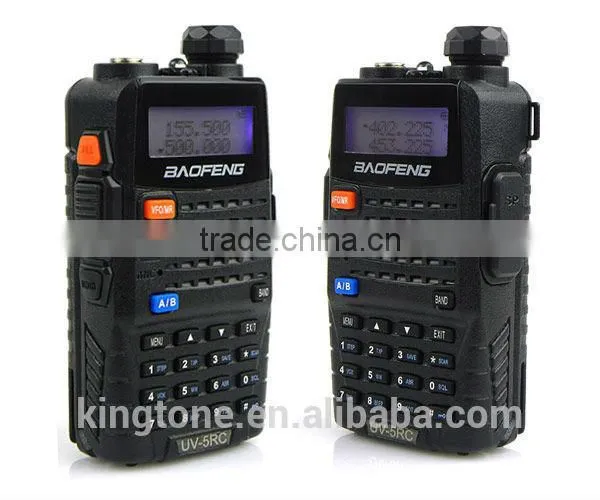

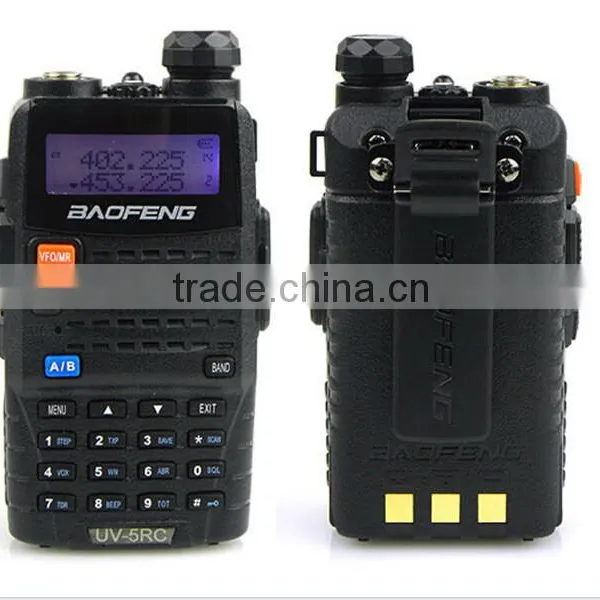

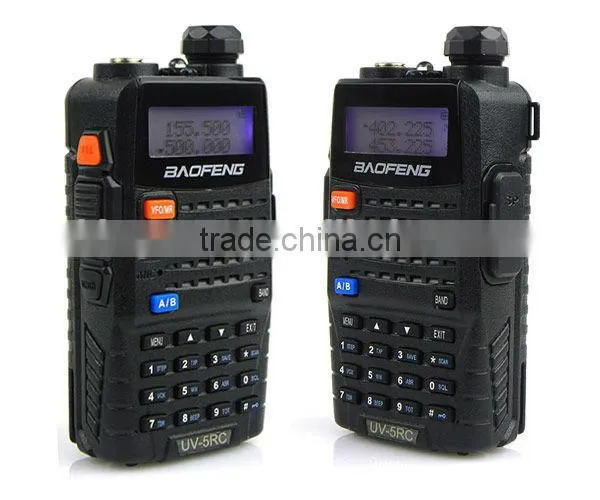

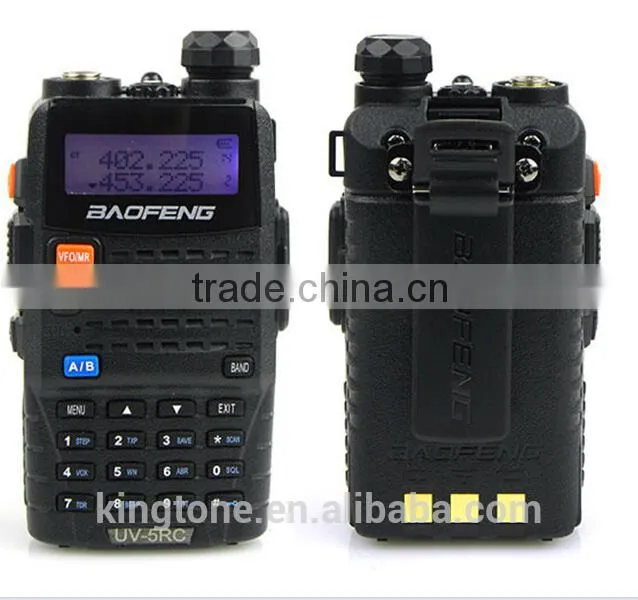

Photos of BAOFENG UV-5RC BLACK .

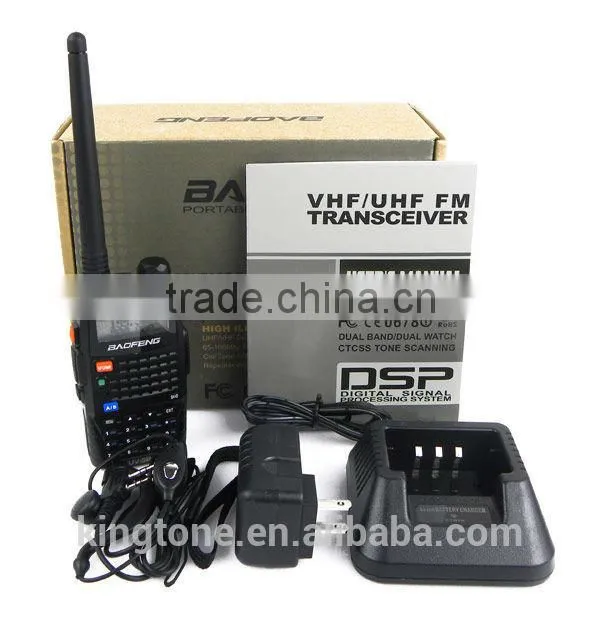

BAOFENG UV5RC handheld walkie talkies Shipping : EMS /DHL /UPS /Fedex /by Sea or by your forwarder

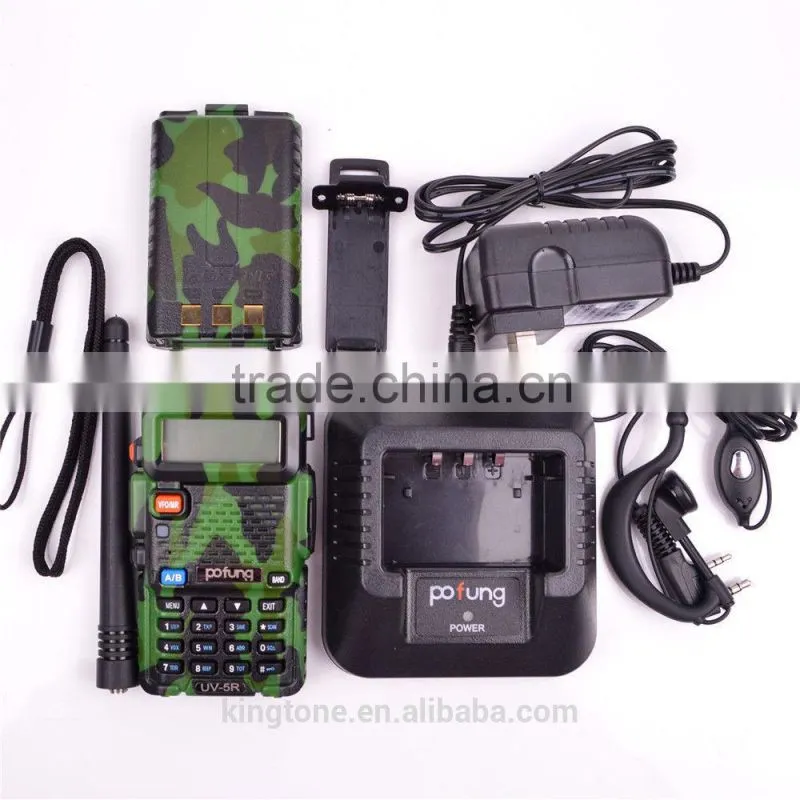

1 x baofeng UV-5RC 136-174Mhz UHF 400-520Mhz)

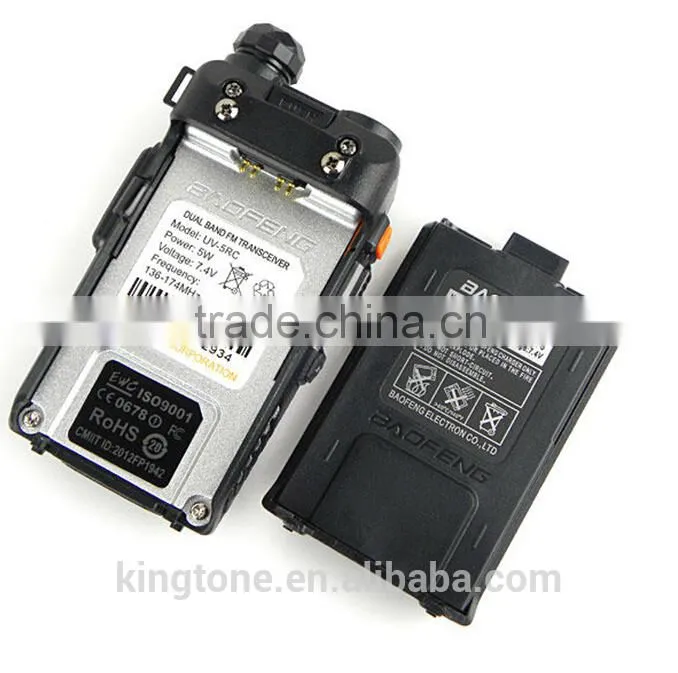

1 x 7.4V 1800mah Li-ion Battery Pack
1 x Antenna
1 x Belt Clip
1 x ENG Manual

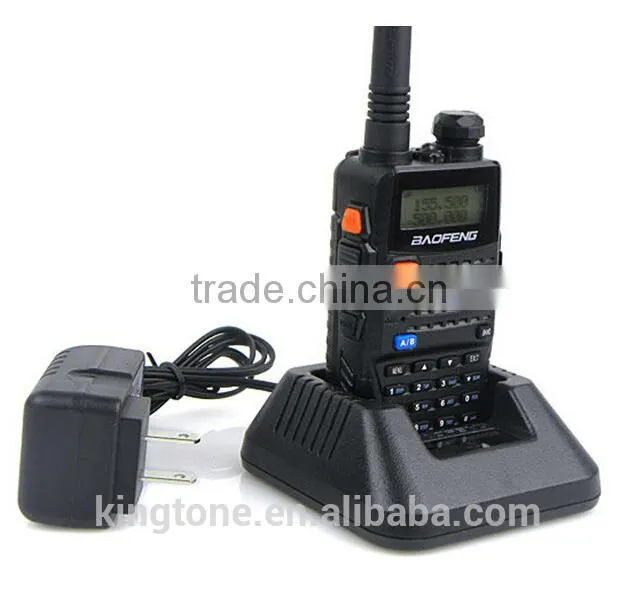

1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
1 x PTT Earpiece for free
Certificates of BAOFENG pofung UV-5R WALKIE TALKIES .
|
|
|
|
