Home > Products > Two Way Radio > BaoFeng UV5R Two Way Radio 136-174/400-520 MHz VHF/UHF Ham Radio Baofeng UV-5R
BaoFeng UV5R Two Way Radio 136-174/400-520 MHz VHF/UHF Ham Radio Baofeng UV-5R
- 10000 Set / Sets per Month
- XIAMEN
- Credit Card
- powerful fm transmitter BAOFENG BF-A5 handheld UHF 400-470MHZ two way radio
- wholesale cheap baofeng two way radio UV-5RD dual band UHF+VHF walkie talkie
- BaoFeng UV-5R 136-174&400-520MHz Dual Band FM handheld Two Way Radio,VHF/UHF Ham Radio
- 400-470MHz UHF Radio Transmitter Receiver BAOFENG BF-666S Portable Radio
- Baofeng VHF/UHF UV-5R Dual Band walkie talkie/two way radio / interphone
- Brand BAOFENG UV-B5 Dual Band VHF/UHF 5W Two way radiol Walkie Talkie B5
Product Details
Place of Origin: | Fujian, China | Brand Name: | baofeng uv-5r | Model Number: | baofeng uv-5r |
Type: | Handheld | Dimensions: | 58X32X110mm | Frequency Range: | vhf uhf 136-174mhz ,400-520mhz |
Storage Channel: | 128channels | Talk Range: | 3-5km Long range |
Packaging Details

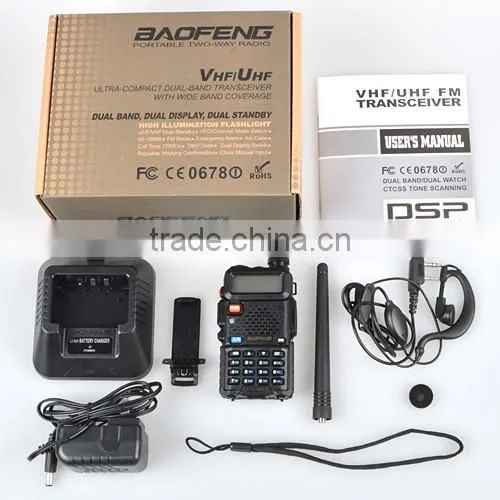

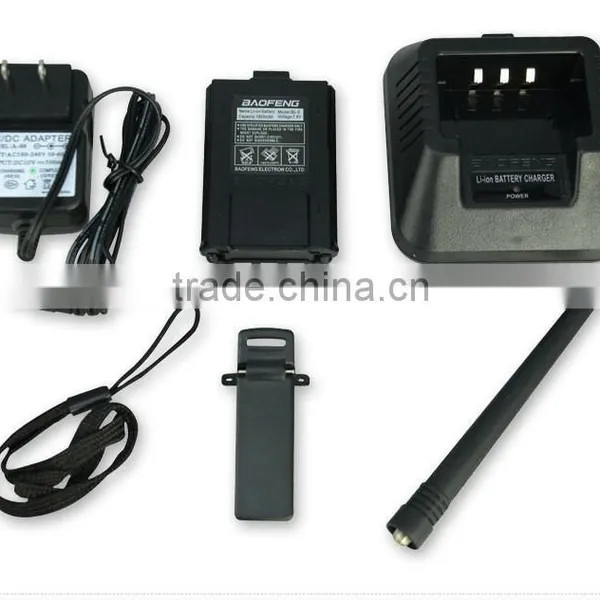

Original factory package ,each box including :1 x Portable radio baofeng uv-5r
1 x Antenna
1 x Li-ion battery pack
1 x LI-ion charger
1 x Belt clip
1 x The sling
1 x Earpiece
1 x User's manual
Product Description
BaoFeng UV5R Two Way Radio 136-174/400-520 MHz VHF/UHF Ham Radio
Baofeng UV-5R
Quick Details
Place of Origin: | Fujian, China (Mainland) | Brand Name: | Baofeng | Model Number: | UV-5R |
Type: | Handheld | Dimensions: | 109.5mm*59.5mm*34.3mm | Frequency Range: | VHF136-174MHz and UHF 400-480MHz |
Storage Channel: | 128 channels | Talk Range: | 3-5KM | Certificate: | CE,FCC |
Radio Type: | baofeng uv-5r | Antenna: | Removable | Channel Spacing: | 2.5/5/6.25/10/12.5/20/25KHz |
Output power: | 4W/1W | Battery: | Li-ion 1800mAh | Antenna Impedance: | 50Ω |
Charger: | Rapid Charger | Name: | HOT selling, CE & FCC approved two band |
Features of baofeng, baofeng uv-5r, baofeng uv5r :
baofeng uv-5r Main Functions :
1) Output : 4W/1W
2) Frequency Range: 136.00-174.00 MHz & 400.00-520.00MHz
3) Frequency Step Setting
4) High &Low Power Switchover
5) Battery Saving
6) VOX Function
7) Wide/Narrow Band Selection
8) Auto-Back Light
9) Dual Band Standby
10) Time-out Timer (TOT)
11) 50 CTCSS and 104 DCS Codes
12) Voice Prompt
13) ANI Code
14) PC or Manual Program
15) DTMF Code
16) PTT-ID
17) ATUO Keypad Lock
18) Busy Channel Lock Function
19) Dual Band, Dual Display and Dual Standby
20) Emergency Alarm
21) Priory Scanning Function
22) Relay Forwarding Confirmed (1750 HZ)
23) Low Battery Warning
24) U/V Cross Band Dual Watch
25) Dimension: 110x58x32mm
26) Packing Details: 40 Units/CTN, Carton Size: 47.5x42x50 cm
Specification of BAOFENG UV-5R Walkie talkies :
All of our items are Brand New | ||
Model | BF-UV5R | |
Dual band / dual display / dual standby | A/B band independent operation(UV UU VV) | |
128 groups channels storage | Shortcut menu operation mode | |
VFO & Memory channels scan | Emergency Alarm | |
Time-out Timer (TOT) | 0~9 grades VOX selectable | |
PTT & ANI ID | FM radio and 25 stations storage | |
Voice companding | 50 CTCSS/104 DCS | |
High/Low TX power selectable | Busy channel lock-out(BCLO) | |
DTMF function | OFF SET function | |
Wide/Narrow Band(25kHz/12.5kHz) | Yes |
|
VOX function | Yes |
|
Busy lockout function | Yes |
|
Scanning function | Yes |
|
Monitor function | Yes |
|
Time-out Timer (TOT) function | Yes |
|
LCD display | Yes |
|
Dual display | Yes |
|
Battery voltage display function | Yes |
|
Channel name display and editing functions | Yes |
|
Signal strength indicator | Yes |
|
Keypad lock function | Yes |
|
Built-in Led torch | Yes |
|
FM radio | Yes |
|
Wire clone function | Yes |
|
Emergency alarm function | Yes |
|
Low battery alarm | Yes |
|
Power saving function | Yes |
|
High/Low TX power selectable | Yes | 4W/1W |
ROGER SET | Yes |
|
Chinese and English voice prompt | Yes |
|
PC software programmable | Yes |
|
Rated Voltage | 7.4V DC±10% | |
Output power | <= 5W | |
Battery type | Li-ion battery | |
Battery capacity | 1800mAh | |
Working temperature | -20~+50°C | |
Antenna Impedance | 50ohm | |
Weight | 255g | |
Dimension(LXWXH) | 58X32X110mm(Not Antenna) | |
Frequency stability | ±2.5ppm | |
Carier wave tolerance | 5ppm | |
Modulation | 16kØF3E / 11kØF3E | |
Max frequency deviation | < 5kHz(Wide) < 2.5kHz(Narrow) | |
Modulation character | 6 dB per fold frequency patch | |
Emission current | < 1.6A(5W) | |
CTCSS / DCS | 0.5±0.1kHz(Wide) 0.3±0.1kHz(Narrow) | |
Sensitivity | < 0.16µV(12dB SINAD) | |
Silent sensitivity | < 0.2µV | |
Intermediation Distortion | <10% | |
Inter modulation | 8-12mv | |
Adjacent channel selectivity( wide/narrow) | <-65dB(Wide) <-60dB(Narrow) |

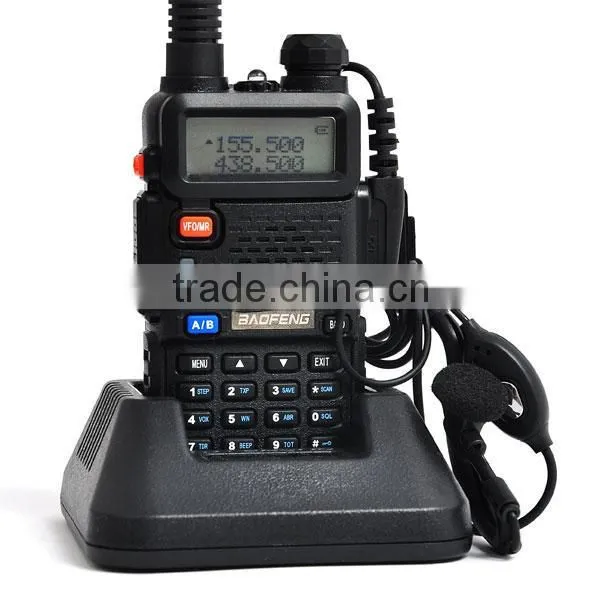

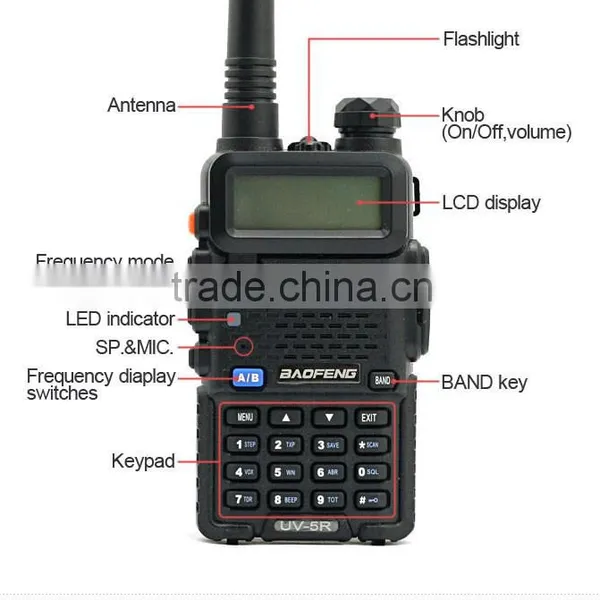

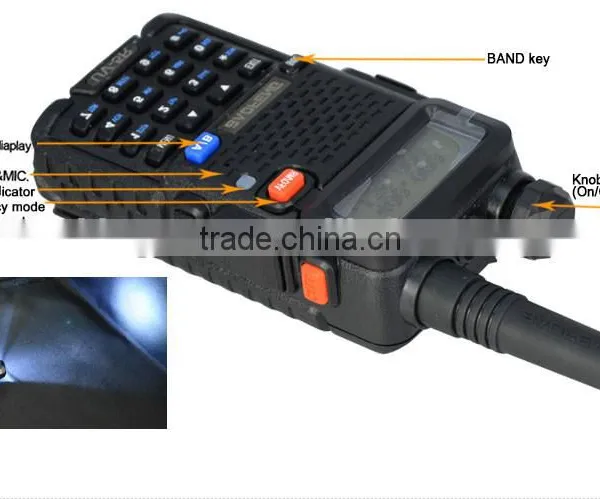

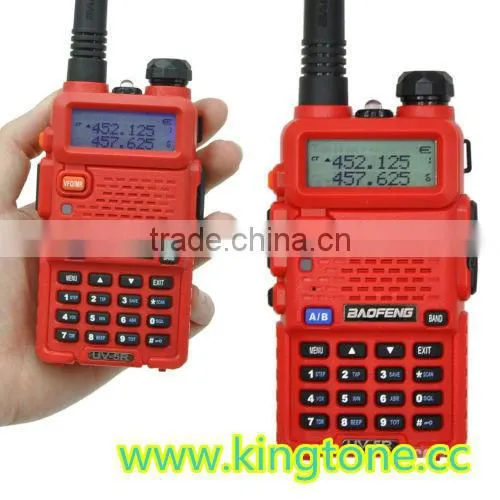

Photos of baofeng uv-5r walkie talkies :
BaoFeng UV5R Two Way Radio 136-174/400-520 MHz VHF/UHF Ham Radio Baofeng UV-5R
BaoFeng UV5R Two Way Radio 136-174/400-520 MHz VHF/UHF Ham Radio Baofeng UV-5R
BaoFeng UV5R Two Way Radio 136-174/400-520 MHz VHF/UHF Ham Radio Baofeng UV-5R
BaoFeng UV5R Two Way Radio 136-174/400-520 MHz VHF/UHF Ham Radio Baofeng UV-5R
BaoFeng UV5R Two Way Radio 136-174/400-520 MHz VHF/UHF Ham Radio Baofeng UV-5R
BaoFeng UV5R Two Way Radio 136-174/400-520 MHz VHF/UHF Ham Radio Baofeng UV-5R
BaoFeng UV5R Two Way Radio 136-174/400-520 MHz VHF/UHF Ham Radio Baofeng UV-5R
BaoFeng UV5R Two Way Radio 136-174/400-520 MHz VHF/UHF Ham Radio Baofeng UV-5R
1 x Portable radio baofeng uv-5r
1 x Antenna
1 x Li-ion battery pack
1 x LI-ion charger
1 x Belt clip
1 x The sling
1 x Earpiece
1 x User's manual
1. Q: What is MOQ(mini Order Quantity)
A: In general, it is 100pcs. According situation, it is negotiable.you can also place sample order.
2. Q: do you accept Customized?
A: yes,we did produce as customer requirement ,OEM & ODM are welcomed.MOQ of customized order should be 1000pcs
3. Q: Could you offer free sample to test?
A: Yes, sure. For regular VIP agency we offer free sample when New Products Launch,for New customer you pay the sample fee first when your Order reach required amount we minus the sample Cost for you.
4. Q: What payment terms you can accept ?
A: We support TT /Western Union /Paypal
Welcome to our website : for more updated information .
welcome you to visit our company website: , for more information .
Quanzhou Kingtone Optics & Electronics Technology Co., Ltd Add:3th Floor,Bld B,Yucheng Base, Keji Road,Fengze district ,Quanzhou ,Fujian,China. |
Tell: 86 595 28857991 Fax: 86 595 22155502 Mobile:86 13506927982 skype: cary.cao4 Web: ; |
Company Profile
Established in 2006, Kingtone is a high-tech enterprise specialized in developing, producing and selling wireless communication equipments and microwave functional module, such as Repeater for cell phone network, Mobile phone Jammer ,Handheld Transceivers, Vehicle Radio,Marine Radios etc.. Located in Quanzhou City of Fujian Province, we enjoy comfortable environment and convenient transportation. Covering an area of 1710 square meters, our factory is equiped with cutting-edge spectral analyzer, network analyzer, noise figure meter and signal generator, and operating under strict QC guidelines to guarantee high-quality products at competitive prices.
We also deal in high-quality alarm system. Our products conform to international standards, such as CE, GS, CE, EMC, UL and CSA. Meanwhile, OEM and ODM orders are welcome. We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build long and successful business relationships with us.
