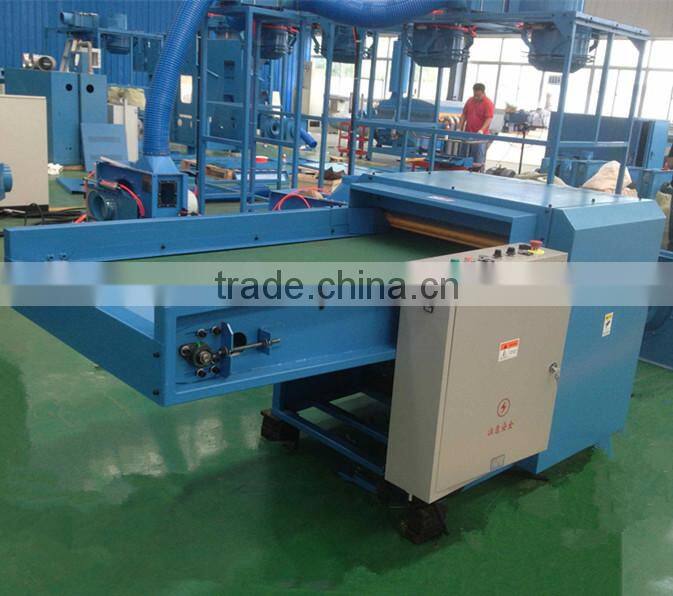

Help CenterAutomatic Polyester Fiber Wadding Machine
Related Products
-
High Capacity Polyester Fiber Pillow Filling MachineUS$ 1,000 - 40,000MOQ: 1 Unit -
Fiber Making Machine With PLC Control System / Polyester Fiber Opening Machine Fiber Bagging MachineUS$ 1,000 - 20,000MOQ: 1 Set
-
QL005A Fiber Filling Machine/ High Working Capacity / QL005A Fiber Filling Machine /US$ 1,000 - 20,000MOQ: 1 Unit
-
High Efficient Polyester Fiber Filling MachineUS$ 1,000 - 20,000MOQ: 1 Set
-
2014 NEW AutomaticPolyster Fiber Filling Machine/PLC ControlUS$ 8,000 - 30,000MOQ: 1 Set
Specifications
Automatic polyester fiber wadding machine1.high capacity 300kg/h up
2.PLC control
3.filling and packing fiber into a bag
Built time
Qingdao Lion Machinery is specialized in non-woven machinery since 2007, as a leading supplier and manufacturer of home textile machinery in China,
Main products
We are mainly working with filling machines such like line of automatic cushion filing machine, sofa filling machine and duvet filling machines, thermal bonded fiber machine, comforter filling machine and teddy bear stuffing machines.
Our automation division designs and builds some of the most innovative feeding and weighing equipments such like bale breaker weighing scale system, down feather weighing system and sofa & cushion vacuum filling system into a complete lines.
Technology and product power
All automatic systems are controlled by PLC such like Siemens, AB or other brand by the customer’s requirement; Different power condition is possibly be ordered according to the local safety standard that could meet the UL and CE rules.
We are able to supply non-standard function required by clients based on standard equipment configuration by our professional R&D team.
Market
We have exported our equipments in about 60 countries and districts over the world market and set up our agent office in Spain, Portugal and East Asia ,
Customer location:
Australia, Aruba, Armenia, Bangladesh, Brazil, Belgium, Canada, Cyprus, Columbia, Denmark,
Egypt, Estonia, Greece, Hungary, Holland, India, Italy, Indonesia, Iran, Jordan, Korea, Mexico,
Philippine, Poland, Paraguay, Russia, South Africa, Spain, Slovenia, Thailand, Turkey, UAE, UK,
USA, Chile, Vietnam, Algeria, Argentina, Saudi Arabia, Bulgaria, Dubai, Czech Republic,
Zimbabwe, Libya, Maldives, Lithuania, Lebanon, Malaysia, Macedonia, Moldova, Nigeria, New
Zealand, Portugal, Japan, Switzerland, Serbia, Cyprus, Tunisia, Venezuela, Uruguay, Singapore, Iraq.
Automatic fiber bagging machine , Fiber opening machine
Specification:
Product name |
Fiber filling machine |
Item no. |
QL005A |
Voltage |
380v 50Hz 3phase by order |
Power |
13.95kw |
Capacity |
250-320kg/h |
PLC |
Siemens PLC |
Dimension |
4950*2220*2500mm |
Weight |
1100kg |
Description:
- The fiber filling machine is mainly used for conjugate hollow siliconized polyester fiber filling into plastic and woven bags.
- The whole line is assembled by fiber opening, fiber blower and filling device.
- It is controlled by PLC control system that can be handled by 2 operators.
- Weighing system with tolerance about 500g per bag requires even raw material feeding by the operator.
- High capacity; there are 2500kg capacity in a working day. • Automatic feeding conveyer feeds the raw material automatically.
- Electronic metal alarm system;
- The rollers are made by V-wire, so that fiber opening rate can be 98% up without hurting the fiber and long life with less maintenance.
- Special roller and bearing device avoid the fiber jam into the bearings.
- Conveyer track protection system;
- CE Certification
MDF Packing
We can provide the sample service,
We provide long term and good service for our clients in 24 hours feedback.
We can provide after-sale-services in 24 hours feedback.
Payment term: 50% is paid in advance; balance should be paid in 15days after the shipping date.
Loading date: Within 30 days after receipt the advance.
Machine condition: New in 2014
Guarantee: 1year material for free; 6months for the electrical key parts; after sales service forever.
Certification: BL, CO, PL, CI,
