Green color Original BAOFENG handheld uv-5r dual band walkie talkie with CE FCC Certificate
| Packaging Detail: | Gift box packing |
| Delivery Detail: | After order confirmed 1 weeks,samples ready any time |
Specifications
uv-5r dual band
VOX ,Scanning function,
H/L TX power
Channel name displa
CE handheld uv-5r dual band
Green color Original BAOFENG handheld uv-5r dual band walkie talkie with CE FCC Certificate
Large Half Dot Matrix LCD Display
- Tri-Color LCD Illuminaton
- Dual Band dual frequency standby and Display
- 128 Channels, 3 Types Channel scan
- Priority Channel Scan
- 50 CTCSS/214DCS Encode &Decode And 1 Group User Defined CTCSS/DCS
- 8 Groups of Voice Scrambler
- Voice Compandor
- High/ Low Power Switchable
- DTMF, MSK Signaling
- Selective Call, Group Call
- Remote Kill, Group Call
- Programmable 25kHz/12.5kHz Channel Spacing
- Voice Operated Transmit VOX
- Squelch Tail Elimination
- Time Out Timer
- Crystal Audio FM Radio
Green color Original BAOFENG handheld uv-5r dual band walkie talkie with CE FCC Certificate Features
Dual band, dual display |
A/B band independent operation |
128 groups channels storage |
Shortcut menu operation mode |
VFO & Memory channels scan |
Emergency Alarm |
Tri-color background light selectable |
0~9 grades VOX selectable |
PTT & ANI ID |
FM radio and 25 stations storage |
1750Hz Brust Tone |
Time-out Timer |
Channel Monitor |
Battery Saver |
Keypad Lock |
Channel Step: 2.5/5/6.25/10/12.5/25KHz |
Low Battery Alert |
ROGER SET |
Emergency Alert |
25KHz/12.5KHz Switchable |
FM Radio (65.0MHz-108.0MHz) |
Large LCD Display |
LED Flashlight |
Hight /Low RF Power Switchable |
Voice companding |
50 CTCSS/ 104DCS coder & tone searching |
dual standby |
PC programmable |
Wide/Narrow Band(25kHz/12.5kHz) |
Transmitter time-out timer(TOT) |
High/Low TX power selectable |
Busy channel lock-out(BCLO)
|
Green color Original BAOFENG handheld uv-5r dual band walkie talkie with CE FCC Certificate
| Model:BF-UV5R Dual band cheapest walkie talkie | |
| SPECIFICATIONS | |
| GENERAL | |
| Frequency range | FM & 136-174MHZ & 400-520MHz |
| Memory channels | 128 |
| Bandwidth | Wide:25kHz;Narrow 12.5kHz |
| Frequency step | 2.5/5/6.25/10/12.5/20/25kHz |
| Operating voltage | 7.4V |
| Battery capacity | 1800mAh |
| Operate temperature range | –20°C-+60°C |
| Weight | 206g |

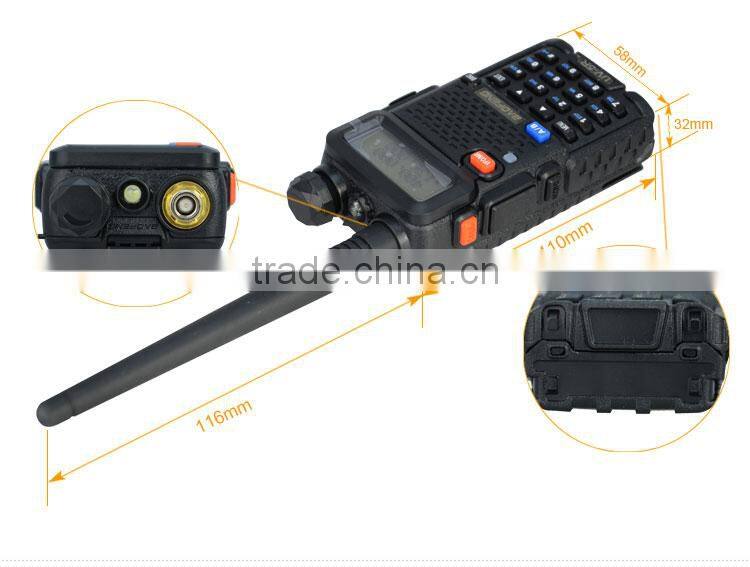

| Dimensions | 110*60*35mm |
| TRANSMITTER | |
| RF output power | H 4W/L 1W |
| Modulation | F3E |
| Spurious emission | 65dB |
| FM noise | 45dB(W)/42dB(N) |
| Audio distortion | ≤5% |
| Transmitting current | <1.3A |
| RECEIVER | |
| Sensitivity(12dB SINAD) | ≤0.20 uV |
| Selectivity | Wide:60 DB;Narrow:55dB |
| Intermodulation | ≥65dB |
| Adjacent channel sleectvity | ≥65dB |
| Spurious response | ≥60dB |
| FM noise | 45dB(W)/42dB(N) |
| Audio power output | 1000mW |
| Audio distortion | ≤5% |
| NOTE | |
| Price term | Ex-work price |
| MOQ: | 100 pcs |
| Payment: | Paypal, Western union or T/T |
| Delivery: | 3-5 working days upon payment receiving |

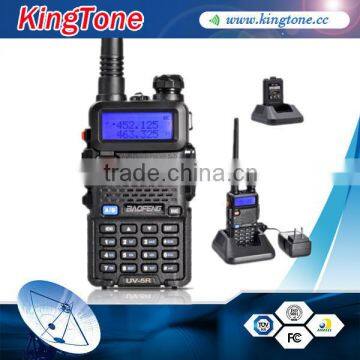

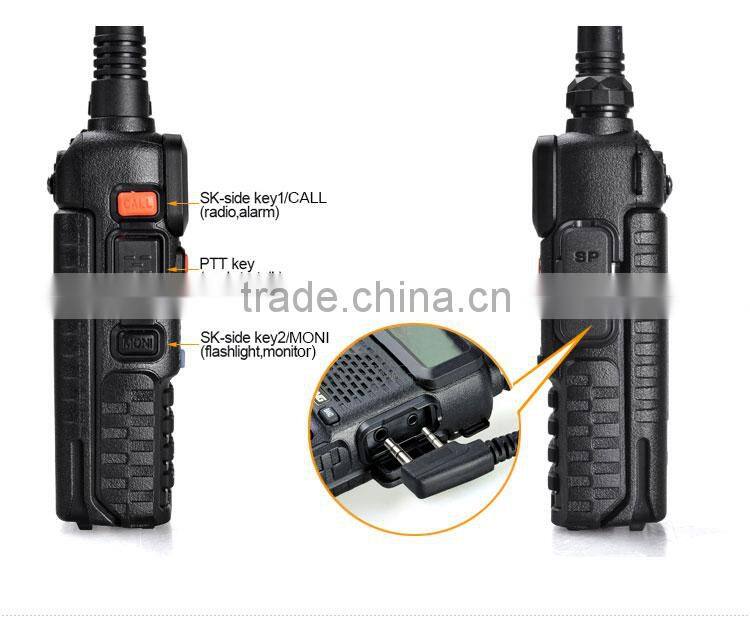

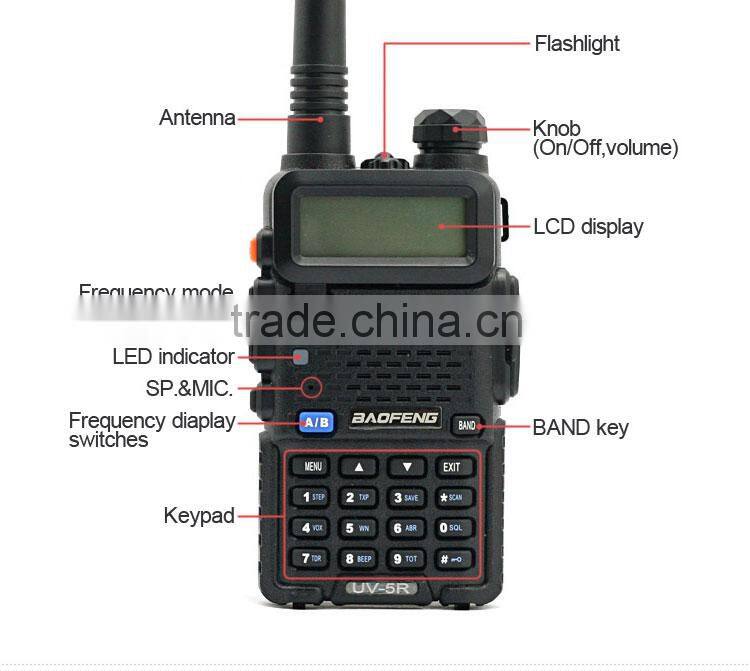

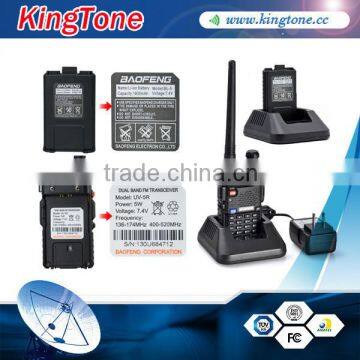

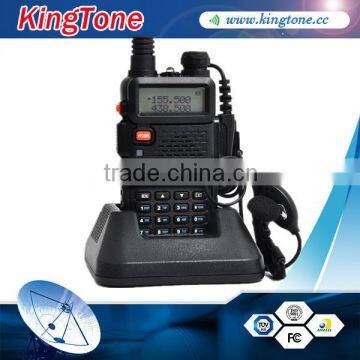

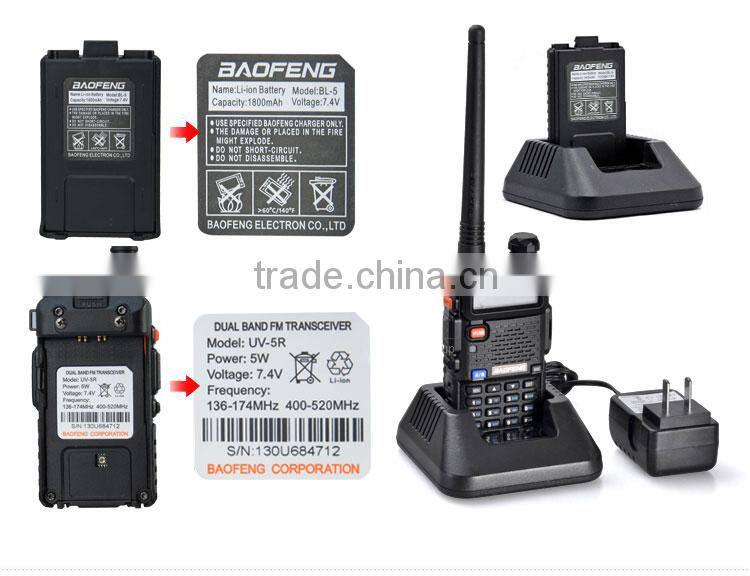

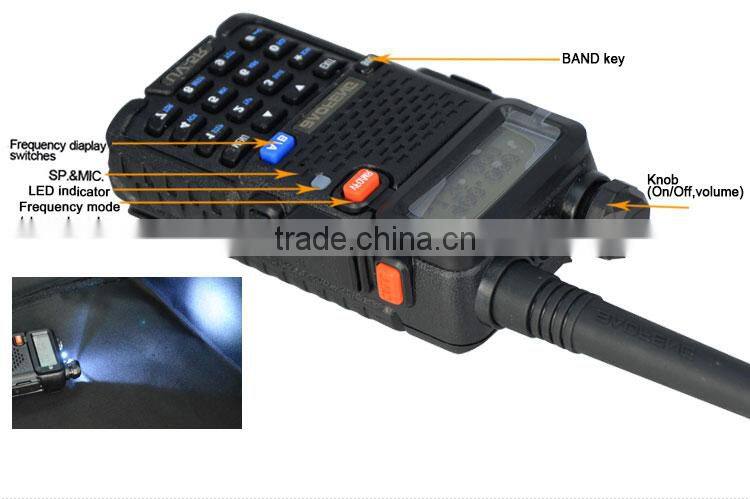

Photos of baofeng radio uv-5r :
Shipping : EMS /DHL /UPS /Fedex /by Sea/by yr forwarder

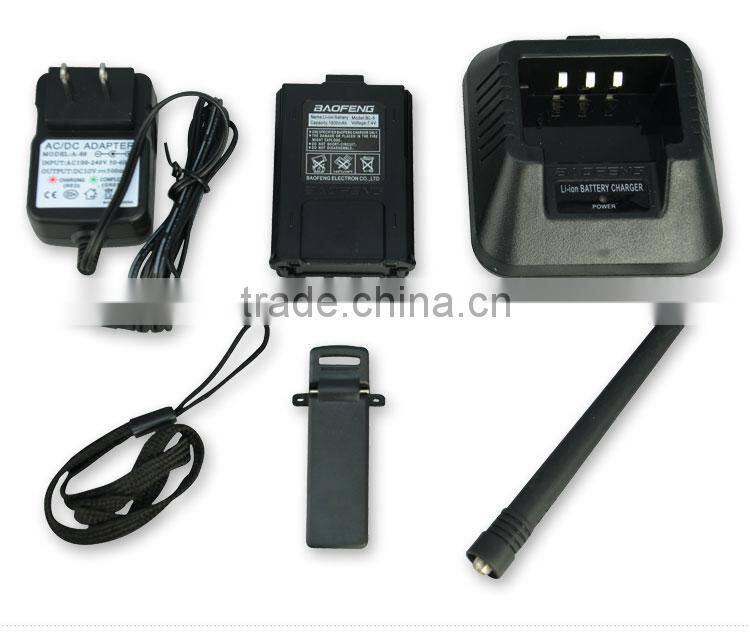

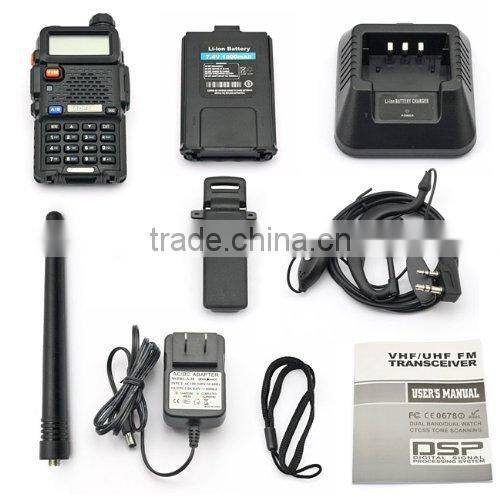

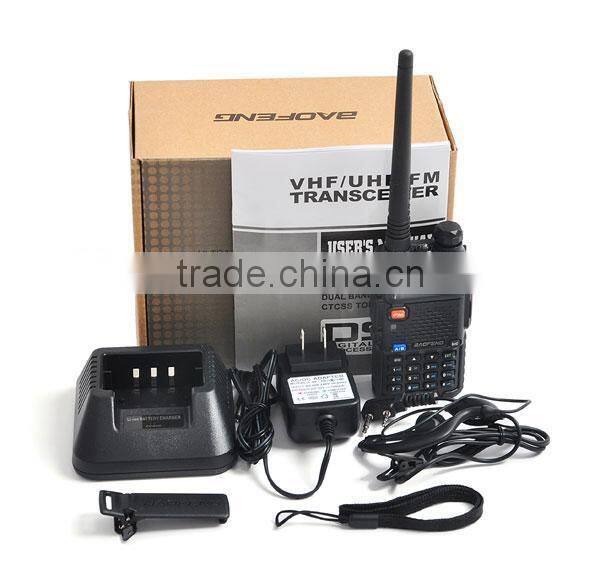

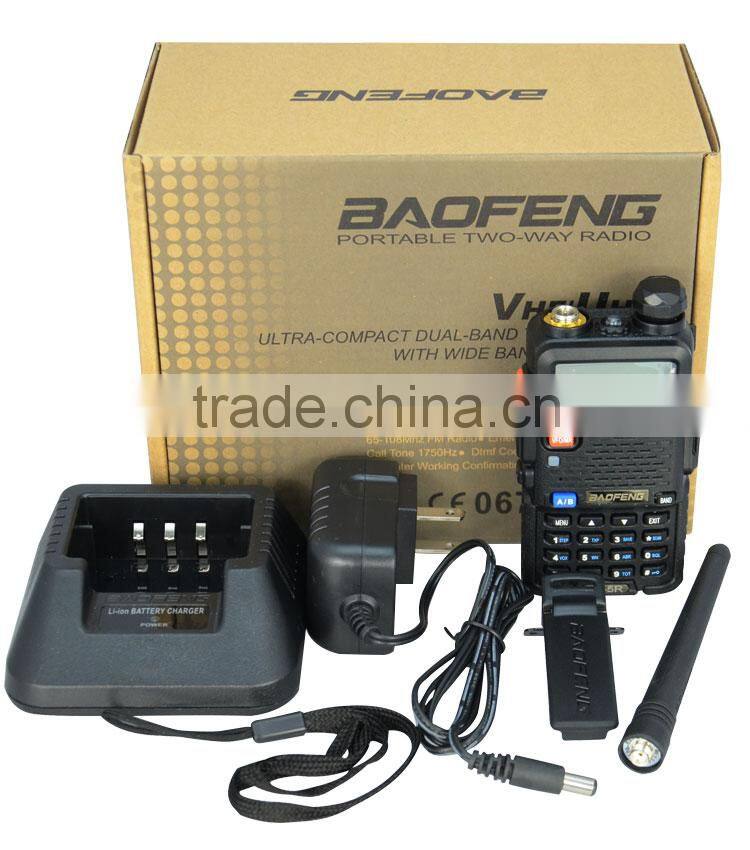

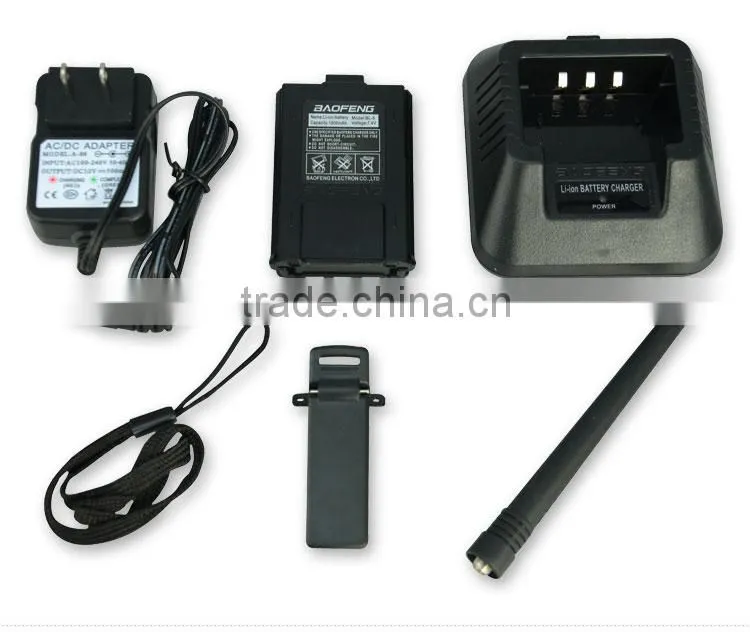

Package including:
BAOFENG UV-5R two way radio
Ac Charger (round or flat plug)
Battery (Li-ion 7.4V 1800mAh )
Antenna
Hang Strap
Belt Clip and Screw
User's Manual
Note:
1. Using rechargeable walkie-talkie for the first time, please charge for 16 hours
2.Turn off your computer before removing the battery
3. Please do not use hand to pick up the antenna, hold the antenna will affect the effective wireless intercom call range
4. Use the walkie-talkie, you should keep it vertical distance of 5.0 to 7.0 cm, and keep your face
5. Please try to use while driving handsfree speaker and the closing words
6. Keep your intercom televisions, computer monitors and other screen to maintain a distance greater than 10cm, to avoid being magnetized
7. The interphone Do things together with other metal-containing storage
8. Walkie-talkies may interfere with some hearing aids, with your hearing aid manufacturer to discuss alternatives
9. Try to place in the medical walkie-talkie off, so as not to affect the use of medical equipment
10. Do not use in airports and on aircraft. If so, prohibited driving the car to the side of the road and then
11. In potentially explosive areas must remain shut down, unless it is dedicated intercom dangerous areas (for example, Factory Mutual, CAS, or UL certified)
12. To avoid electromagnetic interference / compatibility conflicts, in some cases posted notices require you to turn off the intercom, please observe
Approved: CE/FCC
After Sales Service: 1 Year Warranty
1. Q: What is MOQ(mini Order Quantity)
A: In general, it is 100pcs. According situation, it is negotiable.you can also place sample order.
2. Q: do you accept Customized?
A: yes,we did produce as customer requirement ,OEM & ODM are welcomed.MOQ of customized order should be 1000pcs
3. Q: Could you offer free sample to test?
A: Yes, sure. For regular VIP agency we offer free sample when New Products Launch,for New customer you pay the sample fee first when your Order reach required amount we minus the sample Cost for you.
4. Q: What payment terms you can accept ?
A: We support TT /Western Union /Paypal
Welcome to our website : for more updated information .
welcome you to visit our company website: , for more information .
My contact info :
Kingtone, connecting the world seamlessly !
|
|||||
| |||||
|
