CE FCC passed two way radio BAOFENG UV-5RA UHF+VHF dual band walkie talkie

Name: CE FCC passed two way radio BAOFENG UV-5RA UHF+VHF dual band walkie talkie
Brand: Baofeng
Price: USD $1 - 30 / Set

FOB Price

USD $1 - $30 / Set

10 Sets(Min.Order)

Supply Ability 10000 Set / Sets per Month
Port XIAMEN
Payment Terms:Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Fujian, China	Brand Name:	Baofeng	Model Number:	UV-5RA
Type:	Handheld	Dimensions:	58x110x32mm	Frequency Range:	VHF:136-174mhz & UHF:400-480mhz
Storage Channel:	128	Talk Range:	5-8KM

Packaging Details

Each included charger, adaptor,antenna,battery,manual ect whole set

Product Description

Baofeng New UV 5RA Ham Two Way Radio 136-174/400-520 MHz Dual-Band DTMF CTCSS DCS FM 5W Amateur Radio Description

1. Frequency Range: 136-174MHz & 400-480MHz

2. Dual Band Display, Dual Frequency, Dual Standby

3. Output power: 5/1W

4. Channels : 128

5. 50 CTCSS / 104 DCS

6. VOX function

7. 1750Hz Tone

8. FM Radio Built-in (65.0MHz-108.0MHz)

9. LED Flashlight

10. Large LCD Display

11. High/Low RF Power Switchable

12. Emergency Alert

13. Low Battery Alert

14. Battery Save

15. Time-out Timer

16. Keypad Lock

17. Monitor Channel

18. Channel Step: 2.5/5/6.25/10/12.5/25KHz

Model: New BAOFENG UV-5RA

Color: Black

Frequency Range:

65-108MHz (FM Receive only) 136-174MHZ and 400-480HZ (TX/RX)

Channel Number: 128

Frequency Stability: ±2.5ppm

Antenna: High Gain Dual Band Antenna

Antenna Impedance: 50

Operating Voltage: DC 7.4V

Mode of operation: Simple or semi-duplex

Dimension (W x H x D): 100 x 52 x 32 mm

Weight: 250g (including battery, antenna)

Transmitter Output power: 4W / 1W (Max 5W)

Modulation Mode: 16k F3E / 11k F3E

Maximum deviation: <5kHz(Wide) / <2.5kHz(Narrow)

Spurious Radiation: <7 W

Adjacent Ch. power: <=-65dB(Wide) / <=-60dB(Narrow)

Pre-emphasis characteristics: 6dB

Current: <=1.6A(5W)

CTCSS/DCS deviation: 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)

Intermediation sensitivity: 8-12mv

Intermediation distortion: <10%

Features:

This BAOFENG UV-5RA transceiver is a micro-miniature multi band FM transceiver with extensive receive frequency coverage, providing local-area two-way amateur communications along with unmatched monitoring capability.

* 25KHz/12.5KHz Switchable

* Frequency Range: 136-174 / 400-480MHz

* 128 groups Channels 50 CTCSS and 104 CDCSS

* Channel Step: 2.5/5/6.25/10/12.5/25KHz

* Dual-Band Display, Dual Frequency Display, Dual-Standby; A/B band independent operation

Package Include:

* 1x UV-5RA (VHF136174 UHF 400-480Mhz)

* 1x 7.4V 1800mahLi-ion Battery Pack

* 1x Antenna 400-480Mhz

* 1x Belt Clip

* 1x Earset Mic

* 1x English Manual

* 1x Desktop Charger ( 110V ~ 240V )

* 1x FREE EARPHONE

Technology Specification

Hot Spots
Dual band / dual display / dual standby	A/B band independent operation(UV UU VV)
128 groups channels storage	Shortcut menu operation mode
VFO & Memory channels scan	Emergency Alarm
Time-out Timer (TOT)	0~9 grades VOX selectable
PTT & ANI ID	FM radio and 25 stations storage
Voice commanding	50 CTCSS/104 DCS
High/Low TX power selectable	Busy channel lock-out(BCLO)
DTMF function	OFF SET function
Wide/Narrow Band(25kHz/12.5kHz)	Yes
VOX function	Yes
Busy lockout function	Yes
Frequency step	Yes	2.5/5/6.25/10/12.5/25KHz
Scanning function	Yes
Monitor function	Yes
Time-out Timer (TOT) function	Yes
LCD display	Yes
Dual display	Yes
Battery voltage display	Yes
Channel name display editing	Yes
Signal strength indicator	Yes
Keypad lock function	Yes
Built-in Led torch	Yes
FM radio	Yes
Wire clone function	Yes
Emergency alarm function	Yes
Low battery alarm	Yes
Power saving function	Yes
High/Low TX power selectable	Yes	5W/1W
ROGER SET	Yes
Chinese English voice prompt	Yes
PC software programmable	Yes
Rated Voltage	7.4V DC±10%
Output power	≤ 5W
Battery type	Li-ion battery
Battery capacity	1800mAh
Working temperature	-20~+50°C
Antenna Impedance	50Ω
Weight	255g
Dimension(L×W×H)	58×32×110mm(Not Antenna)
Specification
Frequency stability	±2.5ppm
Carier wave tolerance	5ppm
Modulation	16kΦF3E / 11kΦF3E
Max frequency deviation	< 5kHz(Wide) < 2.5kHz(Narrow)
Modulation character	6 dB per fold frequency patch
Emission current	< 1.6A(5W)
CTCSS / DCS	0.5±0.1kHz(Wide) 0.3±0.1kHz(Narrow)
Sensitivity	< 0.16μV(12dB SINAD)
Silent sensitivity	< 0.2μV
Intermediation Distortion	<10%
Inter modulation	8-12mv
Adjacent channel selectivity( wide/narrow)	<-65dB(Wide) <-60dB(Narrow)

Warranty

Radio for 1 year, Accessories for 6 months

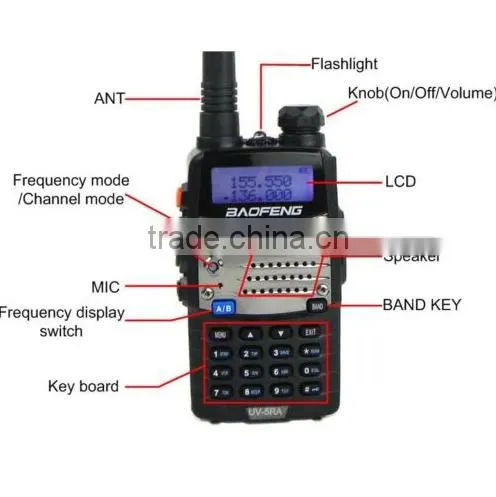

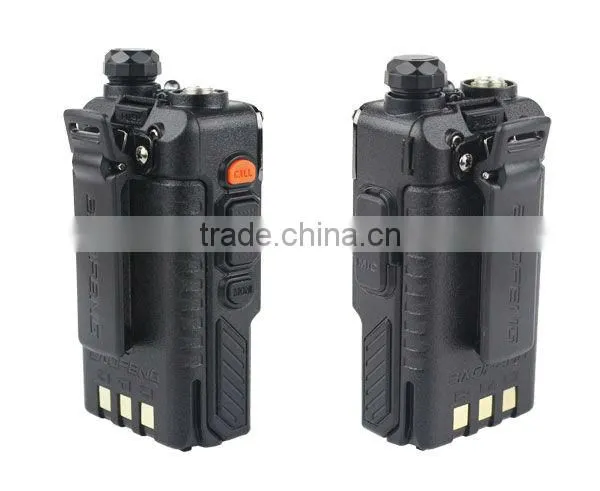

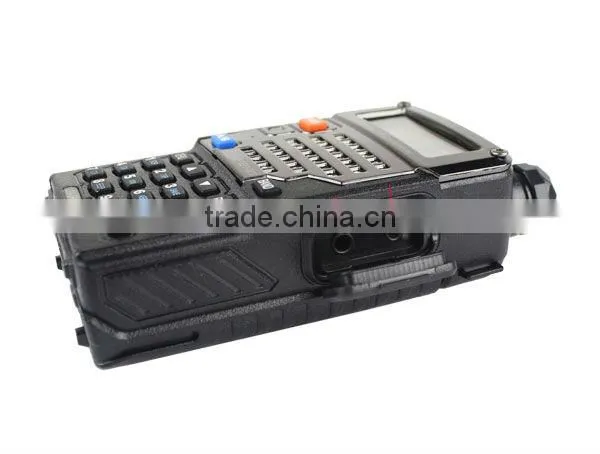

Photos of BAOFENG UV-5RA :

Packaging & Shipping

optional accessories

optional accessories of baofeng radios:

USB computer interface cable
PTT handheld Mic/speaker microphone
6 x AAA Battery Case
6 x AA Battery Case
12VDC Battery Eliminator

USB computer interface cable

PTT handheld Mic

6 x AAA Battery Case

6 x AA Battery Case

12VDC Battery Eliminator

Walkie talki Service

Note:
1. Using rechargeable walkie-talkie for the first time, please charge for 16 hours
2.Turn off your computer before removing the battery
3. Please do not use hand to pick up the antenna, hold the antenna will affect the effective wireless intercom call range
4. Use the walkie-talkie, you should keep it vertical distance of 5.0 to 7.0 cm, and keep your face
5. Please try to use while driving handsfree speaker and the closing words
6. Keep your intercom televisions, computer monitors and other screen to maintain a distance greater than 10cm, to avoid being magnetized
7. The interphone Do things together with other metal-containing storage
8. Walkie-talkies may interfere with some hearing aids, with your hearing aid manufacturer to discuss alternatives
9. Try to place in the medical walkie-talkie off, so as not to affect the use of medical equipment
10. Do not use in airports and on aircraft. If so, prohibited driving the car to the side of the road and then
11. In potentially explosive areas must remain shut down, unless it is dedicated intercom dangerous areas (for example, Factory Mutual, CAS, or UL certified)
12. To avoid electromagnetic interference / compatibility conflicts, in some cases posted notices require you to turn off the intercom, please observe

Approved: CE/FCC

After Sales Service: 1 Year Warranty
